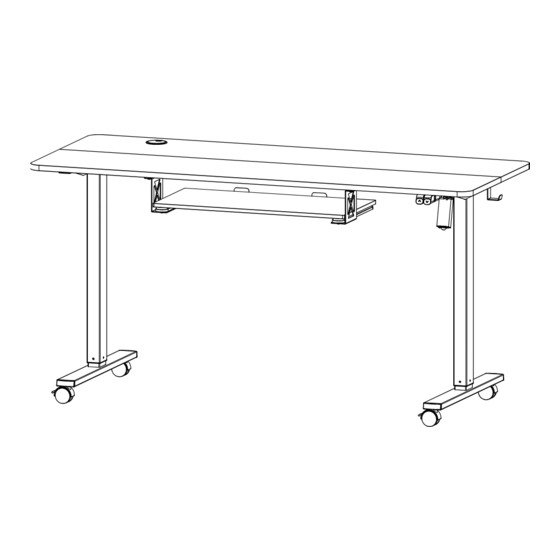

Black 60" x 24" Mobile Electric Desk with 2 Hooks &
Keyboard Tray
Instruction Manual
SKU: DESK-E-P60KB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e-p60kb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E-P60KB
Summary of Contents for Vivo DESK-E-P60KB
- Page 1 Black 60" x 24" Mobile Electric Desk with 2 Hooks & Keyboard Tray Instruction Manual SKU: DESK-E-P60KB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e-p60kb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (80kg) Level Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Place Front Desktop (C) and Back Desktop (D) upside down on a clean flat surface. Insert Wooden Dowels (O) into the holes in both desktops and slide them together. - Page 4 STEP 2 Assemble Crossbar (H) to Leg (A) and Motorized Leg (B) using M8x50mm Screw (S-B) and 5mm Allen Wrench (T-B). STEP 3 Mount Side Brackets (E) to the frame assembly using M8x16mm Screws (S-C) and 5mm Allen Wrench (T-B).
- Page 5 STEP 4 Place the frame assembly upside down and assemble Feet (F) to Leg (A) and Motorized Leg (B) using M6x35mm Screws (S-D) and 5mm Allen Wrench (T-B). STEP 5 If desired, the foot pads on Feet (F) can be reaplced with Casters (U). Unscrew the pads and thread Casters (U) onto Feet (F) using Wrench (T-A).
- Page 6 STEP 6 Place Tray (I) over Crossbar (H). STEP 7 Loosen the knobs on Sync Rod (G) using Wrench (T-C) Retaining Ring and extend the hex shaft. Insert the hex shaft into Leg (A), making sure the metal retaining ring makes contact with the leg.
- Page 7 STEP 8 Secure the frame assembly to the desktop using M6x14mm Screws (S-E) and a Phillips screwdriver. STEP 9 Assemble Control Panel (K) to Front Desktop (C) using ST4.2x13mm Screws (S-A) and a Phillips screwdriver.
- Page 8 STEP 10 Plug the cable from Motorized Leg (B) into Control Panel (K). STEP 11 Connect AC Adapter (J) to Control Panel (K).
- Page 9 STEP 12 Plug Power Cable (L) into AC Adapter (J). STEP 13 Place AC Adapter (J) in Tray (I). STEP 14 Assemble Keyboard Stops (R) to Keyboard Tray (T) using ST4.2x9.5mm Screws (S-F) and a Phillips screwdriver.
- Page 10 STEP 15 Secure Keyboard Brackets (S) to Keyboard Tray (T) using M5x10mm Screws (S-G) and a Phillips screwdriver. STEP 16 Assemble Keyboard Brackets (S) to Front Desktop (C) using M6x14mm Screws (S-E) and a Phillips screwdriver. STEP 17 Remove adhesive backing from Cable Clips (Q) and apply them to the underside of the desktop assembly.
- Page 11 STEP 18 Insert Cable Managment Cover (P) into the top of Back Desktop (D). Plug Power Cable (L) into an AC outlet. STEP 19 NOTE: The desk must be reset before operation. Press and hold the down arrow untill the desk reaches its lowest height and rebounds Reset slightly.
- Page 12 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
