AAA2002 / KCP96VI

Advertisement

Table of Contents
loading

Related Manuals for mastro KCP96 V

Summary of Contents for mastro KCP96 V

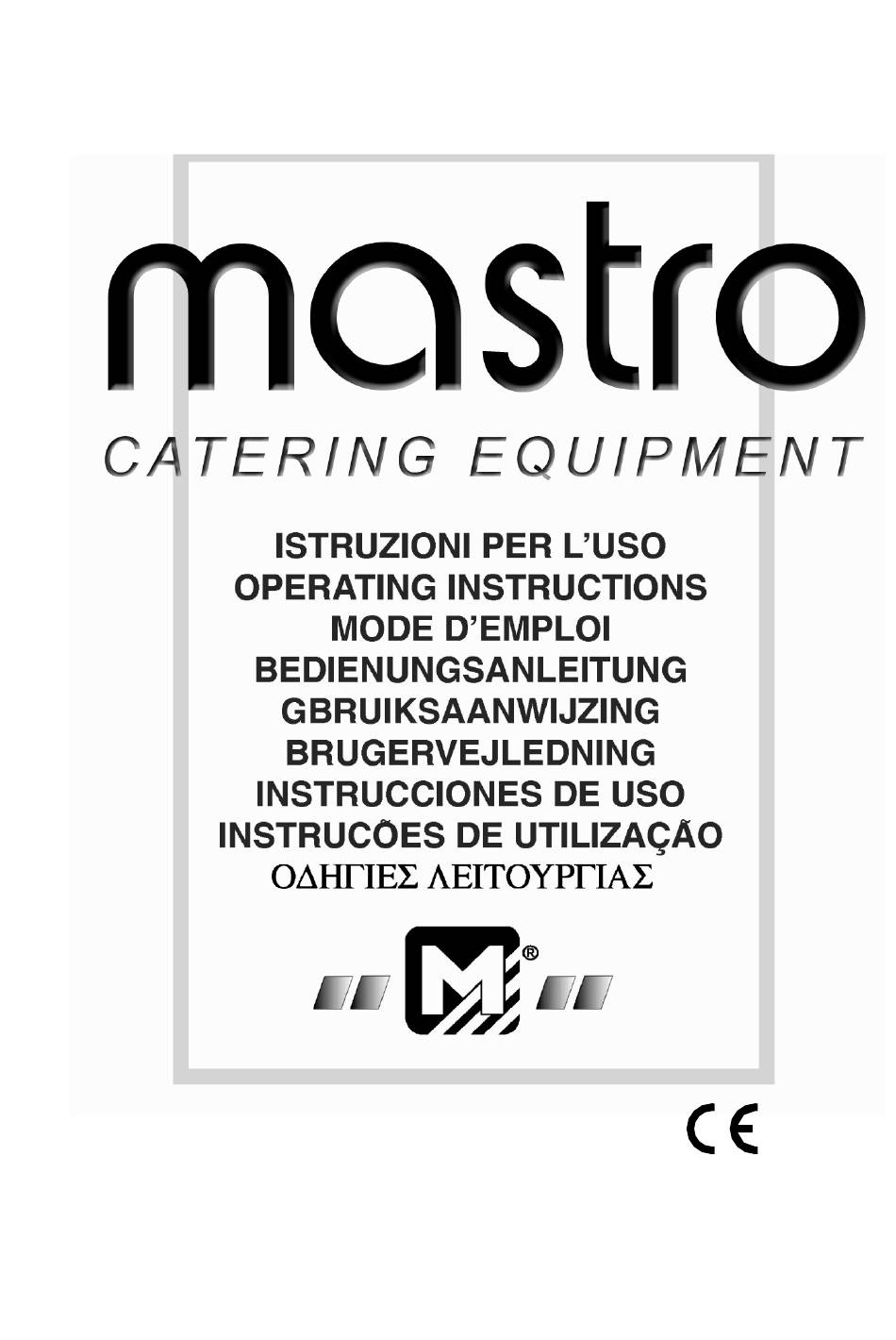

  • Page 1 AAA2002 / KCP96VI...
  • Page 2 Index General warnings Flush fitting in unit furniture Instructions for installer Gas connection Electrical connection Adapting cook-top to different types of gas Instructions for use Cleaning and maintenance Wiring layout Technical assistance and original spare parts List of spare parts The Guarantee _ CATEGORY II2H3+ _ GB __ _____________________________________________________ page 5 _...

  • Page 3: General Warnings

    35012 CAMPOSAMPIERO ADJUSTED: GB; G20; 2H; 20 mbar PADOVA (ITALY) IT-ES-GB-PT-IE-CH II2H3+ G20-G30/G31 20 ; 28-30/37 mbar G20= 1358.44 l /h MOD.: KCP96 V KCP96 VS II2ELL3B/P G20-G25-G30/G31 20; 20; 50/50 mbar G25= 1578.07 l / h II2H3+ G20-G30/G31 20; 30/37 mbar G30= 1037.12 g / h...

  • Page 4: Flush Fitting In Unit Furniture

    Technical specifications Model KCP96 V KCP5 96 V KC 96 V KC 96 M KCR 96 V KCP96 VS KCP5 96 VS KC 96 VS KC 96 MS Overall dimensions LxDxH (mm) 900x600x850 Oven dimensions LxDxH (mm) 510x410x345 510x410x315 Usable oven volume...
  • Page 5 and maintenance of the appliance, to safeguard your safety as well as to obtain the very best performance from the characteristics of the appliance. General information - To install and use any electric appliance a few fundamental rules must be respected. This appliance must be installed by specialised personnel in accordance with the regulations in force.

  • Page 6: Gas Connection

    Residual risks Keep away from the appliance unskilled personel. With hot oven, open the door carefully in order to avoid violent hot fumes exit, that my cause burning. The appliance contains electrical parts and must never be washed with a jet of water or steam.
  • Page 7 Connection of power cable Mod. KCP96 V - KCP96 VS – KCR 96 V - The terminal board is on the rear panel of the appliance. Open the terminal board cover by obtaining leverage with a screwdriver on the two side fins.

  • Page 8: Adapting Cook-Top To Different Types Of Gas

    6. Adapting cook-top to different types of gas Mod. KCP96 V – KCP96 VS – KCP5 96 V – KCP5 96 VS To adapt the hob to a type of gas that differs from the one tested in the factory (see data plate...
  • Page 9 Remove the pot support grids from the cook-top and remove the mobile parts of the burners from their position. By means of the tool provided, unscrew the threaded ferrules “A” (Fig. 3) securing the burners to the cook-top. Remove the chromium plated rings “B” ensuring not to damage the cables connected to the ignition plugs.
  • Page 10 finished adjusting the by-pass valve, seal it with red paint. Make sure you fit a plate with the new installation data. After having set the by-pass screw, seal it with red varnish. Gas pressure (mbar) Type of gas Normal Max. Min.
  • Page 11 Warning - The pots used on the cook-top burners should not have a concave or convex base but rather, a full base (Fig. 8). They should have the following minimum diameter: Mod. KCP96 V – KCP96 VS – KCP5 96 V – KCP5 96 VS 180 mm for the ‘semi-fast’ burner (front right burner);...
  • Page 12 The semi-fast burner is equipped with a reduction grid onto which a container can be located, having a 120 mm or smaller diameter. Fig. 8 We advise against the long use of grill and plate for similar cooking way. During the functioning of burners, they could overheat the panrest grill by damaging the protecting enamal in irreparable way.
  • Page 13 Key to symbols = Inside-oven light Defreezing Grill heating element FUNCTIONS SELECTOR KNOB Top and bottom (only for KC 96 M – KC 96 MS) heating element (Fig. 11) Bottom heating Selects the type of heating most element suitable for different cooking requirements.
  • Page 14 - Mod. KCP96 V – KCP96 VS – KCP5 96 V – KCP5 96 VS – KC 96 V – KC 96 VS – KCR 96 V Convection cooking - Turn the selector knob (Fig. 10) in line with the required temperature.
  • Page 15 - Mod. KC 96 M – KC 96 MS Traditional cooking - Turn on the appliance. Turn the selector knobs (Fig. 11) to symbol and by the thermostat (Fig. 12) to the required temperature. If you want a different temperature at the top or bottom, turn the selector knob in line with the symbol Cooking on the grill - Turn on the appliance.
  • Page 16 Oven door - To clean the oven door thoroughly, proceed as follows: fully open the door; hook the rings “A” onto the hinge seats (Fig. 13); lift the door gently and withdraw it (Fig. 14). Fig. 13 Fig. 14 Fig. 15 Replacing oven lamp - Electrically switch off the appliance.

  • Page 17: Wiring Layout

    9. Wiring layout WIRING LAYOUT MOD. KCP96 V – KCP96 VS – KCR 96 V Power terminal board V1-V2 Radial motoventilators Safety thermostat R2-R3 Circular heating elements 1200W Control thermostat Grill heating element 2500W A.T. ignition device Black wire Push-button switch...
  • Page 18 WIRING LAYOUT MOD. KCP5 96 V – KCP5 96 VS – KC 96 V – KC 96 VS Power supply terminal board B2-B3 Relay coil Safety thermostat V1-V2 Radial motoventilators Control thermostat R1-R2 Circular heating elements 2500W A.T. ignition device Grill heating element 2500W Push-button switch Black wire...
  • Page 19 WIRING LAYOUT MOD. KC 96 M – KC 96 MS Power terminal board R1-R2 Circular heating elements 2500W Safety thermostat Grill heating element 2500W Control thermostat Lower heating element 2000W A.T. ignition device Upper heating element 1200W Switch - A.T. ignition device Black wire Door microswitch Brown wire...
  • Page 20 10. Technical assistance and original spare parts Before leaving the factory, this appliance was tested and set up by expert, specialised personnel, to ensure best operating results. Any eventual assistance or regulation must be done with maximal care and attention, using original spare parts. For this reason it is necessary to apply to the distributor that has done the sale, specifying the type of inconvenience and model of the appliance purchased.

  • Page 21: List Of Spare Parts

    11. List of spare parts COMPONENT KCP96 V_VS KCP5 96 V_VS KC 96 V_VS KC 96 M_MS KCR 96 V Small open fire burner ----- ----- 01980828700 01980828700 01980828700 (2700 W, semi-fast) Medium open fire burner ----- ----- 01980838700 01980838700 01980838700 (3100 W, fast) Large open fire burner...
  • Page 22 COMPONENT KCP96 V_VS KCP5 96 V_VS KC 96 V_VS KC 96 M_MS KCR 96 V Cock with valve for gas semi-fast burner 01991628700 01991628700 01991628700 01991628700 01991628700 Cock with valve for gas fast burner 01991578700 01991578700 01991578700 01991578700 01991578700 Cock with valve for gas triple crown 01991608700 01991608700 01991608700...
  • Page 23 _ TE 12. The Guarantee Your new appliance is covered by guarantee. The relevant guarantee certificate is annexed to this handbook. To implement the guarantee send part B of the certificate duly compiled by and not late than 8 days from the date of purchase of the appliance (otherwise the appliance cannot be covered by a legal guarantee).
