INSTALLATION MANUAL

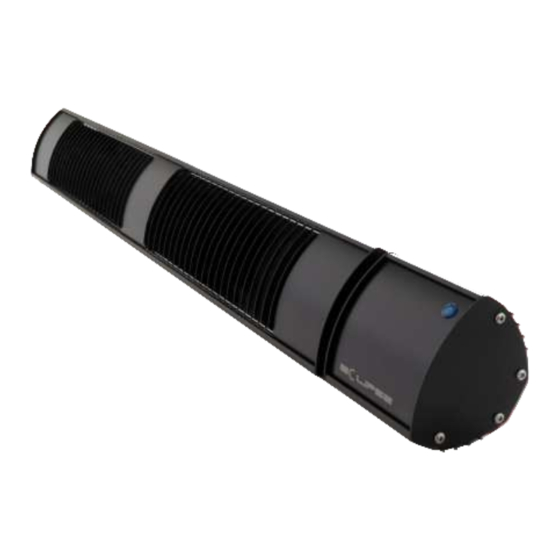

Electric zero glow ceramic infrared Heater
Model Eclipse
Please note:
Eclipse heaters are predominantly designed and manufactured for indoor use
and should be used in conjunction with energy saving controls to comply with
EU2015/118.
These heaters may be used outdoors, however it is recommended they are
IPX4
used in sheltered/semi-enclosed areas.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Space-Ray Eclipse
Summary of Contents for Space-Ray Eclipse
- Page 1 Electric zero glow ceramic infrared Heater Model Eclipse Please note: Eclipse heaters are predominantly designed and manufactured for indoor use and should be used in conjunction with energy saving controls to comply with EU2015/118. These heaters may be used outdoors, however it is recommended they are IPX4 used in sheltered/semi-enclosed areas.
-
Page 2: Table Of Contents
Content Important Introduction Specification Dimensions Installation Mounting 4.1.1 Wall mounting 4.1.2 Wall mounting bracket dimensions Chain suspension Maintenance Replacing ceramic emitter Heater failure Recycling information Declaration of conformity... -
Page 3: Important
1. Important Do not cover or obstruct the heater while it is in • CAUTION! When using Spaceray electric heaters, basic precautions should always be followed to reduce the risk use. of fire, electric shock, and injury to persons, including the following: •... -
Page 4: Introduction
- 300mm Quad 4. Installation All Eclipse models are fitted with 3m of supply cable and a 3-pin plug. For permenent connection it is unnecessary to open the terminal wiring enclosure, in order to carry out installation of this product. -
Page 5: Wall Mounting Bracket Dimensions
4no Holes adjusting the position. Fig. D 4.2 Chain suspension Floor Level Eclipse heaters can be chain hung from a ceiling. Fig. E • When ceiling hanging the Eclipse heater, ensure 5. Maintenance the minimum distance from the ceiling is adhered 5.1 Replacing a ceramic emitter... - Page 6 guards go. See Fig. J. Fig. J Locate the 2 × Phillips screws either side of the Fig. F ceramic emitter and remove (ideally with a magnetic tipped screwdriver which will also aid Slide the front trim piece out of the body noting refitting) and take care to retain the spring/split which channel it is contained within (for refitting).
-
Page 7: Heater Failure
For more detailed information about recycling of this product, please contact your local council or your household waste disposal service. 6. Declaration of conformity The manufacturer hereby confirms that the Eclipse heaters comply with the harmonised standards and stipulations quoted below: EN 60335-2-30:2009+A11:12 Fig. - Page 8 ® Tel: +44(0)1473 830 551 Fax: +44(0)1473 832055 www.spaceray.co.uk info@spaceray.co.uk Gas Fired Products (UK) Ltd Chapel Lane Claydon Ipswich Suffolk, IP6 0JL FACTORIES: IPSWICH, ENGLAND - CHARLOTTE, N.C, U.S.A Eclipse Manual December 2022...
