Space-Ray RSTP15C Submittal Data

Space-Ray RSTP15C Submittal Data

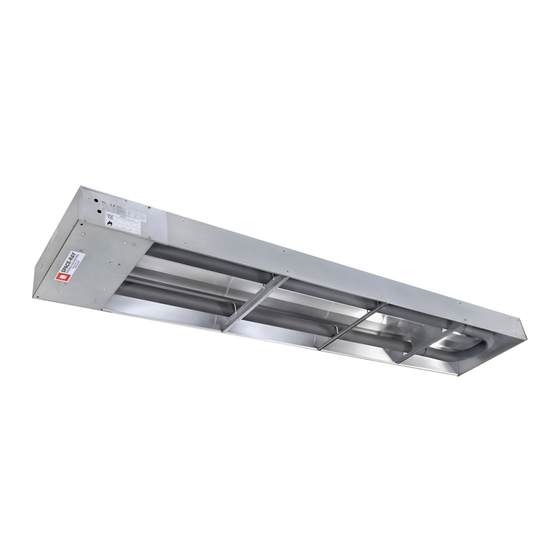

Infrared radiant tube heater

Advertisement

Quick Links

RSTP15C
(CHECK ONE)
RSTP17C
PROJECT:
ARCHITECT/ENGINEER:
CONTRACTOR:
SUBMITTED BY:
Chain Mounting Kit
Thermostat
Gas Pressure Regulator
Gas Shut-Off Valve
"L" Bracket
Submittal ♦ RSTP
INFRARED RADIANT TUBE HEATER
NAME:
ADDRESS:
NAME:
ADDRESS:
NAME:
ADDRESS:
EQUIPMENT USED:
ACCESSORIES:

NATURAL GAS

(CHECK ONE)
PROPANE GAS
Vent Cap
Indoor Unvented Kit
Outdoor Kit
Other
Other
DATE:
Jun-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSTP15C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Space-Ray RSTP15C

  • Page 1: Natural Gas

    INFRARED RADIANT TUBE HEATER RSTP15C NATURAL GAS (CHECK ONE) (CHECK ONE) RSTP17C PROPANE GAS DATE: NAME: PROJECT: ADDRESS: NAME: ARCHITECT/ENGINEER: ADDRESS: NAME: CONTRACTOR: ADDRESS: SUBMITTED BY: EQUIPMENT USED: ACCESSORIES: Chain Mounting Kit Vent Cap Thermostat Indoor Unvented Kit Gas Pressure Regulator...
  • Page 2: General Information

    Although these heaters may be used in many applications other than space heating (e.g., process heating), Space-Ray will not recognize the warranty for any use other than space heating. This heater is for Indoor or Outdoor Installation and can be used in either Vented or Unvented mode. The term Unvented actually means Indirect Vented.
  • Page 3: Minimum Clearances To Combustibles

    NFPA54 requires that the installer must post signs that will “specify the maximum permissible stacking height to maintain the required clearances from the heater to combustibles.” Space-Ray recommends posting these signs adjacent to the heater thermostat or other suitable location that will provide enhanced visibility.
  • Page 4 DIMENSIONS Submittal ♦ RSTP Jun-10...
  • Page 5: Accessory Packages

    ACCESSORY PACKAGES Indoor Unvented Kit, Part #42406000 Contains: Exhaust Hood, #42401000……QTY–1 #10-24 x 3/8 Screws, #02168010……QTY–2 Form, #42407000……QTY–1 Exhaust Hood Outdoor Kit, Part #42411000 Contains: Exhaust Hood, #42401000……QTY–1 Inlet Air Hood, #42408000……QTY–1 Foam Strip, #42001040……QTY–1 #10-24 x 3/8 Screws, #02168010……QTY–4 Form, #42412000……QTY–1 Inlet Air Hood “L”...
  • Page 6: Gas Connections

    GAS CONNECTIONS Submittal ♦ RSTP Jun-10...
  • Page 7: Gas Pressure Table

    GAS PRESSURE TABLE GAS PRESSURE TABLE SUPPLY PRESSURE GAS TYPE MANIFOLD PRESSURE Minimum* Maximum Natural Gas 3.5” W.C. 7” W.C. 14” W.C. Propane Gas 10.0” W.C. 11” W.C. 14” W.C.  Minimum permissible gas supply pressure for purpose of input adjustment. This appliance is equipped with a step-opening, combination gas valve.
  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS THERMOSTAT CONNECTIONS A. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT B. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – MULTIPLE HEATERS PER THERMOSTAT Submittal ♦ RSTP Jun-10...
  • Page 9 C. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT D. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – MULTIPLE HEATERS PER THERMOSTAT Submittal ♦ RSTP Jun-10...
  • Page 10 VENTING A. BASIC FLUE VENTING — Venting must comply with the latest edition of the National Fuel Gas Code (ANSI Z223.1-latest edition) or the authority having jurisdiction. Other venting references are in the equipment volume of the ASHRAE Handbook. VENT SIZING TABLE — Multiple Heater Venting Number of Heaters RSTP15 and RSTP17 6”...
  • Page 11 SINGLE HEATER VENTING (HORIZONTAL THROUGH SIDEWALL) When venting the heater horizontally through a combustible outside sidewall, the same requirements listed previously for venting Vertical Through The Roof apply except as follows: 1. A vent passing through a combustible wall must pass through an approved clearance thimble (Air-Jet #4VT or Ameri-Vent #4EWT or other thimbles) that are listed by a nationally recognized testing agency.
  • Page 12 MULTIPLE HEATER VENTING (CONNECTIONS INTO A COMMON VENT OR MANIFOLD) Requirements for venting of multiple heaters are the same as described for SINGLE HEATER VENTING except as follows: 1. The common vent size and total vent height is normally determined by the number of heaters per common vent, length of horizontal connector runs, and connector rise.
  • Page 13 Multiple Heater Horizontal Venting Arrangement Multiple Heater Venting (Connections into a Manifold) B. INDIRECT VENTING (UNVENTED HEATERS) — This heater requires ventilation in the building to dilute the products of combustion and provide fresh air for efficient combustion. Where unvented heaters are used, gravity or mechanical means shall be provided to supply and exhaust at least 4 CFM per 1,000 Btu/hr input of installed heaters.
  • Page 14: Direct Outside Air For Combustion

    AIR FOR COMBUSTION If indoor combustion air is to be supplied for a tightly enclosed area, one square inch of free area opening shall be provided below the heater for each 1,000 Btu/hr of heater input. Adequate clearances around the air inlet screen must be maintained at all times.
  • Page 15 Sequence of Operation The chart below shows the sequence of operation for the normal operating cycle. If the flame is not sensed during sequence T3 then the burner will automatically begin ignition sequence T2. If the flame is not re-established the heater will go to lockout. Submittal ♦...
  • Page 16: Limited Warranty

    LIMITED WARRANTY LIMITED WARRANTY: Gas-Fired Products, Inc., the manufacturer, warrants to the original owner of any Space-Ray infrared gas heater that said heater will be free from defects in material or workmanship under normal use and service. The heater(s) shall be installed, used and maintained strictly in accordance with the manufacturer's instructions. The manufacturer's sole obligation under this warranty shall be limited to furnishing replacement parts, F.O.B.

This manual is also suitable for:

Rstp17cRstp15c-n5dRstp17c-n5dRstp17c-l5d
