Analog Devices iSensor ADIS/EVAL/USB Preliminary Technical Data page 12

ADISEVAL/USBZ
6
1
FIGURE FLAG NOTES:
1. Perform a single read of the ADIS1625x's output data
2. Start and stop continuous reading of the ADIS1625x's output data. Set the acquisition loop delay time. This provides rough
control over sample times. Please note that this data will not have a high degree of coherence.
3. Select the file data logging option.
4. Configure the ADIS1625x's internal sample rate and filter response.
5. Set the measurement range from the three options available in the ADIS1625x.
6. Exercise the user calibration functions.
NOTE: The ADIS16255 can use this software. The ADIS16251 can use this software, but the rate output measured with be 4 times greater
than the actual angular rate.

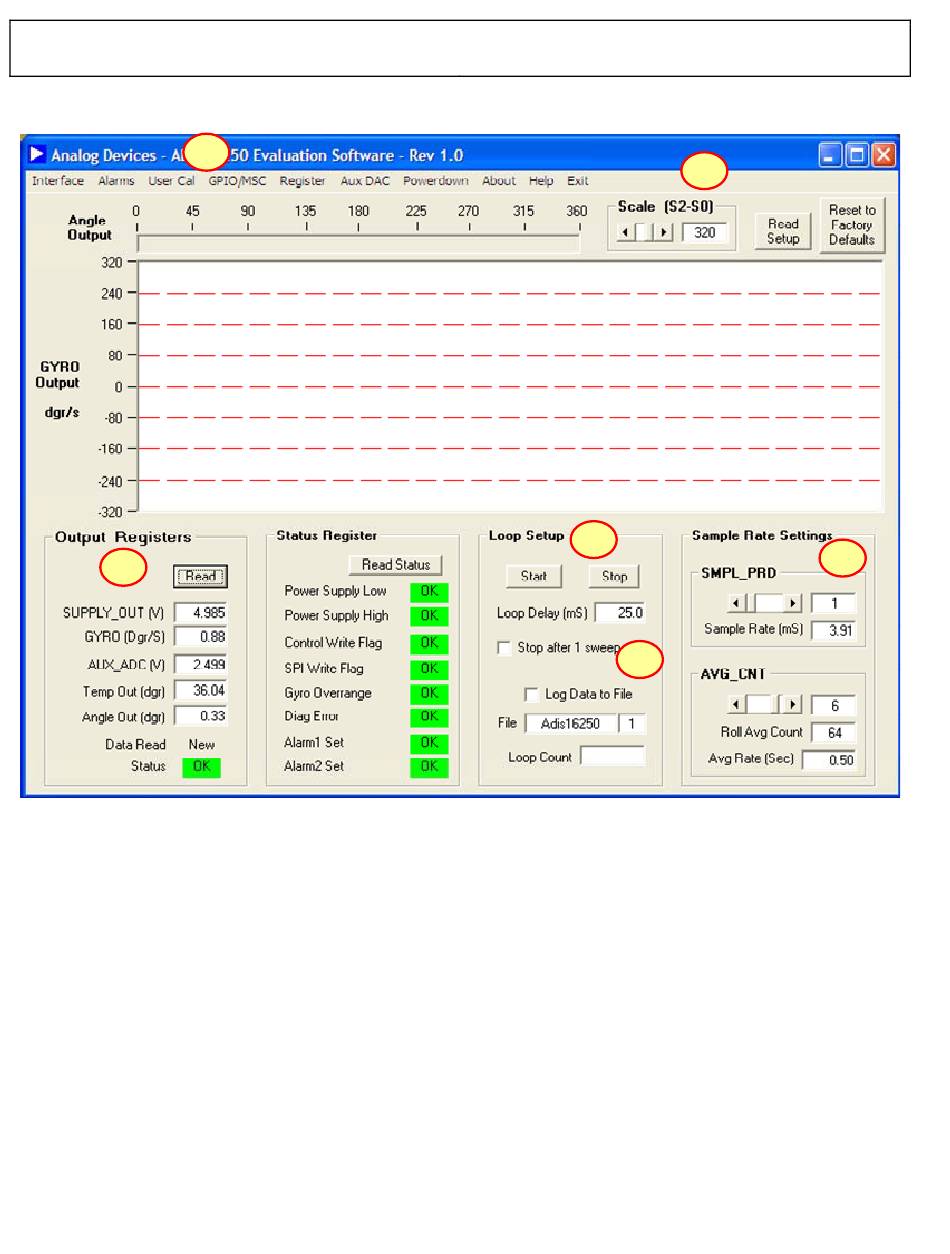

Figure 18. ADIS1625x Evaluation Software
Rev. PrD | Page 12 of 13
Preliminary Technical Data
5
2
3
4
