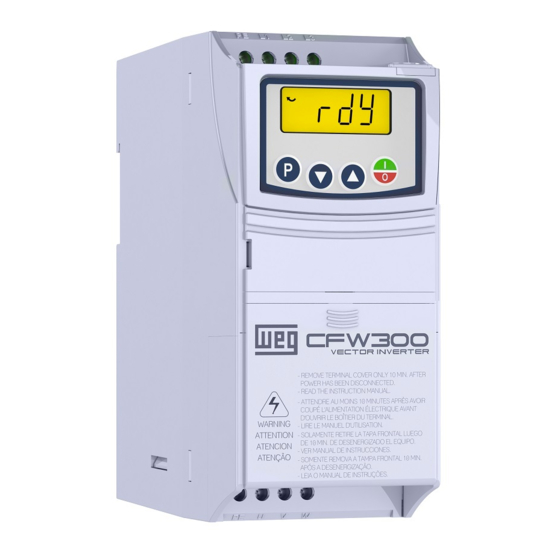

WEG Automation Technical Note: CFW300
Basic Functionality Review with Speed Potentiometer and Run Forward/Stop/Run
Reverse Control Setup
The following parameters and values will be used for this tech note:
P204=5 Factory Reset to 60hz

P401=3.2A Motor Rated Current s

P402=1725 Motor Rated Speed

P403=60 Hz Motor Rated Freq

P100=2.0s Acceleration

P101=2.0s Deceleration

P133=3 Hz Drive Min Speed

P134=60 Hz Drive Max Speed

P002 (Read) Drive Frequency

P003 (Read) Motor Current

P207=18 Bar Graph; AI 1 input value

P220 = 1; LOC/REM Source Selection; Always Remote

REM Reference Selection; AI1 (Default)
P222 = 1

P226 = 4; DIx (Default)

P227 = 1; Selection of Remote run-stop; DIx.

P231 = 0; AI1 Signal Function; Speed Reference.

P233 = 0; AI1 0-10V.

P263 = 4 Function for DI1; Forward RUN

P264 = 5 Function for DI2; Reverse RUN

P271 = DIx Function; All DIx NPN. .

Steps 2 thru 5 will use the motor's nameplate to find the CFW300's motor's related parameters.
To begin reset the drive to factory defaults:
1. Press the "P" button to get to the parameters, and scroll with UP/DOWN arrow to parameter
204 (Reset Defaults). Press "P" again, then using the UP/DOWN arrows scroll to value "5". Press
"P" to accept the value. This will reset the drive parameters to factory default for 60 Hertz.
2. Scroll UP/DOWN to Parameter 400, Motor Rated Voltage. Press "P". Scroll UP/DOWN to select
the motor name plate voltage. Press "P" to accept the value.
