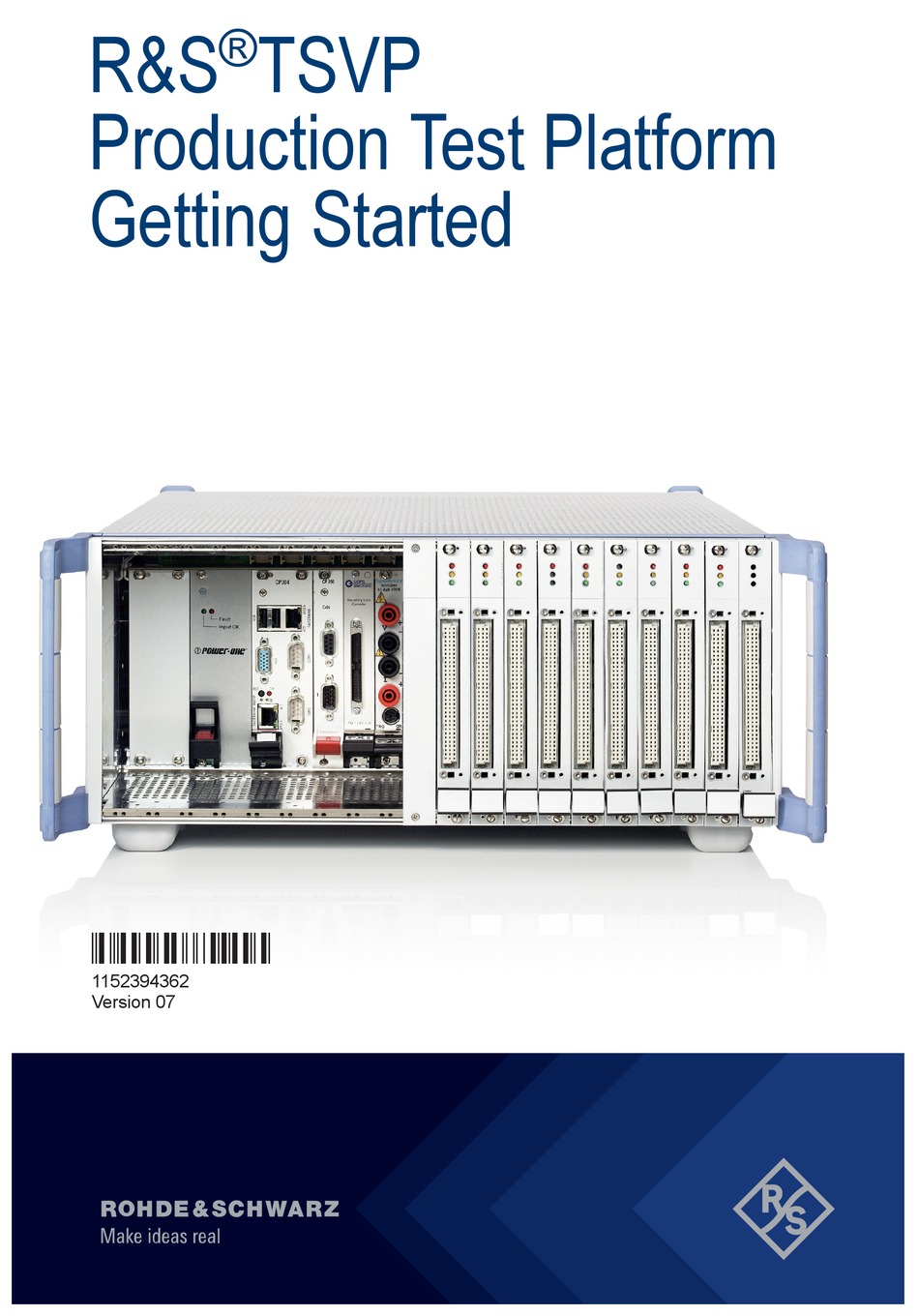

- Page 1 ® R&S TSVP Production Test Platform Getting Started (;ÂW[Ì) 1152394362 Version 07...
- Page 2 This manual describes the following R&S®TSVP models and options: ● R&S ® Compact TSVP R&S®TS-PCA3 (1152.2518.02) ● R&S ® PowerTSVP R&S®TS-PWA3 (1157.8043.02) © 2021 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com...
- Page 3 Safety Instructions Instrucciones de seguridad Sicherheitshinweise Consignes de sécurité Risk of injury and instrument damage The instrument must be used in an appropriate manner to prevent electric shock, fire, personal injury or instrument damage. ● Do not open the instrument casing. ●...
- Page 4 Gefahr von Verletzungen und Schäden am Gerät Betreiben Sie das Gerät immer ordnungsgemäß, um elektrischen Schlag, Brand, Verletzungen von Personen oder Geräteschäden zu verhindern. ● Öffnen Sie das Gerätegehäuse nicht. ● Lesen und beachten Sie die "Grundlegenden Sicherheitshinweise", die als gedruckte Broschüre dem Gerät beiliegen.
-
Page 5: Table Of Contents
® Contents R&S TSVP Contents 1 Documentation Overview............5 2 Installation................7 3 Product Overview..............9 3.1 Production Test Platforms..............9 3.1.1 R&S TS-PCA3..................9 3.1.2 R&S TS-PWA3..................9 3.2 Software Components................10 3.2.1 R&S GTSL.................... 10 3.2.2 R&S EGTSL..................12 3.2.3 R&S IC-Check..................13 3.3 Test Modules..................14 3.3.1 R&S TS-PAM.................. - Page 6 4 GTSL download from GLORIS..........27 4.1 New in GLORIS? Learn how to register..........27 4.2 Download Area..................28 4.3 Which Version of GTSL should I install on my TSVP System?..30 5 Contacting Customer Support........... 32 Getting Started 1152.3943.62 ─ 07...
-
Page 7: Documentation Overview
Gloris. https://gloris.rohde-schwarz.com/ Getting started manual Introduces the R&S TSVP system and describes how to set up and turn on the products. A printed version is included in the delivery. System manual Contains information about the system and its hardware and software compo- nents, including installation instructions and use case examples. - Page 8 ® Documentation Overview R&S TSVP Data sheet The data sheet contains the technical specifications of the system. It also lists the options and their order numbers as well as optional accessories. Release notes and open source acknowledgment The release notes list new features, improvements and known issues of the cur- rent firmware version.
-
Page 9: Installation
1. Switch on the R&S TSVP at the rear. 2. Log on under Windows (no password!). 3. Start the "R&S GTSL TSVP Self Test" in Windows start menu. Details of the self-test are described in the "Service Manual CompactTSVP and Pow- erTSVP". - Page 10 In case of problems concerning the software or hardware installation, the chapter "Installation of R&S CompactTSVP and R&S GTSL" of the "R&S System Manual TSVP" may help. It describes known issues along with possible solutions. Getting Started 1152.3943.62 ─ 07...
-
Page 11: Product Overview

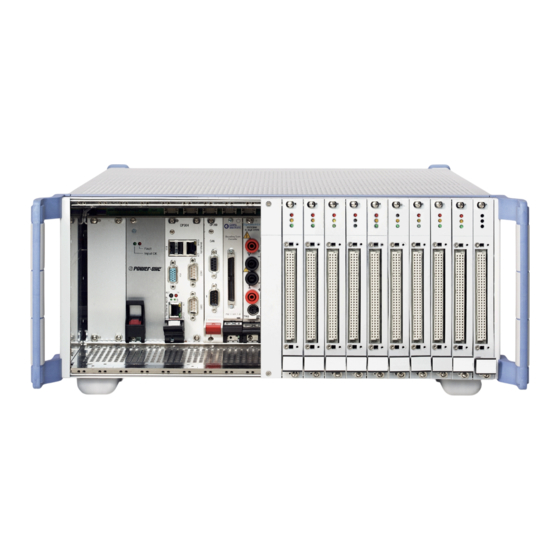

® Product Overview R&S TSVP Production Test Platforms Product Overview Production Test Platforms 3.1.1 R&S TS-PCA3 The Test System Versatile Platform R&S CompactTSVP is a standardized modu- lar platform for the program-controlled testing of modules and terminals in the fac- tory or laboratory. -
Page 12: Software Components
® Product Overview R&S TSVP Software Components The R&S PowerTSVP can be fitted with special ROHDE & SCHWARZ switching and load modules. The unit provides an analog bus that can be used to make complex connections. The modules can also be used without any modification in the R&S CompactTSVP. - Page 13 Used for supporting functions for In-Circuit and IC-Check test methods ● FTBLIB.DLL, Factory Toolbox Used for supporting functions for R&S TS-PIO3B and extensions ● SFT.DLL, Self Test Support Used for controlling functions for the execution of TSVP modules self test Getting Started 1152.3943.62 ─ 07...
-
Page 14: R&S Egtsl
® Product Overview R&S TSVP Software Components ● TOOLKITTESTSTAND.DLL, Toolkit TestStand Used for supporting functions for test sequencer "TestStand" from National Instruments Corp. ● OPERINT.DLL, Operator Interface Offers a configurable "TestStand" operator interface 3.2.2 R&S EGTSL The Enhanced Generic Test Software Library R&S EGTSL is part of an extension to the Generic Test Software Library R&S GTSL. -
Page 15: R&S Ic-Check
® Product Overview R&S TSVP Software Components 3.2.3 R&S IC-Check Using Generic Test Software Library R&S IC-Check it is possible to prepare and perform tests on pins of ICs or other mounted electronic circuit devices. The indi- vidual R&S IC-Check software components are arranged in layers exactly like R&S GTSL. -
Page 16: Test Modules
® Product Overview R&S TSVP Test Modules Test Modules 3.3.1 R&S TS-PAM The R&S TS‑PAM waveform analyzer module is a CompactPCI/PXI module that takes up one slot in the R&S CompactTSVP test system versatile platform. It offers the following key features: ●... -
Page 17: R&S Ts-Pdft
® Product Overview R&S TSVP Test Modules The R&S TS-PICT module can only be used in the R&S CompactTSVP and only in combination with the R&S T-PSAM module. It requires a R&S TS- PDC at the assigned rear I/O slot. -
Page 18: R&S Ts-Phdt
® Product Overview R&S TSVP Test Modules ● Output current: – ≤500 kHz, max. 250 mA – 500 kHz to 1 MHz, max. 125 mA ● Pre-defined output waveforms – sine – triangle – rectangle ● Arbitrary function: DC, 1 Sample to 25 Msamples/second, Resolution: 40 ns Each R&S TS-PFG module can only be used in the R&S CompactTSVP... -
Page 19: R&S Ts-Pio2
The R&S TS-PIO2 analog and digital I/O module is a 16-channel stimulus and a 16-channel parametric measurement unit for versatile DUT testing. It is part of the R&S TSVP modular test and measurement platform and makes full use of the common analog measurement bus and the standardized isolated front-end tech- nology. -
Page 20: R&S Ts-Pio5
® Product Overview R&S TSVP Test Modules ● Programmable output level range from ‒6 V to 10 V, output impedance 30 Ω (typ.) ● 14 bit resolution ● Output current up to 150 mA per channel, 350 mA per port ●... -
Page 21: R&S Ts-Pio3B
® Product Overview R&S TSVP Test Modules 3.3.9 R&S TS-PIO3B The digital I/O module R&S TS-PIO3B is a plug-in card for CAN slots of the R&S CompactTSVP or R&S PowerTSVP. The module provides digital, quasi-bidirec- tional lines, a TTL port, analogue inputs, SPI signals and supply voltages. All the I/O signals are referenced to earth. -
Page 22: R&S Ts-Psam
® Product Overview R&S TSVP Test Modules ● "Folded matrix" concept used : – Odd channels (P1, P3, P5) can be connected directly to odd analogue busses (A1,B1,C1,D1) – Even channels can be connected directly to even analogue bus lines (A2,B2,C2,D2) –... -
Page 23: R&S Ts-Psm1
Each R&S TS-PSM1 module can be used in R&S CompactTSVP and R&S PowerTSVP. If the optional R&S TS-PK04 cable set has been installed in the TSVP chas- sis, the 16 A high current channels and all 2 A channels of the R&S TS- PSM1 will be made accessible via the connectors X3 and X4 on the rear of the chassis. -
Page 24: R&S Ts-Psm3
® Product Overview R&S TSVP Test Modules standby mode. In addition to the functionality of a simple power switching module, small signals can be switched in the lower MHz range with high quality. It offers the following key features: ● 8 switching units each uses a 4 to 1 matrix (HI and LO channel), max. 2 A / 125V per relay contact ●... -
Page 25: R&S Ts-Psm4
® Product Overview R&S TSVP Test Modules at front and at rear I/O section (diverted using an optional TS-PRIO3 rear I/O module) ● 8 switching channels max. 2A , 30 V DC, 46 V AC peak; Shunt resistors with 0.022 Ω for current measurement via analog bus availa- 3.3.15 R&S TS-PSM4... -
Page 26: R&S Ts-Psu
® Product Overview R&S TSVP Test Modules ● It can be ordered with a connector of the Virginia Panel Corp. (VPC) on the front of the module as R&S TS-PSM5 (variant 03, R&S order no. 1519.2768.03). The connector is connected to the individual channels of the module via terminals on the base board using a pre-assembled cable set. -
Page 27: R&S Ts-Psu12
– Shortcut In-System Calibration The TSVP In-System Calibration R&S TS-ISC enables the modules of the R&S CompactTSVP and R&S PowerTSVP production testing platforms to be calibra- ted in the system and readjusted if required. This means that it is no longer nec- essary to remove the modules. - Page 28 – Relay matrix for connecting the components to the analog bus lines on an R&S TS-PMB module installed in the front of the R&S TSVP ● Cabling set to connect the calibration kit to a external DMM as reference...
-
Page 29: Gtsl Download From Gloris
- . # (Only English letters, numbers and the listed characters are allowed) 6. Please use the remark field to enter your required applications. Ask for activa- tion of the "T&M Production Download" for the TSVP. 7. If you like you can subscribe to our newsletter service which will be tailored to your selected interests. -
Page 30: Download Area
® GTSL download from GLORIS R&S TSVP Download Area 8. Tick the box to agree to the Terms and Conditions. 9. Then press "Register". After you submit your registration, you will receive a confirmation email to your inbox, which you must confirm within 48 h. Once you submitted your applica- tion, we will do the verification and send you an email again to say that the account is ready. - Page 31 Note: If "T&M Production Download" is not visible, please write an Email to customersupport@rohde-schwarz.com asking for activation of the "T&M Pro- duction Download" for the TSVP. 4. Navigate through the folder structure: CompactTSVP -> GTSL Getting Started 1152.3943.62 ─ 07...
-
Page 32: Which Version Of Gtsl Should I Install On My Tsvp System
TSVP System? Please install the latest GTSL Version according to the Microsoft Windows ver- sion running on the controller or external PC of your TSVP System. A short overview of the dependencies with Microsoft Windows are shown below. Windows version R&S GTSL version... - Page 33 Which Version of GTSL should I install on my TSVP System? For further details, please refer to the "System Manual TSVP" Section "Installa- tion of R&S CompactTSVP and R&S GTSL". The "System Manual TSVP" can be found in the documentation folder (zip file).
-
Page 34: Contacting Customer Support
® Contacting Customer Support R&S TSVP Contacting Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program- ming or applications of Rohde &...
