XROCKER Cerberus Ottoman Gaming Bed Assembly Instruction Manual

XROCKER Cerberus Ottoman Gaming Bed Assembly Instruction Manual

Advertisement

Quick Links

PLEASE read this leaflet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fitting check list. Do not throw
any of the packing away until you are certain that you have all the necessary parts for assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be kept
away from young children while assembling your unit to avoid danger of choking and/or suffocation hazards.
IMPORTANT :
Please read through this leaflet and follow the simple step-by-step instructions.
Please keep all fittings out of the reach of children.
Please ensure the parts placed on a flat & soft surface before assembly.
Please ensure you have the right tools, Do Not use power tools to assembly this product.
Please ensure a clean, dry and spacious area for assembly.
Due to the size of this product we recommend that it is assembled in the room intended for its use.
Please retain these instructions for future reference.
WARNINGS
Ensure the product is fully assembled and secured as illustrated before use.
Ensure the legs always remain in contact with the ground.
Ensure all screws or bolts are tightened and inspect regularly.
Do not stand or jump on the product.
Do not use this product if parts are missing, damage or worn.
Do not expose this product to water or areas with high moisture.
Do not place the product in direct sunlight This could lead to colour fading.
Do not use open flames such as candles, fires or cigarettes.
Do not place the product against a radiator as the heat may melt the covering.
Do not use the product for long periods in rooms over 35 degrees Celsius.
Do not use a scourer, abrasives or chemicals to clean the product, only clean with a sponge wipe and warm
soapy water.

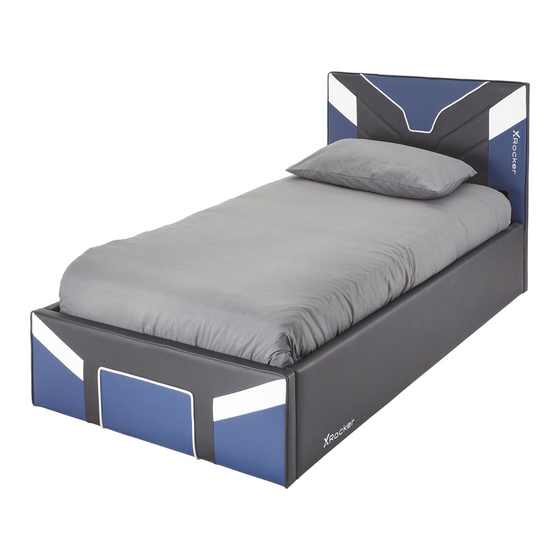

CERBERUS GAMING OTTOMAN BED
SIZE : SINGLE 3'
ASSEMBLY INSTRUCTION
FOR PARTS & TECHNICAL
SUPPORT VISIT :
www.xrockeruk.com/pages/support
Page 1 of 7
