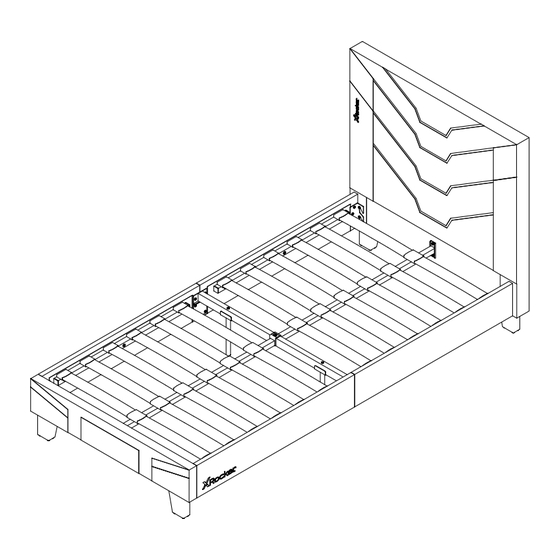

CERBERUS MKII BED -
COMPACT SINGLE
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
Dimensions
Width -203.5cm
Depth -104.5cm
Height -101cm
If there are any parts missing or you need further assistance, please visit:
KT-20230712
www.bluemouth.com.au
2023172-2023173
