Ocelot
Gaming Desk
Assembly Instructions
NEED HELP?
EMAIL: SUPPORT@XROCKERGAMING.COM
BESOIN D'AIDE?
COURRIEL: SUPPORT@XROCKERGAMING.COM
¿NECESITAS AYUDA?
CORREO ELECTRÓNICO: SUPPORT@XROCKERGAMING.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ocelot Gaming Desk and is the answer not in the manual?

Questions and answers

Summary of Contents for XROCKER Ocelot Gaming Desk

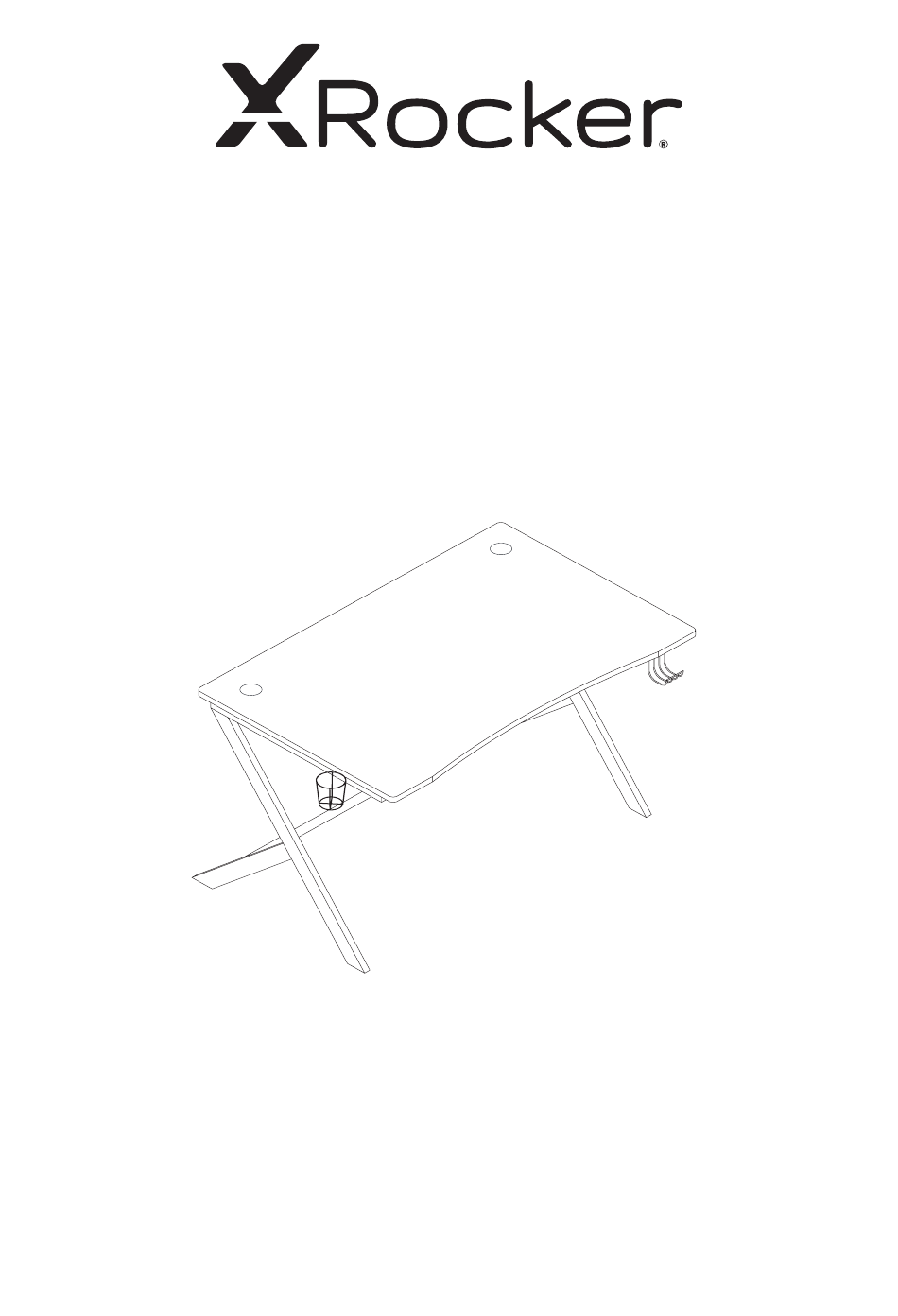

  • Page 1 Ocelot Gaming Desk Assembly Instructions NEED HELP? EMAIL: SUPPORT@XROCKERGAMING.COM BESOIN D'AIDE? COURRIEL: SUPPORT@XROCKERGAMING.COM ¿NECESITAS AYUDA? CORREO ELECTRÓNICO: SUPPORT@XROCKERGAMING.COM...
  • Page 2 Welcome to X Rocker! Thank you for purchasing the X Rocker Ocelot Gaming Desk. You are now close to enhancing your game. Tools needed Allen Key 2 person build...
  • Page 3 Box Contents: Parts x1 Left x1 Right...
  • Page 4 Box Contents: Fittings Small x8 Medium x6 Large x4 STICKERS Left Right 560mm 560mm 700mm 700mm 365mm 365mm...
  • Page 5 Sticker Fitting Left Right 560mm 560mm 700mm 700mm 365mm 365mm 560mm Left 700mm 365mm 560mm Right 700mm 365mm...
  • Page 6 Assembly Instructions Step 1: Attach feet to stands 2 & 3. ③ ② Step 2: Attach lower bar (5) and steel frame (4) to stands 2 & 3. ④ ② ⑤ ③...
  • Page 7 Assembly Instructions Step 3: Attach support bars (6) to steel frame (4) and lower bar (5). Turn lower bar to match support bars. ⑥ ⑥ Step 4: Attach headphone holder (7) and cup holder (8) to desktop (1). ⑧ ① Back ⑦...
  • Page 8 Assembly Instructions Step 5: Attach Desktop (1) to stands 2 & 3 ①...
  • Page 9 Need Help? Please visit the following webpage: www.xrockergaming.com/support IMPORTANT: You must keep your original retail receipt as proof of purchase. Love your product? Show us on social! Facebook: @XRockerNation Instagram: @XRockerGaming Twitter: @XRockerGaming TikTok: @XRockerGaming...
