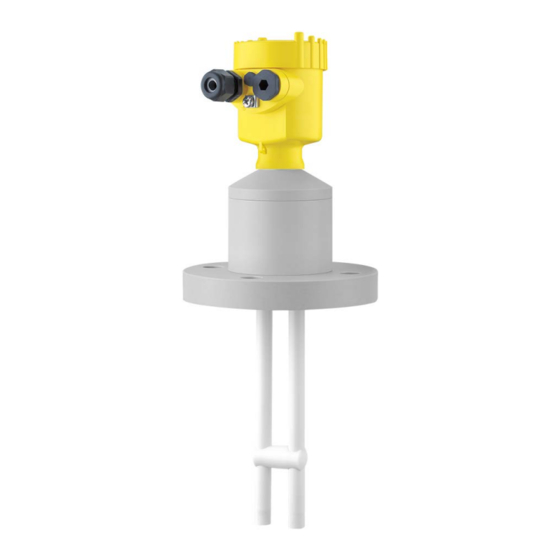

Capacitive double rod electrode for level detection

Advertisement

Quick Links

Operating Instructions
Capacitive double rod electrode for level
detection
VEGACAP 69
Two-wire
Document ID: 31177

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGACAP 69 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vega VEGACAP 69

  • Page 1 Operating Instructions Capacitive double rod electrode for level detection VEGACAP 69 Two-wire Document ID: 31177...
  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................24 Dismount..........................25 Dismounting steps......................25 Disposal ......................... 25 Supplement ..........................26 Technical data ........................ 26 Dimensions ........................29 Industrial property rights ....................32 Trademark ........................32 VEGACAP 69 • Two-wire...
  • Page 3 Contents Editing status: 2023-04-26 VEGACAP 69 • Two-wire...
  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGACAP 69 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
  • Page 6: Conformity

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGACAP 69 • Two-wire...
  • Page 7: Product Description

    Housing with electronics • Housing cover, optionally available with display and adjustment module Fig. 1: VEGACAP 69 - double rod probe with plastic housing Housing lid with integrated display and adjustment module (optional) Housing with electronics 3 Process fitting VEGACAP 69 • Two-wire...
  • Page 8 Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the " Apple App Store" or the " Google Play Store" • Scan the QR-code on the type label of the device or •...
  • Page 9: Principle Of Operation

    3 Product description Principle of operation Application area VEGACAP 69 is a point level sensor for use in aggressive liquids in non-conductive vessels. The double rod probe is fully insulated and highly resistant. Functional principle Probe, measured product and vessel wall form an electrical capacitor.
  • Page 10: Packaging, Transport And Storage

    Protective cover The protective cover protects the sensor housing against soiling and intense heat from solar radiation. Flanges Screwed flanges are available in different versions according to the following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5, JIS B 2210-1984, GOST 12821-80. VEGACAP 69 • Two-wire...
  • Page 11: Mounting

    (e.g. through cleaning processes) or on cooled or heated vessels. To maintain the housing protection, make sure that the housing lid is closed during operation and locked, if necessary. VEGACAP 69 • Two-wire...
  • Page 12: Mounting Instructions

    Agitators and fluidization Due to the effects of agitators, equipment vibration or similar, the level switch can be subjected to strong lateral forces. For this reason, do not use an overly long electrode for VEGACAP 69, but check if you can mount a short level switch on the side of the vessel in horizontal position. Extreme vibration caused by the system, e.g. due to agitators or turbulence in the vessel from fluidisation, can cause the probe of VEGACAP 69 to vibrate in resonance.
  • Page 13 This applies particularly to instrument versions with a longer probe. Fig. 5: Inflowing medium Nozzle The probe should protrude into the vessel to avoid buildup. For that reason, avoid using mounting bosses for flanges and screwed fittings. This applies particularly to use with adhesive products. VEGACAP 69 • Two-wire...
  • Page 14: Connecting To Power Supply

    Connect the operating voltage according to the following diagrams. Take note of the general installation regulations. As a rule, connect VEGACAP 69 to vessel ground (PA), or in case of plastic vessels, to the next ground potential. On the side of the instrument housing there is a ground terminal between the cable entries.
  • Page 15: Wiring Plan - Single Chamber Housing

    Wiring plan - single chamber housing Housing overview Fig. 7: Material versions - single chamber housing Plastic (not with dust-Ex) Aluminium Stainless steel Filter element for pressure compensation or blind plug with version IP66/ IP68, 1 bar VEGACAP 69 • Two-wire...
  • Page 16 " Ex-technical data" are available in the " Safety information". The wiring example is applicable for all suitable controllers. Take note of the operating instructions manual of the controller. Suit- able controllers are listed in chapter " Technical data". Fig. 9: Wiring plan Voltage supply VEGACAP 69 • Two-wire...
  • Page 17: Wiring Plan - Version Ip66/Ip68, 1 Bar

    After connecting to voltage supply or after a voltage recurrence, the instrument passes a certain switch on routine. By lowering the current value when switching on, the instrument can output briefly a fault signal. I/mA 20,5 < 2,3 Fig. 11: Warm-up reaction Measured value VEGACAP 69 • Two-wire...
  • Page 18: Setup

    Note: As a rule, always set the mode with the mode switch of the signal conditioning instrument before starting setup VEGACAP 69. The switching output will change if you set the mode switch afterwards. This could possibly trigger other connected instruments or devices.
  • Page 19 Measuring range selec- tion switch (1) selection switch (1) on VEGACAP 69 you can change the sensitivity of the probe to the electrical properties of the product and the condi- tions in the vessel. This is necessary so that the level switch can also reliably detect products e.g. with very low or very high dielectric figure.
  • Page 20: Diagnostics And Servicing

    Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.
  • Page 21: Exchange Of The Electronics Module

    Fig. 14: Check the resistance in the probe Shielding Measuring probe Ground potential Exchange of the electronics module In general, all oscillators of series CP60 can be interchanged. VEGACAP 69 • Two-wire...
  • Page 22 10. Screw in and tighten the two holding screws with a screwdriver (Torx size T10 or Phillips 4) 11. Insert the wire ends into the open terminals according to the wir- ing plan 12. Press down the opening levers of the terminals, you will hear the terminal spring closing VEGACAP 69 • Two-wire...
  • Page 23: Shortening Of The Probe

    Fig. 17: Compensation key Measuring range selection switch (compensation key) Control lamp 3. Keep the measuring range selection switch (1) pushed until the control lamp (2) flashes green. 4. Hence the probe is compensated to the modified length. 5. Carry out the adjustment again. See chapter " Set-up, adjustment elements". VEGACAP 69 • Two-wire...
  • Page 24: How To Proceed If A Repair Is Necessary

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGACAP 69 • Two-wire...
  • Page 25: Dismount

    If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGACAP 69 • Two-wire...
  • Page 26: Supplement

    Two-wire output Suitable controllers VEGATOR 141, 142, 620, 621, 622 Output signal > 4 … < 20 mA (not standardised) Fault message < 2.3 mA Switching delay Ʋ When immersed 0.7 s Flange weight not considered VEGACAP 69 • Two-wire...
  • Page 27 Process temperature Ʋ Flange of PTFE -40 … +100 °C (-40 … +212 °F) Ʋ Flange of PP 0 … +60 °C (+32 … +140 °F) -40°C 0°C 45°C 100°C Fig. 18: Process pressure - Process temperature (flange of PTFE) Process pressure Process temperature Distance from the process fittings to the set switching point. Distance from the process fittings to the set switching point. VEGACAP 69 • Two-wire...
  • Page 28 < 0.036 Ω/m (0.011 Ω/ft) Ʋ Tensile strength < 1200 N (270 lbf) Ʋ Standard length 5 m (16.4 ft) Ʋ Max. length 1000 m (3280 ft) Ʋ Min. bending radius 25 mm (0.984 in) with 25 °C (77 °F) VEGACAP 69 • Two-wire...
  • Page 29: Dimensions

    They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. Dimensions The following dimensional drawings represent only an extract of all possible versions. Detailed dimensional drawings can be downloaded at www.vega.com/downloads under " Drawings". VEGACAP 69 • Two-wire...
  • Page 30 ~ 103 mm (5.91") (4.06") ø 77 mm ø 84 mm (3.03") (3.31") M20x1,5 M20x1,5 M20x1,5 Fig. 21: Housing versions with protection rating IP66/IP68 (1 bar) Stainless steel single chamber (precision casting) Aluminium - single chamber VEGACAP 69 • Two-wire...
  • Page 31 9 Supplement ø 14 mm (0.55") 47 mm (1.85") Fig. 22: VEGACAP 69 Sensor length, see chapter " Technical data" VEGACAP 69 • Two-wire...
  • Page 32: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 33 Notes VEGACAP 69 • Two-wire...
  • Page 34 Notes VEGACAP 69 • Two-wire...
  • Page 35 Notes VEGACAP 69 • Two-wire...
  • Page 36 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2023 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
