Connection

When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
1

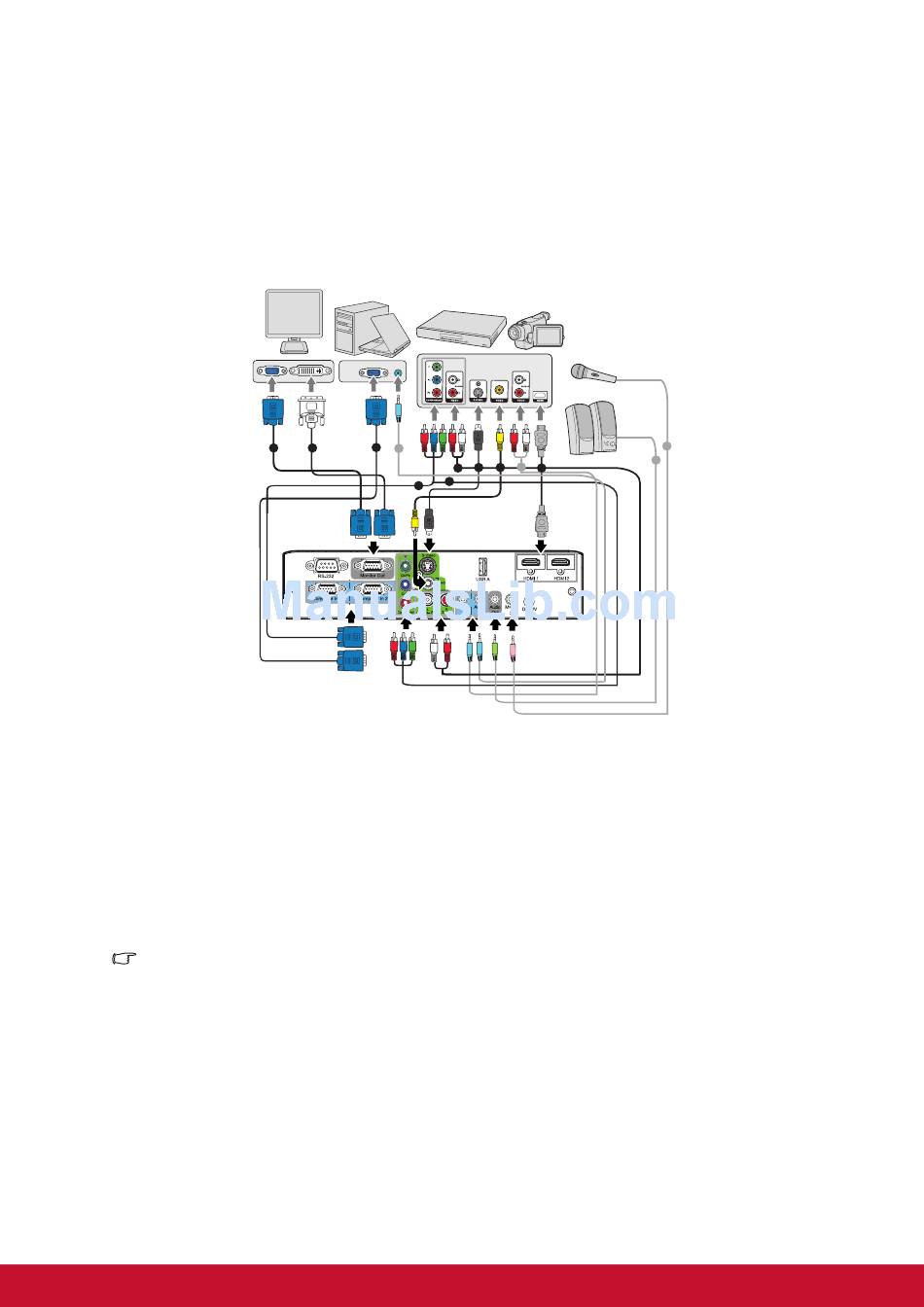

1. VGA cable (D-Sub to D-Sub)
2. VGA to DVI-A cable
3. VGA (D-Sub) to HDTV (RCA) cable
4. Component Video cable
5. Audio L/R cable
Important
•
In the connections shown above, some cables may not be included with the projector
(see "Package Contents" on page
stores.
•
The connection illustrations above are for reference only. The rear connecting jacks
available on the projector vary with each projector model.
•
For detailed connection methods, see pages 13-16.
1
2
8
5 6
4
3
6. S-Video cable
7. Composite Video cable
8. Audio cable
9. HDMI cable
10. Microphone 3.5 mini jack cable
2). They are commercially available from electronics
12
12
10
8
7 8 7 9
