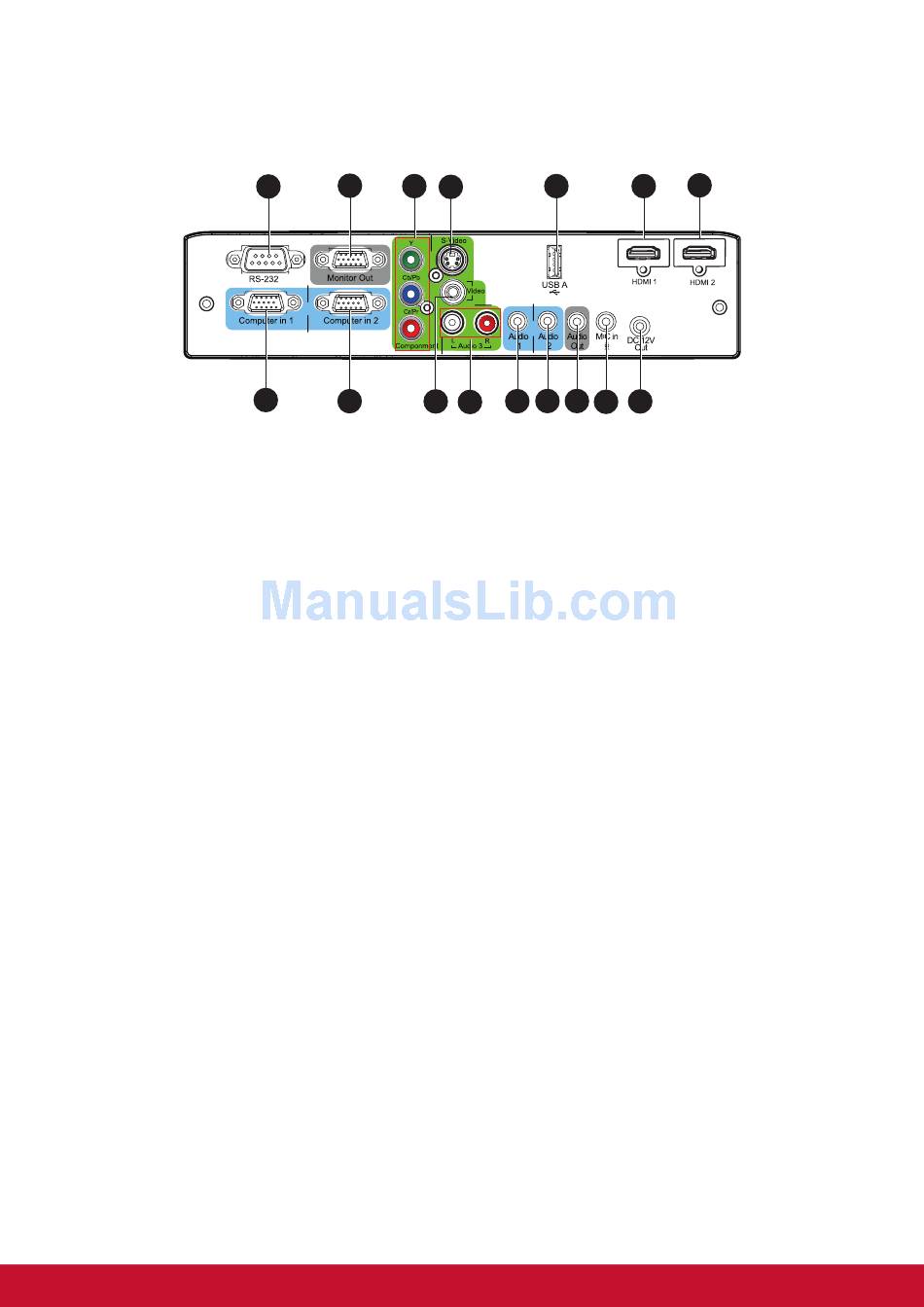

Connection Ports

1
16
1. RS-232
When operating the projector via a computer, connect this to the controlling com-
puter's RS-232C port.
2. Monitor Out
Connect to a computer display, etc.
3. Component (Y Cb/Pb Cr/Pr)
Connect Y Cb/Pb Cr/Pr output from video equipment to this jack.
4. S-Video
Connect S-Video output from video equipment to this jack.
5. USB A
This connector supports firmware update.
6. HDMI 1
Connect HDMI output from video equipment to this jack.
7. HDMI 2
Connect HDMI output from video equipment to this jack.
8. DC 12V Out
12V DC out
9. MIC in
Microphone input jack.
10. Audio Out
Connect to a speaker or other audio input equipment.
11. Audio 2
Connect an audio output from video equipment or computer to this jack.
12. Audio 1
Connect an audio output from video equipment or computer to this jack.
13. Audio 3 (L/R)
Connect an audio output from video equipment to this jack.
14. Video
2 3
4
15 14 12
13
6
6
7
5 6
11 10 8
9
