EMV Pulse
Operator's manual
Rev. 1.02

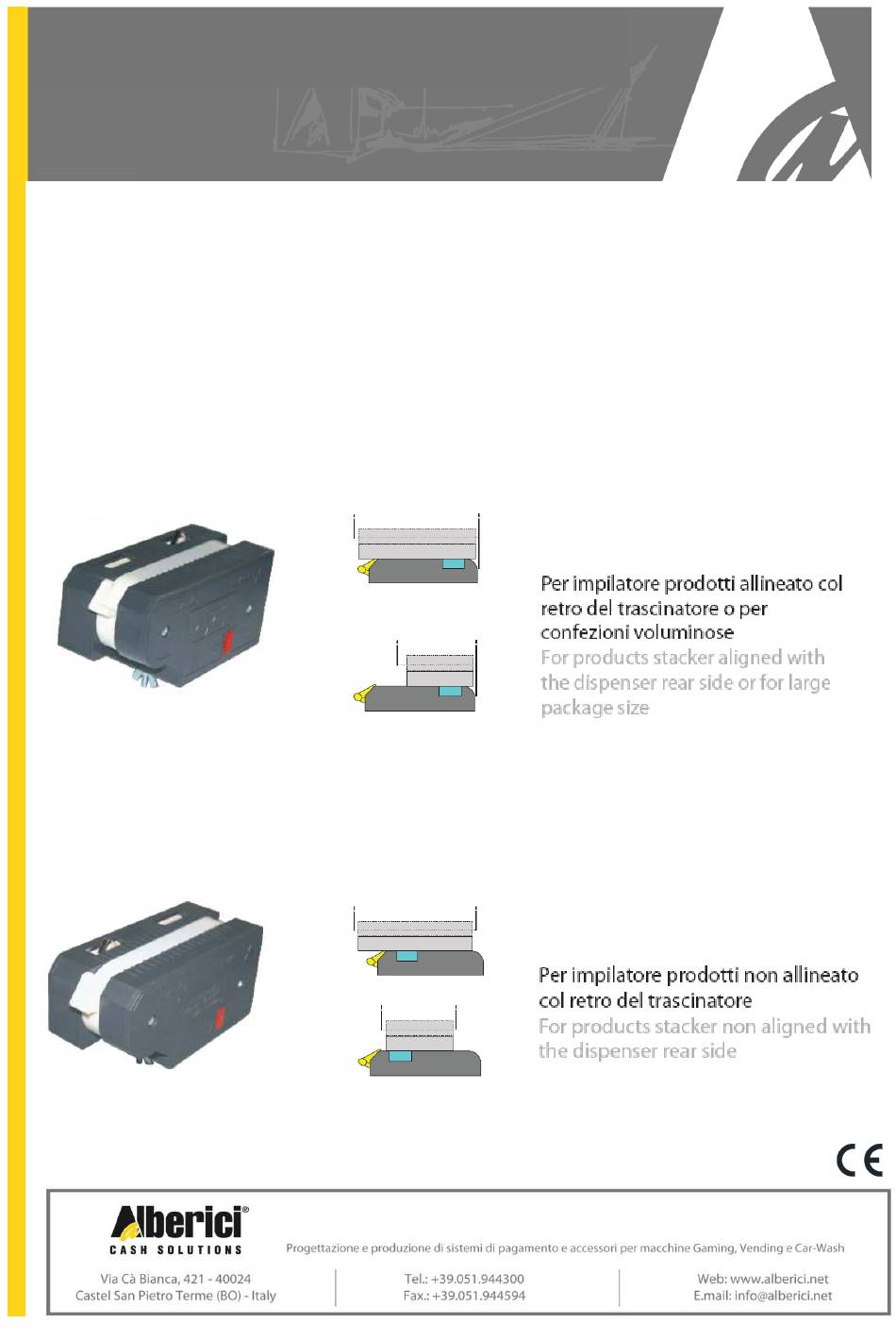

The Alberici vending motors are designed for dispensing packed products.
They are available with either slant retainer dyke or upright retainer dyke.
SLANT-STOP MOTORS:
EP-1P0S TRAS-001P STANDARD PARALLEL
EP-1A0S TRAS-001A STANDARD PARALLEL
electronic vending motors
Sensore prodotto posteriore
Rear sensor
Sensore prodotto anteriore
Front sensor
Advertisement
Table of Contents
Related Manuals for Alberici EP-1P0S
Summary of Contents for Alberici EP-1P0S
- Page 1 EMV Pulse electronic vending motors Operator’s manual Rev. 1.02 The Alberici vending motors are designed for dispensing packed products. They are available with either slant retainer dyke or upright retainer dyke. SLANT-STOP MOTORS: EP-1P0S TRAS-001P STANDARD PARALLEL Sensore prodotto posteriore...
- Page 2 EP-1L0S TRAS-001L STANDARD PARALLEL Sensore prodotto anteriore Front sensor UPRIGHT-STOP MOTORS: EP-1D0S TRAS-001D STANDARD PARALLEL EP-1C0S TRAS-001C STANDARD PARALLEL TECHNICAL DATA Power supply 24Vdc No load current 30 mAmp Max. efficiency current 1 Amp (output power 12 W) Max. load current 3,7 Amp (+12V) Stand-by current 550 mAmp...
- Page 3 19,0 CONNECTORS standard (Pulse) communication The Alberici EMV vending motors with interface must be powered by +12 Vdc, to be supplied to pin 1. If the product is in position and detected, the microswitch appears as open on pin 2, and as closed on pin 3.
- Page 4 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 info@alberici.net...
