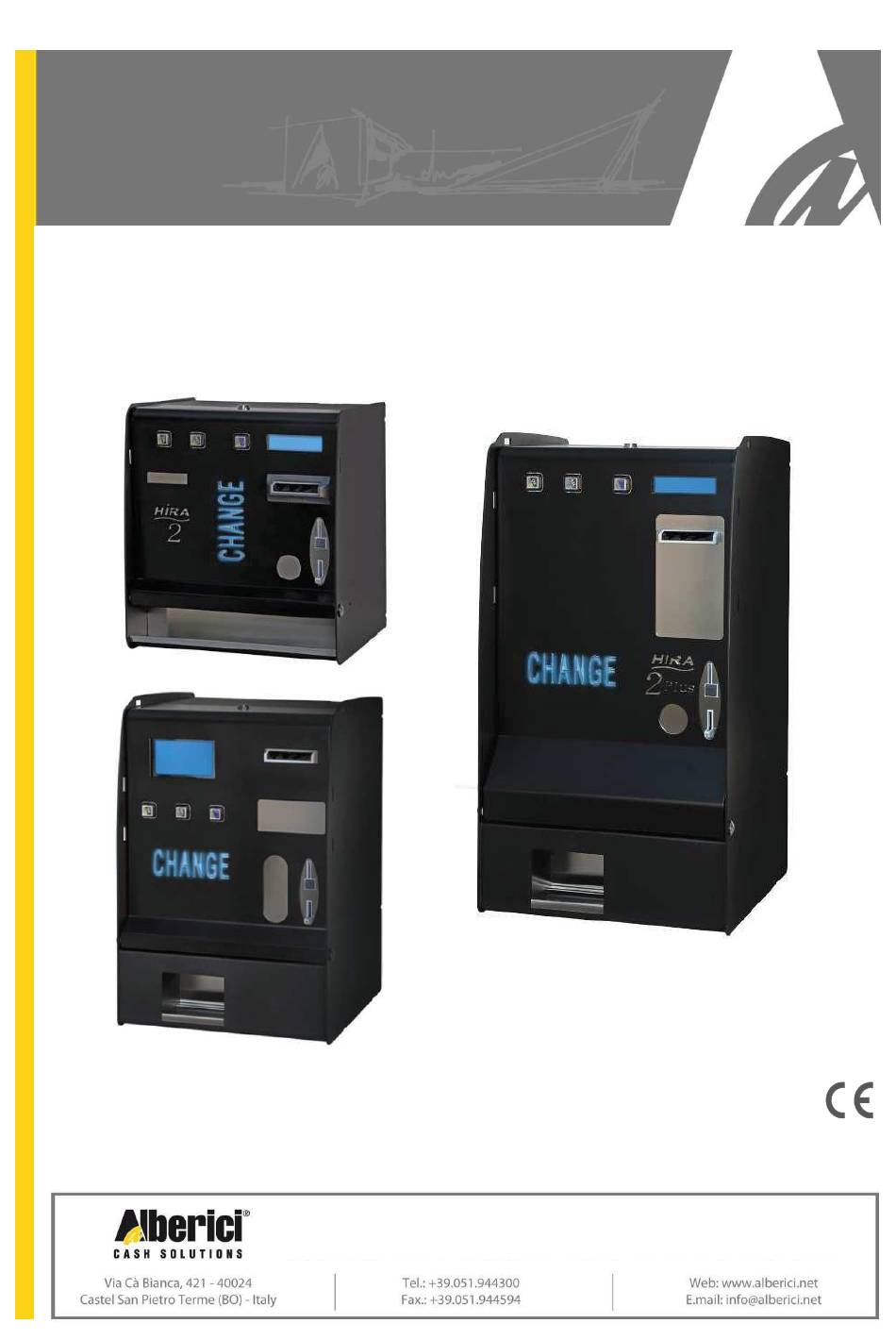

- Page 1 Hira 2 Mini, Midi, Maxi Operator’s Manual Rev. 2.00 EN HIRA 2 Operator’s Manual Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car -Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...
-
Page 3: Table Of Contents
CONTENTS Package content:........................4 Components description ......................4 Product description ........................5 Warning ..........................5 Installation ..........................6 Operation ..........................9 System configuration ....................... 9 Messages ..........................17 Cleaning of the Note Validator ....................22 11. Disposal of the product ......................24 12. -
Page 4: Package Content
Please read carefully this handbook, to obtain the most from your machine. 1. Package content The package contains: 1. the Alberici HIRA 2 / Hira 2 Maxi Change machine 2. 1 pair of keys 3. the power cable (see inside of money box) 4. -
Page 5: Product Description
Coin acceptor (optional) AL66S cctalk Remote audit (optional) Alberici GSM-GPRS or GPS/GSM/GPRS (*) Notice: Euro is the preset currency. If you require a different currency, please request your currency before placing your order. (*) The system requires a SIM card enabled for data traffic, and the subscription to the Portal ARGO if you want to control the machine via the Internet, or a SIM card enabled voice traffic / messages and data traffic if you only want to use SMS messaging. -
Page 6: Installation
PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING RELIABLE EXPANSION BOLTS. IT IS RECOMMENDED THAT YOU MAKE USE OF THE WALL-MOUNT SLAB (ref. HRP-021A-V06 for HIRA 2 Mini, HRM-AM15-V06 for HIRA 2 Midi, HRS-015A-V06 for HIRA 2 Maxi) . Midi... - Page 7 MOUNT SLABS HRS-015A-V06 for HIRA 2 Maxi Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the 12 wall by sturdy expansion bolts, through the 6 “X” ( 12 mm) holes. Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
- Page 8 HRP-021A-V06 HIRA 2 M Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the wall by sturdy expansion 12 bolts, through the 6 “X” ( 12 mm) holes. Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
-
Page 9: Operation
6. Operation Three buttons are available: “1” and “2” allow the User to choose the coin (or token) denomination he wants back as change; third button allows the user to choose the language he wants on the display (English, French, German, Italian and Dutch are available. Ask before placing order for other languages options). - Page 10 7.3 Menu functions 7.3.1 Surf the Menu: To enter the menu and navigate it, make use of the 3 keys located on the board rear side. PROG CMS board Rear view CC12 P4/7 RGB3 RGB2 RGB1 24 12 GND Get access to the menu by holding the three buttons pressed at the same time for 5 seconds. confirm selection navigate menu UP and DOWN;...
- Page 11 7.3.2 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
- Page 12 7.3.3 Show peripheral units This menu allows to check the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 7.3.4 Show accounts This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
- Page 13 7.3.6 S ETTING THE PERIPHERAL UNITS This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
- Page 14 7.3.6.2 C OIN SELECTOR SETUP The board automatically detects the presence of the coin selector during initial check. Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP state.
- Page 15 OPERATION AFTER SETTING THE PAY-OUT TABLE: when the User will insert money corresponding to any of the programmed levels, the machine shall pay out the combination of pieces that the Operator has pre-programmed for the amount inserted by the User (see section 6.1.A). SETTING THE PAY-OUT TABLE: Let us assume that HP1 has been set to 1 €, and that HP2 has been set at 0,10€.
- Page 16 7.3.6.4 (only if the ACS reader is built-in) ASHLESS If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Key (black) Service Key (white) Operator Key Operation for the owner for the manager (yellow) YES (only Operator’s) 1.
-
Page 17: Messages
7.3.6.5 GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. Insert Name: Insert name: LUCKY HALL Name of Machine Please wait ……. Cellphone Nr [1]: Cellphone Nr [1]: Set enabled >_<... - Page 18 (***) When the Service Status Remote Enable function is active, the machine can be put out of service by sending an SMS (text is “CMD=OFF”) from any of the 3 enabled cellular phones. To restore service, send text “CMD=ON”. (****)When the Remote Payment function is active, and the Security Level has been set to Low, it is possible to command the machine to dispense an amount (in €) or a number of tokens (pieces) by sending the following sms text from any of the 3 enabled cellular phones:“OUT=n°”...
- Page 19 7.3.10 Language setup LANGUAGE Seleziona lingua Choose language Waehlen Ihre Sprache SETUP ITALIANO ENGLISH DEUTSCH 7.3.11 Promo It is possible to preset an advertisment on the display. Press OK: Digit text ----------------------- Press again OK, the pointer will highlight the first digit: by UP or DOWN, choose the character that you want to insert, then confirm by OK.
- Page 20 7.3.13 Manual Refill Set Up Refill can take place when unit is empty or not. Allows to record the amount put in. MANUAL REFILL MANUAL REFILL SET UP SET UP MANUAL MANUAL REFILL REFILL Confirm?..Confirm?..(*) Shows “€” when set for coins €...
- Page 21 8. Messages Messages on the display 8.1.1 Faulty operation: CHANGEONE The following warning: OUT OF SERVICE is accompanied by the system check. For instance, the following sliding warnings: ...COIN ACCEPTOR… PTOR …. …. NOT TOR… …. HOPPE R N° 1… ….
- Page 22 Messages from the Note validator 8.2.1 BillyOne / OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): nr of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)
-
Page 23: Cleaning Of The Note Validator
9. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts. -
Page 24: Disposal Of The Product
- detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time. - Page 26 ATTACHMENT: Spare parts List HIRA 2 Maxi...
- Page 28 HIRA 2 Midi...
- Page 30 HIRA 2 Mini...
- Page 31 BillyOne...
- Page 33 IRETTIVA IRETTIVA La ditta Alberici S.p.A., avente sede in via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO) – Italia, D I C H I A R A Che il sistema classificato nella famiglia di prodotto apparecchio elettrico d’uso domestico e similare –...
- Page 37 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of continual improvement of its product.
- Page 38 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
