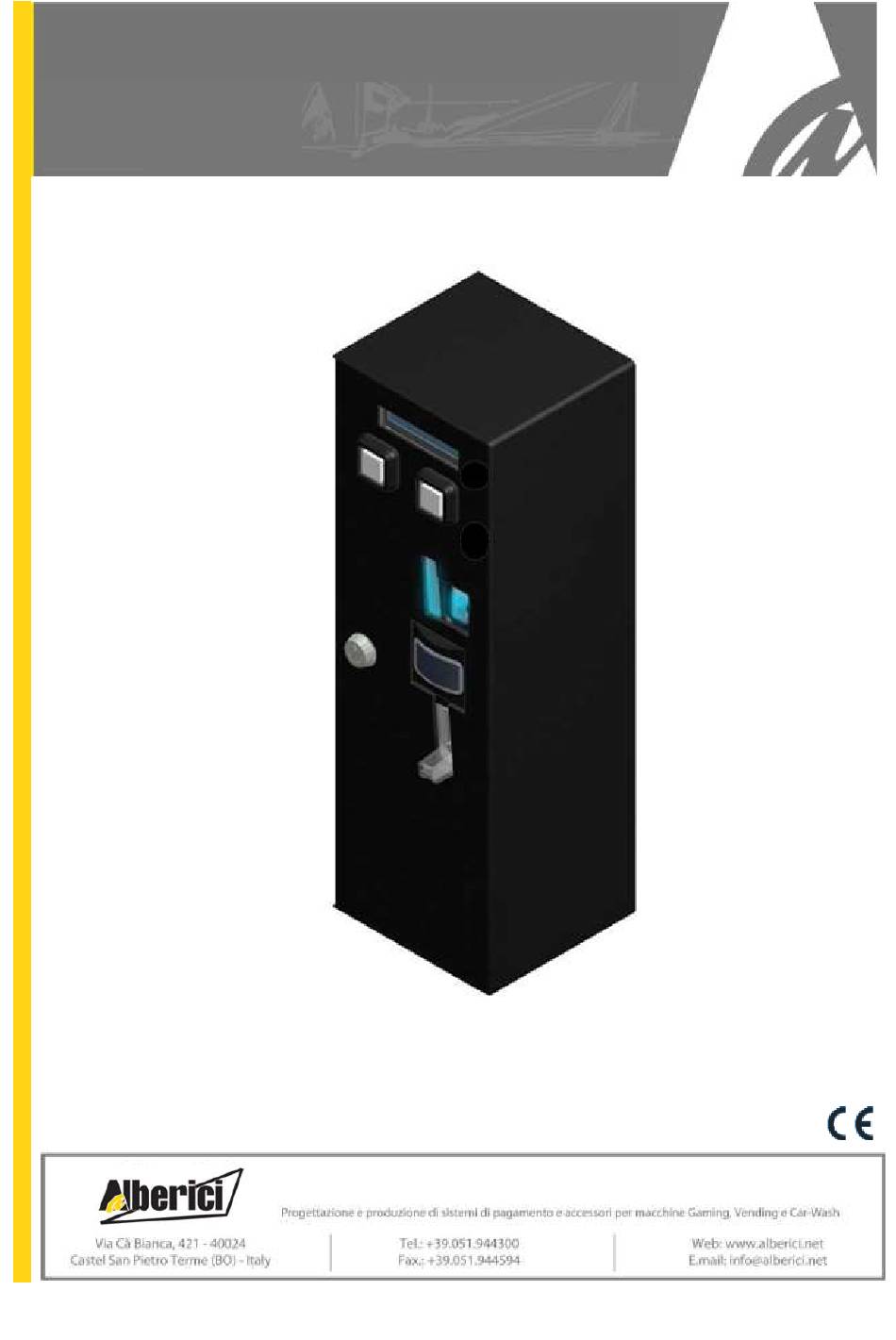

- Page 1 Timebox B ACS Pay-for-time box with RFID reader (2-Service Lines) Operator’s manual Rev. 1.05 User Manual ACTIVE ONE ALBERICI Manual Rev. 1.00 Page 1...
- Page 2 Alberici SpA shall not be held liable by the User for any damage, losses, or third party claims arising from any uses of the manual or of the product.
-
Page 3: Table Of Contents
Creazione 1.00 05.10.12 Creazione Rev. 1.02 04.04.14 ActiveOne, scheda MKII e conversione a ccTalk Rev. 1.03 22.07.15 Cambio frontespizio Rev. 1.04 09.010.18 Versione con ACS integrato nel frontalino Rev. 1.05 26.04.22 Scheda ActiveOne ARM TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page... -
Page 4: Package Content
We trust that you will appreciate the quality and performace of the Alberici TIMEBOX B ACS. The data exchanged under MIFARE® encryption are then processed through cctalk protocol, the serial communication mode that provides security and precision. - Page 5 Twso-relay Servo p.c.b. (dc / ac power supply) SH-40DN (230Vac) K-A1C-000001 KA faceplate with RFID ACS ccTalk Key reader (only ACS reader: CH-BC00) TBG-R005-Z00 Coin box for Timebox B AM-1509 Flat Key lock, keyed different, L=21 TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
-
Page 6: Size
Size Installation Cautions and dangers when installing The unit must be installed by qualified technicians, skilled in mechanical and electrical operations. Keep power supply disconnected during installation and during any further servicing. Do not modify the circuits in the unit. Any change could impair the correct functioning. The power line must comply with the Norm CEI 64-8/7. -
Page 7: Electrical Connections
Electrical connections Electrical cables must not be powered during installation! The sockets P8, P2, and P3 are already connected to the coin acceptor (P8), to the ACS reader (P8), and to the pushbuttons (P2, P3). TIMEBOX ACS ALBERICI Manual Rev. 1.05... - Page 8 Servo-control board 6.4.1 The TIMEBOX B is available for the following power supplies at choice: 230Vac, 24Vdc/Vac, 12Vdc. When placing your orders, please specify which power presetting you need: the interface Servo-board shall be prepared and delivered accordingly. A 10p flat cable connects the Active One control board to the Servo-board. Power the Servo-board by the 3p socket J1, according to the following pattern: 230 Vac 24Vac...
- Page 9 Pins 7/8 of green connector J2: provide any Vdc (+) or Vac (line value) to pin 7, and respectively 0Vdc (-) or Neutral Vac to pin 8. Mechanically - move to OFF the dip-switches located on the coin acceptor. Move them back to ON when you want to resume coin acceptance. TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
-
Page 10: Operation
Operation 7.1 Getting started Switch the machine on: the display will lit on and will show the following message: System in service The machine is ready to operate by the following default preset values: Line 1: price of service = 0,50 € Line 2: price of service = 0,50 €... - Page 11 This sub-menu allows to: read the records corresponding to the cashed total and partial amounts; reset (cancel) the recorded Total amounts (it is necessary to enter the PIN code); reset (cancel) the recorded Partial amounts. TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
- Page 12 ACCOUNTS Show Account records DOWN Partials Line A Partials Line. B Exit 0,00 € 0,00 € DOWN (*) Must Reset Reset enter the Accounts Total records PIN code DOWN Reset partial records DOWN Uscita 7.3.2.2 S HOW CCTALK ERIPHERAL NITS This function shows the state of the devices (connected, disconnected, in error, …): CASHLESS COIN ACCEPTOR...
- Page 13 If the Service Line 2 must be also used, repeat the setting operations described above for the Service line 1, or else press repeatedly the key until obtaining the exit option: DOWN Exit Saving To save the settings, press : the message will briefly appear. Settings … TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
- Page 14 By selecting the "<" symbol and pressing OK, the last character entered gets deleted. If RFID keys must be used that have already been initialized on another Alberici cashless reader, take care to enter the same 6-digit PIN of the device in which they were initialized.
- Page 15 (**) should the Key be Insert Key to be Insert Key to be spoiled or invalid, the initialized initialized following message will be displayed: ‘KEY NOT ENABLED!’ or press OK or press OK to exit to exit TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
- Page 16 After the 5 error, the machine will be blocked, while the display will show two codes. Please send such codes to Alberici Assistance, to get the reset information. 7.3.2.3.3 Restore to Default configuration...
-
Page 17: Operation
In this case, the key can be recharged by inserting coins in the coin acceptor, until the desired value, and then by pressing the A button. The display shows: Data being followed by: Credit xx.xx € saved … TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page... -
Page 18: Product Disposal
- detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time. - Page 19 TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
- Page 21 NOTICE Alberici S.p.A. reserves the right to change the features and the specifications to the equipment described at any time and without notice, in the pursuit of the incessant improvement of its products. TIMEBOX ACS ALBERICI Manual Rev. 1.05 Page...
- Page 22 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
