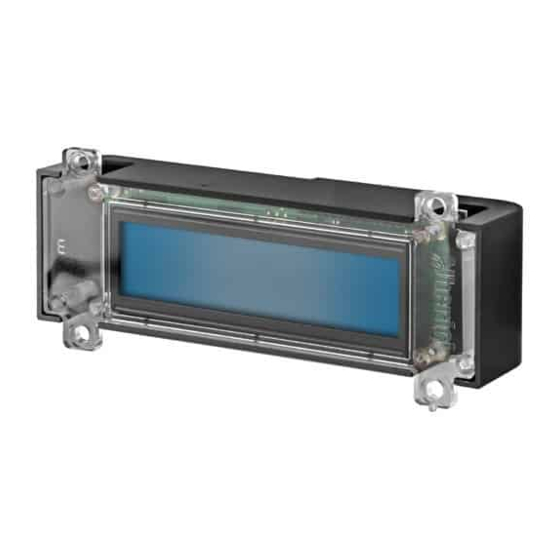

Cms arm control pcb for money-changers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CMS Arm control pcb for money-changers
Operator's Manual
CONTROL PCB for MONEY-CHANGERS
Rev. 1.00 EN
Via Ca' Bianca 421
40024 Castel San Pietro
Terme (BO) - ITALY
CHANGEONE CMS Arm
Operator's Manual
Progettazione e produzione di sistemi di pagamento, accessori per videogames e
macchine vending
Design and manufacture of payment systems, accessories for videogames and
vending machines
Tel. + 39 051 944 300
Fax. + 39 051 944 594
http://www.alberici.net
info@alberici.net
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHANGEONE CMS Arm and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici CHANGEONE CMS Arm

Summary of Contents for Alberici CHANGEONE CMS Arm

  • Page 1 CMS Arm control pcb for money-changers Operator’s Manual CONTROL PCB for MONEY-CHANGERS Rev. 1.00 EN CHANGEONE CMS Arm Operator’s Manual Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’...
  • Page 2 This manual has been prepared with the utmost care. Nevertheless, it is not possible to assure at any time the exact correspondence of the descriptions to the product features. Alberici SpA shall not be held liable by the User for any damage, losses, or third party claims arising from any uses of the manual or of the product.

  • Page 3: Table Of Contents

    CONTENTS Introduction ............................... 4 Mounting and size ............................. 4 3. Power supply and connections ........................5 4. Operation …………………………………………………………………………………………………………………..7 5. Menu functions ..............................10 7. CMS ARM PCB as replacement for CMS Freescale PCB ................21 8. Disposal of the product........................... 22 9.

  • Page 4: Introduction

    Please read carefully this handbook, to obtain the most from your device. Introduction The ChangeOne CMS ARM p.c. board is equipped with a high performing ARM microprocessor, enabling a large number of functions. The “Full” version of the CMS Arm pcb (CMS Arm “F”) is equipped with back-up battery and can support POS terminals (Nayax, Worldline Valina, PayTer).

  • Page 5: Power Supply And Connections

    12 Vdc, 500 mA HOPPER (max.): 24 Vdc, 2 A PUSHBUTTON ILLUMINATION (max. draw / each): 100 mA Alberici can provide the 340W power box that is used in Alberici machines. Connections and Pin-outs (TTL2) (TTL1) P10 = 12-24V-ccTalk data...
  • Page 6 System configuration 3.2.1 Default configuration The CPU is preset by default as follows (unless requested for different setup): Control Board Parameters Pay-out mode = AUTOMATIC Bonus = DISABLED Level sensors = DISABLED Hopper S11 Parameters Hoppers no. 1 / 2 (*) = € 2.00 = ENABLED Hopper AH4 discriminator [ccTalk] Preset as no.

  • Page 7: Operation

    (coin) or that he wants to purchase (token). The pushbutton connected to P8 also allows the User to CHOOSE THE DISPLAY LANGUAGE she/he prefers to interact with. English, French, German, Italian and Dutch are available; other languages and currencies can be configured by using the Alberici Babbel Software - please see relevant Instructions).
  • Page 8 AUTOMATIC MODE 4.2.1 CASH: when a note or coin is inserted, the credited amount is displayed, and the control board starts the pay-out by the hopper(s). The pay-out will contain coins from both the hoppers. If the CPU is set to Tokens+Change, all the tokens that can be bought by the inserted sum will be dispensed, and change will be returned if any.
  • Page 9 4.4.2 Operation with Service or Master Card/Key (see also section 5.2.4.4) Insert the Service Card/Key (white) or the Master Card/Key (black) in the ACS reader to get access to the Service Menu (no need to open the cabinet in which the system is housed). The Service menu allows to: 1) initialize the User Card/Keys, as well as to 2) check the Accounts Data.

  • Page 10: Menu Functions

    Menu functions MENU MAIN STRUCTURE CHANGEONE Promo message EXIT SHOW PERIPHERAL UNITS MENU SHOW ACCOUNTS Notice: PIN is requested access some sub-menu RESET ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER RESTORE DEFAULT CONFIGURATION LANGUAGE BONUS SETUP MODIFY PIN PROMO (*) Bonus is only available with HopperOne S11, and only...
  • Page 11 5.2.1 S ERIPHERAL NITS This menu allows to check the state of the PERIPHERAL UNITS, for instance: HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 5.2.2 S HOW ACCOUNTS This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
  • Page 12 5.2.4 SETTING THE PERIPHERAL UNITS This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
  • Page 13 FUNCTIONS AVAILABLE ACCORDING TO THE TYPE OF HOPPER (SINGLE- or MULTI-COIN) AND TO THE TYPE OF PAY-OUT (COINS OR TOKENS or TOKENS+CHANGE RETURNED) Single-coin hoppers, and menu set for COINS Single-coin hoppers, and menu set for TOKENS Enable/disable option available, Enable/disable option available POS not working even if set to ‘enabled’...
  • Page 14 5.2.4.3 ISPENSING ETUP Allows to choose among dispensing COINS or TOKENS or TOKENS+CHANGE, and among MANUAL DISPENSING MODE. The value in the hoppers are set by this sub-menu. Level of the coins in the hopper(s) can be se as monitored or not. Set up Set up Set up...
  • Page 15 OPERATION AFTER SETTING THE PAY-OUT TABLE: when the User inserts money corresponding to any of the programmed levels, the hoppers will pay out the combination of pieces that the Operator has pre-programmed for the amount inserted (see section 6.1.A). SETTING THE PAY-OUT TABLE: Let us assume that HP1 has been set to 1 €, and that HP2 has been set at 0,10€.
  • Page 16 5.2.4.4 SET UP CASHLESS (only if the ACS reader is built-in) If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Card/Key Service Card/Key Operator Operation (black) for the (white) for the Card/Key owner manager...
  • Page 17 5.2.4.5 SET UP GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. SMS functions will not be working on Hermes GPS/GSM module; remote control will then be managed only through the Argo Portal or through the Argo App. Insert Name GSM / GPRS / GPS Insert Name...
  • Page 18 5.2.8 ANGUAGE SETUP English, French, German, Italian and Dutch are available as default. The Operatore can load other languages and currencies by using the Alberici Babbel Software - please refer to the relevant Babbel Software Instructions). LANGUAGE Seleziona lingua Choose language...
  • Page 19 To modify the existing PIN, press OK and enter the old PIN: to digit each code figure, first use keys UP and DOWN to set each figure, then confirm it by OK. Once the 4 figure has been confirmed, confirm by OK the whole old PIN: Enter PIN New PIN MODIFY PIN...
  • Page 20 5.2.13 E Press OK to go back to stand-by condition: Exit Menu CHANGEONE EXIT MENU in progress… Promo Messages 6.1 Messages on display CHANGEONE The following warning: OUT OF SERVICE is accompanied by the system check. For instance, the following sliding warnings: ...COIN ACCEPTOR…...

  • Page 21: Cms Arm Pcb As Replacement For Cms Freescale Pcb

    7. CMS ARM PCB as replacement for CMS Freescale PCB The new CMS and CCS ARM CPU p.c. boards have different connectors with respect to the old CMS and CCS. As a consequence, when replacing an old CMS / CCS pcb by a new ARM one, it is necessary to order the Hub “Concentrator”...

  • Page 22: Disposal Of The Product

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
  • Page 23 NOTA La Alberici S.p.A. ri riserva il diritto di apportare modifiche alle specifiche tecniche dell’apparecchiatura descritta in qualunque momento e senza preavviso, nell’ambito del perseguimento del miglioramento continuo del proprio prodotto.
  • Page 24 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 http://www.alberici.net Tel. + 39 051 944 300 40024 Castel San Pietro Fax.
