AL66 FG
modifiable ccTalk COIN ACCEPTOR
Quick Guide
Rev. 1.03

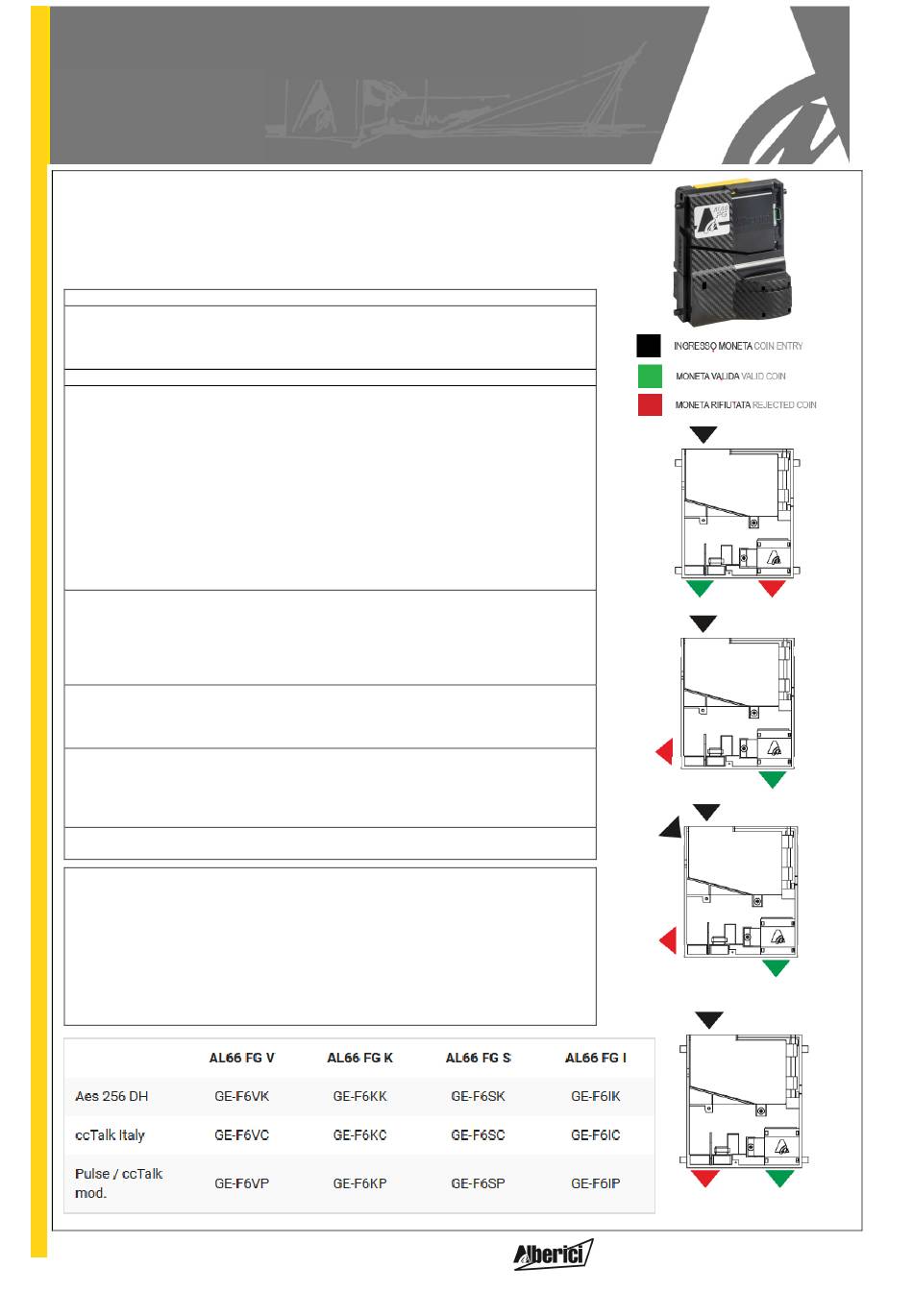

The modifiable ccTalk AL66 FG (WARNING: NOT ADMITTED FOR COMMA 6A)
is available in the following mechanical versions:
V = rejected coin sorted from bottom rear slot, accepted coin from bottom front slot
I = rejected coin sorted from bottom front slot, accepted coin from bottom rear slot
K = rejected coin sorted from slot low front end, dropping slot on top
S = rejected coin sorted from slot low front end, dropping slot at upper front end
Mechanical features
Format
Size
Weight
Protocol interfaces
Electrical features
Supply voltage min.
Supply voltage max.
Acceptance
Measuring
Stand by
Standard enegy save
Self- wake up
Output voltage max.
Output current max.
Input trigger voltage min.
Input voltage max
Input impedance
Coin acceptance
Coin channels number
Coin diametre min.
Coin diametre max.
Coin thickness
Speed
Timing data
Power-up recovery time
Wake-up recovery time
Pulse or time out tolerance
Ambient conditions
Working ambient temperature
Storage temperature
Humidity
EMC performance
This product is compliant with EN55014-1 and EN55014-2 test specification
> 8-bit top-performing CPU microcontroller with 32 KB Flash-memory, highly
immune to magnetic interference and to environmental conditions.
> 13 discriminating parameters.
> 6 magnetic sensors and 2 optic detectors combine to guarantee the most
accurate capacity of discrimination. Data-digitizer interface designed to cope
at best with bi-metal and magnetized coins. The system sharpens selectivity
and security, and makes the programming process easy and fast.
> 1 wire-clipper and 2 wire-tearers in version V provide mechanical shielding
against fishing-fraud. Coin-Guard anti-cheat system, based on the synergy of
3 suitably positioned optic sensors.
Technical specs
3½" standard
88 x 102 x 54 mm
212 g
Pulse, modifiable CCTALK
12 VDC (8 VDC min)
24 VDC (28 VDC max)
350 mA(30 ms)/100 mA
≤25 mA
≤30 mA
≤5 mA
≤7,5 mA
50 V (OC, active low)
250 mA
3 V (OC, active high)
50 V (OC, active high)
≈55 kΩ
16
16 mm
32 mm
1 to 3,4 mm
3 coins/sec (V) – 4 coins/sec (S, K, I)
≤200 ms
≤50 ms
± 2%
0°C to 60°C
-30°C to 70°C
up to 75% (non condensing) for standard
up to 95% for tropicalized version
QUICK GUIDE AL66 FG
.
MOD
,
1 of 6
CCTALK
Advertisement
Related Manuals for Alberici AL66 FG modifiable ccTalk
Summary of Contents for Alberici AL66 FG modifiable ccTalk
- Page 1 AL66 FG modifiable ccTalk COIN ACCEPTOR Quick Guide Rev. 1.03 The modifiable ccTalk AL66 FG (WARNING: NOT ADMITTED FOR COMMA 6A) is available in the following mechanical versions: V = rejected coin sorted from bottom rear slot, accepted coin from bottom front slot I = rejected coin sorted from bottom front slot, accepted coin from bottom rear slot K = rejected coin sorted from slot low front end, dropping slot on top S = rejected coin sorted from slot low front end, dropping slot at upper front end...
- Page 2 TAKE CARE! The coin selector must be installed 90°-95° with respect to level plane. Because of the built-in advanced security system, it is essential that the whole coin path gets not hindered. Alberici is not responsible for any malfunctioning due to lack of compliance with such recommendations. INHIBITION OF PROGRAMMED COINS dip-switch nr.
- Page 3 Implementing the Cctalk commands The complete description with examples of ccTalk commands is given in our AL66 Technical manual (download it from our web site www.alberici.net ). The following page shows a summary table of the implemented commands. QUICK GUIDE AL66 FG...
- Page 4 Address random MDCES support, non volatile Request polling priority [02][32] 100x50=500 ms Request status [00] Ok Request manufacturer id 'Alberici' Request equipment category id 'Coin Acceptor' Request product code 'ALNNxn' NN=55/66, x=V/I/K, n=1-3 Request database version [01] remote file programming Request serial number From 0 to 16.777.215...
- Page 5 PC USB serial port. Download the package including the drivers for the programming interface tool and the application “AlbericiCoinSelector.exe” (from our web site http://www.alberici.it, “Downloads” section). Install the drivers into your PC, then install the application; the icon here aside will be shown on your PC Desktop: Make use of the programming-testing-power tool K-P1C-000009.
- Page 6 QUICK GUIDE AL66 FG 6 of 6 CCTALK...
