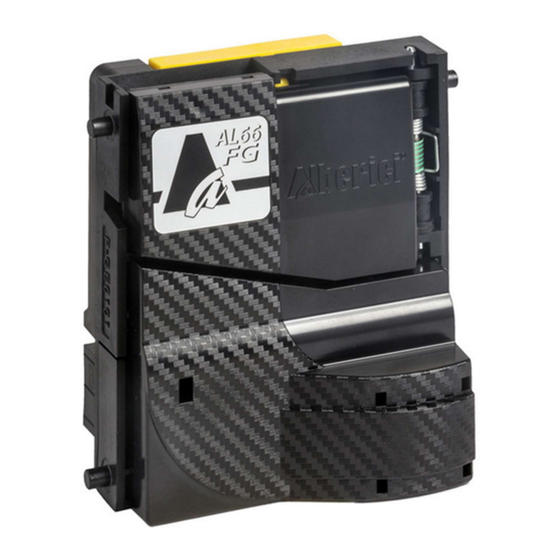

Alberici AL66 FG ARM Operator's Manual

Pulse / mod. cctalk coin acceptor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AL66 FG
ARM
Pulse / mod. ccTalk
COIN ACCEPTOR
Operator's Manual
Rev. 2.01
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL66 FG ARM and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici AL66 FG ARM

Summary of Contents for Alberici AL66 FG ARM

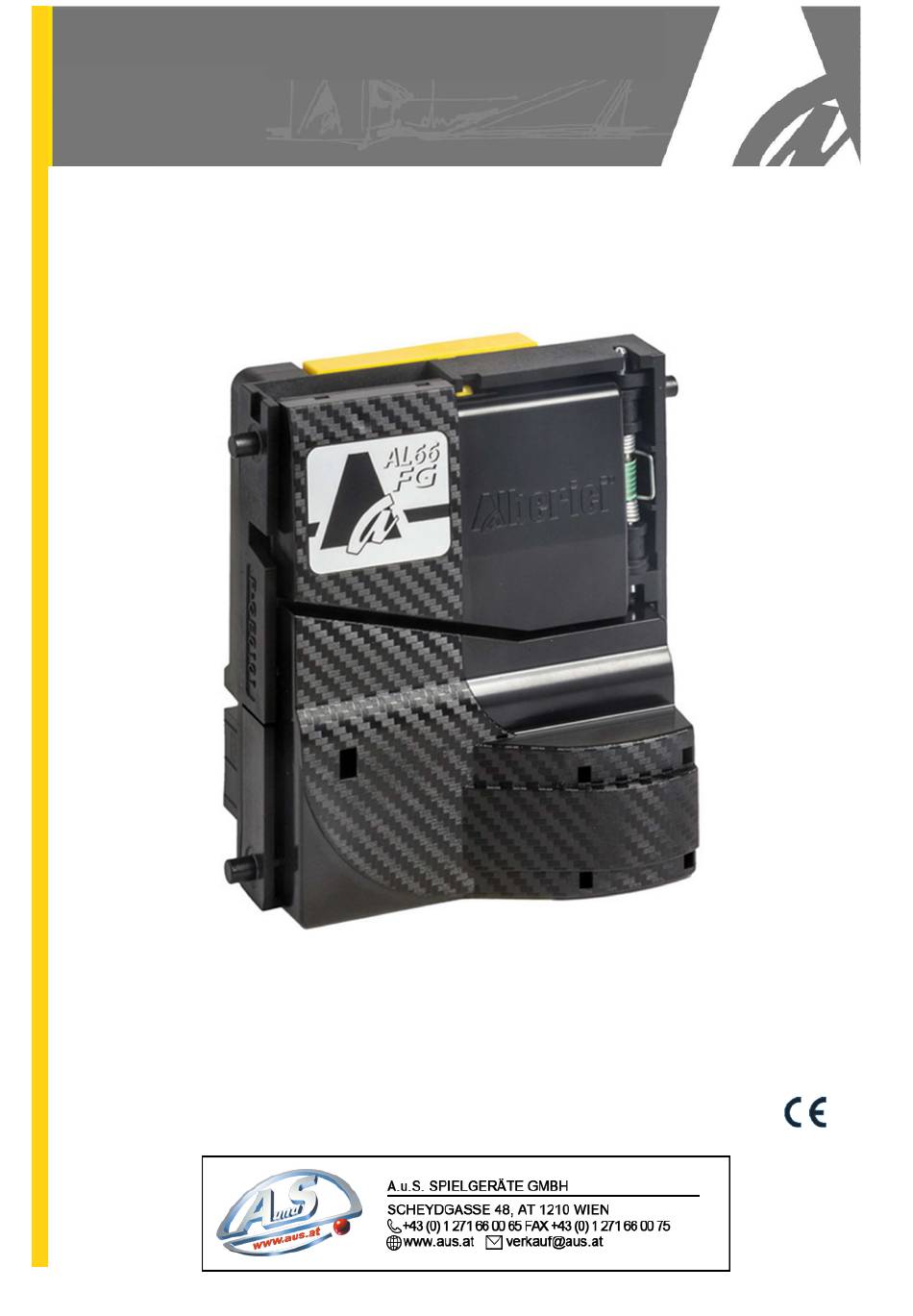

  • Page 1 AL66 FG Pulse / mod. ccTalk COIN ACCEPTOR Operator’s Manual Rev. 2.01 User Manual...

  • Page 3: Table Of Contents

    CONTENTS 1. Package content ..............................5 2. Product identification ............................. 5 3. Product description ............................... 5 4. Technical specifications ............................ 6 5. Installation ................................7 6. ccTalk Communication Protocol ........................12 7. Driving SPI peripheral devices ..........................28 8. Maintenance ................................ 31 9.
  • Page 4 Alberici S.p.A. reserves the right to modify, without prior notice and in any way, any part of this manual and the technical specifications of this product, as part of the continuous pursuit of improvement of its products.

  • Page 5: Package Content

    Dear Customer, we would like to thank you and congratulate you on your choice of the AL66 FG ARM Pulse / ccTalk electronic coin selector. We are confident that you will appreciate the quality and performance. Please read this manual carefully to get the most from this product.

  • Page 6: Technical Specifications

    Technical Specifications 32-bit top-performing ARM microcontroller with 36 KB Flash-memory, highly > immune to magnetic interference and to environmental conditions. Six magnetic sensors and one optic detector combine to guarantee the most > accurate capacity of discrimination. Data-digitizer interface copes at best with bi-metal and magnetized coins.

  • Page 7: Installation

    PAY ATTENTION! The coin selector must be installed 90°-95° with respect to level plane. Because of the built-in advanced security system, it is essential that the whole coin path gets not hindered. Alberici is not responsible for any malfunctioning due to lack of compliance with such recommendations. MOUNTING of the “S-TYPE COIN ACCEPTOR (FACE PLATES) Various models of front entries are available, to whose bracket the coin mechanism gets firmly hooked.
  • Page 8 The sorter can be mounted directly at the bottom of the “S”-type coin acceptor, by the dedicated AA-0703 bracket. MOUNTING of the “S”-TYPE COIN ACCEPTOR in the 5” ADAPTOR When incorporated into the 5” adaptor (SG-5000), and by adding the upper reject lever and the relevant torque spring, the 3,5”...
  • Page 9 Install the drivers in the Host using the relevant executable file (i.e.: for Windows 7 64bit: “VCP_V1.5.0_Setup_W7 x64_64bits.exe”), available in the Alberici web site (FG coin acceptor page). Win 10 includes such drivers by default. Only after the drivers ("STMicroelectronics Virtual COM Port") are installed, connect the coin acceptor through the USB;...
  • Page 10 Download the application “Programming sw 66 v. 2 - AlbericiCoinSelector.exe” and the drivers for the programming interface tool from our web site http://www.alberici.it, “Downloads” section at the bottom of the coin acceptor page). Install the drivers into your PC, then install the application on your desktop or in a different convenient place Make use of the programming-testing-power tool K-P1C-000009.
  • Page 11 DRIVING THE NL3, NS3, VARIANT, and iS SORTERS To attribute the proper sorting commands, please refer to the output paths shown below: SORTING COMMANDS CCTALK SORTERS PULSE SORTERS Dir 1 = cctalk 01 activates Dir 1 = no OUT Dir 2 = cctalk 02 activates Dir 2 = OUT 5 Dir 3 = cctalk 03...

  • Page 12: Cctalk Communication Protocol

    Protocol is mostly used in gaming and casino machines but it can be implemented in any other tipes of machines that use same type of devices. It is public protocol and free to use. Pls. find documentation on: www.cctalk.org. Communication protocol of ALBERICI coin selectors AL55I66 complies with generic specification 4.4 6.1 Communication specifications Serial communication was derivated from RS232 standard.
  • Page 13 Table 6.1 Standard address for different types of devices Address for Alberici Hopper is factory set as 3; the user can change the default address by using the MDCES commands Address change or Address random or by setting Hopper dip-switches. For details see cctalk42-2.pdf, Address poll.
  • Page 14 6.2.4 Data There is no limitation in use of data formats. Data could be BCD (Binary Coded Decimal)numbers, Hexa numbers or ASCLL strings. Intrepretation as well as format is specific to each header use, and will be explained in separate chapter. 6.4.5 Checksum Message integrity during transfer is checked by use of simple zero checksum calculation.
  • Page 15 Host sends: [Dir] [00] [01] [F6] [Chk] Coin s. responds: [01] [Nr.b] [Dir] [00] [a1] [a2] ..[an] [Chk] Nr. b is number of data bytes-characters sent by coin selector, and a1 to an are ASCII characters. For Alberici coin selector example of message string is: Host sends: [02] [00] [01] [F6] [07] Coin s.
  • Page 16 Coin s. responds: [01] [09] [02] [00] [75][31][2E][30][20][70][31][2E][30][2E][30] [71] Coin selector response is ‘u1.0 p1.0.0’. ALBERICI coin selectors has program firmware label divided in two parts. First label u is for protected FLASH memory program(monitor program) revision. First digit is for major changes and second for minor changes. In this case it is u1.0.
  • Page 17 Coin selector has internal mechanism to block the coin acceptance and registration of all events if polling time elapse. For ALBERICI coin selector acceptance speed is from 3 to 4 coins per second ( Dependant on mechanical type of coin selector - S type is faster than V type - and coin.
  • Page 18 The responds to that command is version of coin data base. Version of data base is important for coin selectors with remote programming support. For all ALBERICI coin selectors type AL55/66 current data base version is 00. Message format is: Host sends: [Dir] [00] [01] [F3] [Chk] Coin s.
  • Page 19 Coin selector responds with two data byte representing the state of DIP-switches and state of inputs In1(pin 6) and In2(pin 5), if In2 is programmed as input. ALBERICI coin selectors has one or two banks of DIP-switches for various data or operating modes setting.
  • Page 20 Bits from 0 do 15 determinate coin positions from 1 to 16. Positions are sent by coin selector during reading credit buffer or error codes (header 229). Number of coin channels in new ALBERICI coin selectors AL55/66 is same as number of position(16). Message format is: Host sends: [Dir] [02] [01] [E7] [LSB Mask.] [MSB Mask.] [Chk]...
  • Page 21 The second byte point to a sorter path or indicate error code. If during coin acceptance any error occurs, stored value of coin position is 0, hex [00]. Error codes supported in ALBERICI coin selectors AL55/66 are shown in table 6.4. Code d.
  • Page 22 (direction of exit). Firs byte of data (LSB) represent coin position and second byte of data point to sorter path. ALBERICI coin selectors has support for most existing sorters that has direct drive of coils from coin selector with open collector transistor.
  • Page 23 Host sends: [02] [00] [01] [C4] [39] Coin s. responds: [01] [02] [02] [00] [E5] [06] [10] ALBERICI coin selectors has date of production written in monitor part of MCU FLASH memory which is not possible to change without factory FLASH reprogramming.
  • Page 24 Coin s. responds: [01] [03] [02] [00] [00] [00] [00] [FA] 6.5.2.30 Command 188 [hexBC], Request default sorter path For ALBERICI coin selectors AL55/66 the default sorter path is always hex[01]. Example of message string for coin selector(address 2) is: Host sends: [02] [00] [01] [BC] [41] Coin s.
  • Page 25 Host sends: [Dir] [00] [01] [AA] [Chk] Coin s. responds: [01] [04] [Dir] [00] [a1][a2][a3][a4] [Chk] For ALBERICI coin selectors base year is 2000. Example of message string for coin selector(address 2) is: Host sends: [02] [00] [01] [AA] [53] Coin s.
  • Page 26 6.5.4 ALBERICI specific commands First command header for specific factory setting and testing is 255 Factory set-up and test. This command has several modes of use and some of them are factory secret and are not explained in this document.
  • Page 27 IF REQUESTED WHEN PLACING THE ORDER FOR THE COIN ACCEPTOR(S). ERROR CODE LIST Else, make use of the Alberici Coin Selector programming software to enable transmission. Tick the checkbox in the menu “Config. CCTalk","Settings"/"Activate Error Events in Coins Test", then press “Write data” key to...

  • Page 28: Driving Spi Peripheral Devices

    SPI Display AD01: serial protocol The Alberici display AD01 consists of standard 16x2 characters LCD module with parallel interface, background light, equipped with a small controller pcb for SPI communication with the host. It has been designed to be used as a display accessory for AL66 FG coin selectors, but it can be used with any other host capable to interface through SPI.
  • Page 29 Message structure The display can work only as slave and does not reply to any of the command messages sent by the host. There are two different sets of commands: Display coin selector data Display message First set is used to show specific coin selector data and second is used to show any display message. 7.2.1 Display coin selector data The coin selector will send to the display controller the following command string: [ 0xC0 ]...
  • Page 30 The byte of the Display light intensity allows to set the duty cycle of the driver of the light brightness (Pulse Width Modulation). When the display is connected to the coin selector, the intensity of its background light will then be stored into the coin selector NV memory (FLASH), and it will remain stable even if power supply is changed.

  • Page 31: Maintenance

    Maintenance To ensure perfect functioning, clean the coin path approx. every 10.000 dropped coins. Take special care of the dirt on the optical sensors. 1 Cleaning the coin path Use a clean cloth moistened with glass cleaning product. Do not use smeary liquids. 2 Cleaning the optical sensors: Insert a flat screwdriver as in the picture, then carefully force the lower...

  • Page 32: Warranty

    Before sending the product, please get in touch with your Dealer +43 (0) 1 271 66 00very malfunctions can be fixed via a simple phone call, saving you costs and time. Alberici S.p.a. will verify that warranty is applicable, i.e. that problem is not caused by: - transport damages...
  • Page 33 IRECTIVE IRECTIVE La ditta Alberici S.p.A., avente sede in via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO) – Italia, D I C H I A R A Che il sistema classificato nella famiglia di prodotto apparecchio elettrico d’uso domestico e similare –...
  • Page 35 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of continual improvement of this product...
  • Page 36 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
