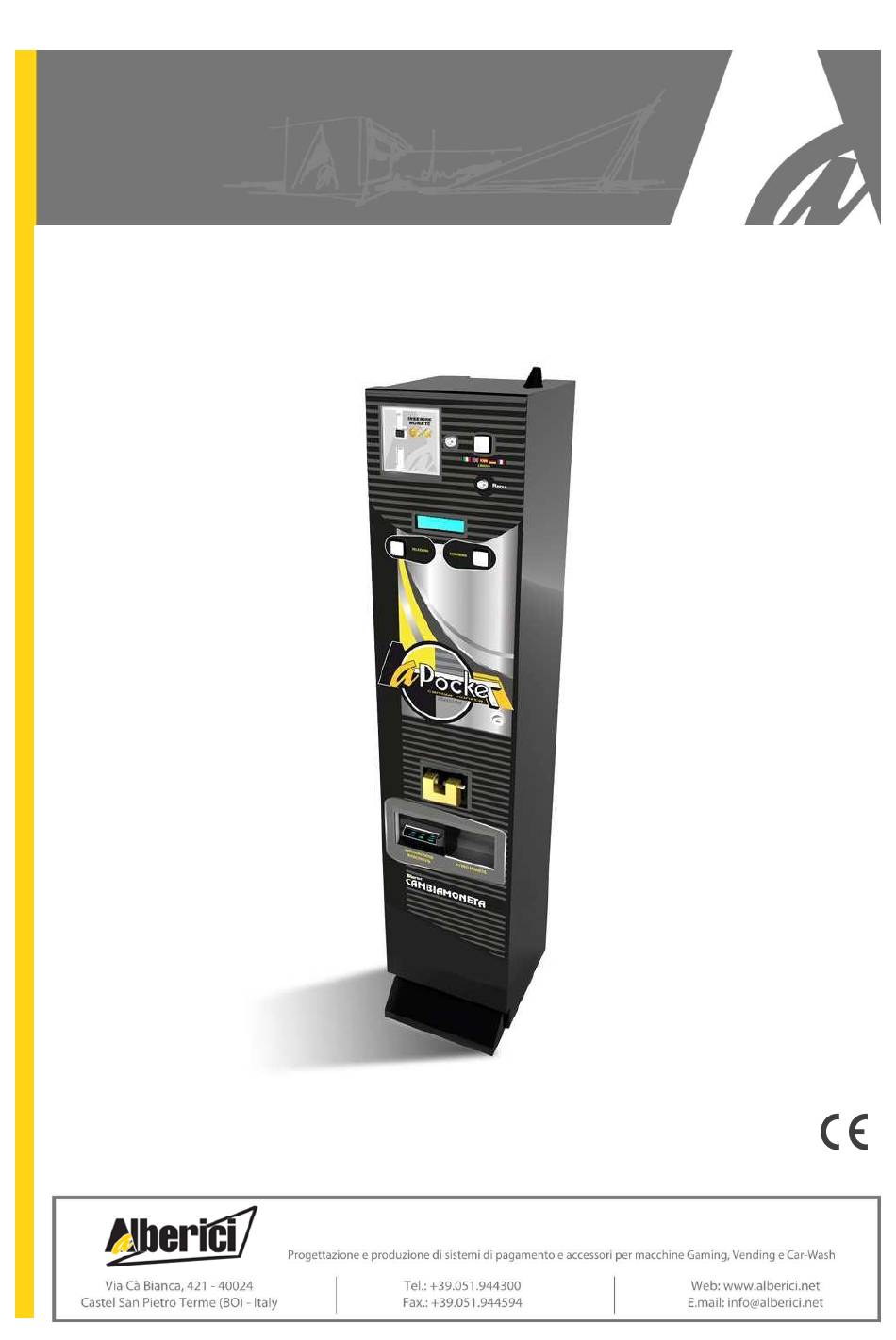

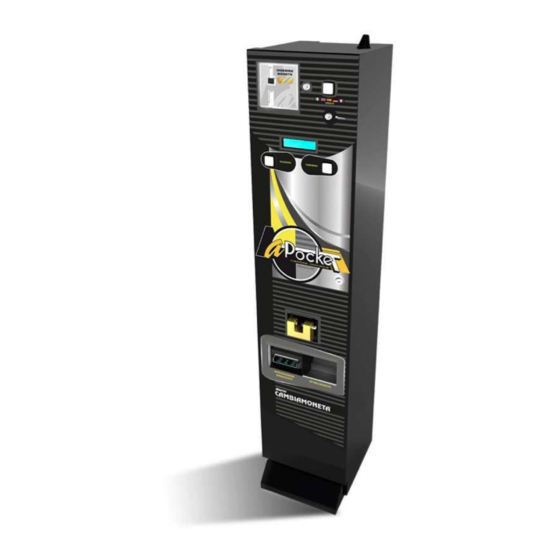

Pocket CM
Operator's Manual
Rev. 1.04 EN
ARM
Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash
Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pocket CM ARM and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici Pocket CM ARM

Summary of Contents for Alberici Pocket CM ARM

  • Page 1 Pocket CM Operator’s Manual Rev. 1.04 EN Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...
  • Page 2 Alberici S.p.A. reserves the right to modify, without prior notice and in any way, any part of this manual and the technical specifications of this product, as part of the continuous pursuit of...

  • Page 3: Table Of Contents

    CONTENTS Package content..........................4 Components description ....................... 5 Product description ........................5 Warning ............................6 Installation ............................ 6 Operation ............................7 System configuration ........................8 Messages ............................ 15 Cleaning of the Note Validator ....................20 11. Disposal of the product ....................... 22 12.

  • Page 4: Package Content

    Please read carefully this handbook, to obtain the most from your machine. 1. Package content The package contains: 1. the Alberici POCKET Change machine 2. 1 pair of keys 3. the power cable (see inside of money box) 4. the instruction manual (this manual) This product has been packed with the utmost care.

  • Page 5: Components Description

    (*) The system requires that the B-to-B Alberici SIM card is inserted into the Hermes module SIM slot, and that a subscription is entered into the ARGO Portal, in order to control the machine via the Internet.

  • Page 6: Warning

    Available functions - Change of notes and coins into 1 denomination coins/tokens, or 2 denominations at User’s choice - Control of accounts via display (by on-board keys) - Programmable via menu (by on-board keys) - Change of display language by external “LANGUAGE/SEL+” pushbutton, at User’s choice. 4.

  • Page 7: Operation

    REPARATION FOR PAY ATTENTION FILL THE HOPPERS ONLY WHEN THE MACHINE IS OFF Open the door and locate extensions capacity on top of the hopper. Unlock the latch A (white slide) of the cover and slide the latter fully out towards the outside, until is positioned as a pilot chute: pour into the hopper the coins or tokens to be dispensed as change.

  • Page 8: System Configuration

    - when a note or coin is inserted (or when the value of one token is reached), ANUAL the button(s) will lit up green . Press the button corresponding to the change (token) desired. If the machine is set to Tokens+Change, it will be possible to choose the desired number of tokens.
  • Page 10 7.2 System connections PROG TTL2 TTL1 MDB / RS485 POWER IN / CCT POWER IN = from Concentrator Hub (+12/24V, CCTALK) P1 = OK PUSHBUTTON P2 = SEL- PUSHBUTTON P3 = SEL+/ LANGUAGE PUSHBUTTON TTL1 = POS Terminal PROG = socket for remote programming keypad 7.3 Menu functions 7.3.1 S URFING THE...
  • Page 11 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
  • Page 12 7.3.2 Show peripheral units This menu allows to check the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 7.3.3 Show accounts This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
  • Page 13 7.3.5 ETTING UP THE PERIPHERAL UNITS This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
  • Page 14 7.3.5.2 OIN SELECTOR SETUP The board automatically detects the presence of the coin selector during initial check. Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP state.
  • Page 15 7.3.5.A S ETTING P THE ABLE When the Pay-out Table is enabled, the Operator can configure 8 different combinations of change, each of them related to the amount introduced by the User. The LEVEL box can be set to a determined amount (typically, the accepted coin and note denominations), while the relevant HP1 and HP2 values can be set to: - number of pieces so that their calculation sums up to the amount set in the LEVEL box, if change in cash is handled;...
  • Page 16 LEVEL 4: By “OK”, confirm LEV5. By “+”, set Level 4 to 2,00€ and confirm. HP1 will automatically set to 2 pieces (2 x 1€). You can set the pay-out table so as dispense any of the following combinations: (A) 2x1€ coins, or (B) 1x1€...
  • Page 17 7.3.5.4 (only if the ACS reader is built-in) ASHLESS If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Key (black) Service Key (white) Operator Key Operation for the owner for the manager (yellow) YES (only Operator’s) Inizialize Service and Operator keys...
  • Page 18 7.3.6.5 GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. SMS functions will not be working on Hermes GPS/GSM module; remote control will then be managed only through the Argo Portal or through the Argo App. Insert name: Insert Name: LUCKY HALL...
  • Page 19 (*) By the buttons + and - , locate the letter/digit, and press the OK button to confirm your choice; the cursor will automatically move to the next character. There are 16 characters in the machine name, and 10 in the User Code. After confirming the last character, the name or the /code you have typed gets automatically saved.
  • Page 20 7.3.9 Language setup LANGUAGE Seleziona lingua Choose language Waehlen Ihre Sprache SETUP ITALIANO ENGLISH DEUTSCH 7.3.10 Promo It is possible to preset an advertisment on the display. Press OK: Digit text ------------------------ Press again OK, the pointer will highlight the first digit: by UP or DOWN, choose the character that you want to insert, then confirm by OK.
  • Page 21 7.3.12 Manual Refill Set Up Refill can take place when unit is empty or not. Allows to record the amount put in. MANUAL REFILL MANUAL REFILL SET UP SET UP MANUAL REFILL MANUAL REFILL Confirm?..Confirm?..(*) Shows “€” when set for coins €...

  • Page 22: Messages

    8. Messages Display contrast Should the contrast between the characters and the background be not convenient, adjust it as follows: a. disconnect the cable from socket POWER IN/CCT of the pcb, and power up the machine; b. hold down the “+” and “-“ buttons of the pcb at the same time, and plug the cable into socket POWER IN/CCT;...
  • Page 24 Messages from the Note validator 8.2.1 OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): nr of red Description flashes Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only) Low power supply...

  • Page 25: Cleaning Of The Note Validator

    9. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts.

  • Page 26: Disposal Of The Product

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.

  • Page 27: Customer Service

    13. Customer Service Alberici S.p.a. will be pleased to offer all the necessary information on use, ordinary maintenance and technical service. Please call (+39) 051 944300 and specify if your request concerns information on use or technical support.
  • Page 28 ATTACHMENT: Spare parts List...
  • Page 33 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of continual improvement of its product.
  • Page 34 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
