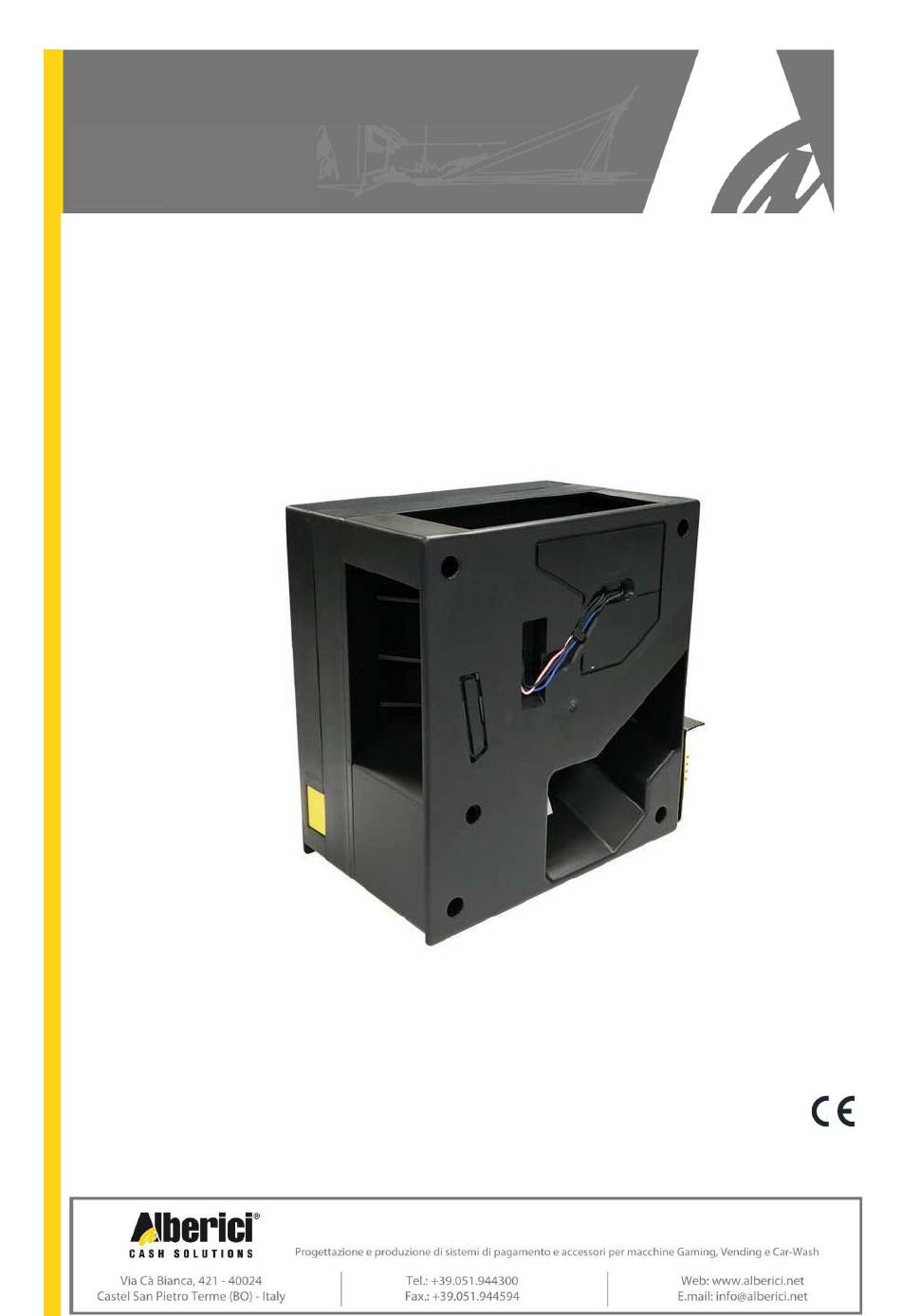

  • Page 1 Hopper Kid Std Pulse Operator’s manual Rev. 1.02 Hopper Kid Std Pulse Standard / Reverse Operator’s Manual...

  • Page 2: General Description

    Its features make it easily compatible with all the control boards normally available on the market. When matched to Alberici electronic coin selectors, the Hopper becomes the heart of change machines, and it can be connected to our coin acceptor without any electronic interface.

  • Page 3: Overall Dimensions

    2.1 Overall dimensions 2.2 Connector position Reverse version (connector located on the same side of the output of the coins) Standard version (connector located on the opposite side of the output of the coins)

  • Page 4: Installation

    2.3 Installation fasten the slide support, slide the hopper in for electrical connections, please see chapter 3 66mm 92mm ø 5.5 mm 118mm 68 mm 214mm Please use conical head bolts slide hopper in Base fixing plate of the hopper (included with the hopper) ALWAYS CONNECT THIS METAL PLATE TO...

  • Page 5: Electrical Description

    Electrical description All the signals handled by the hopper are in negative logic: each signal is considered active when it is LOW (GND). 3.1 CINCH connector Pin-Out This connector can be found on the right side (standard) or left side (reverse) of the hopper. The functions of the pins will be described in the next paragraphs.
  • Page 6 3.3 Input signals There are three available input signals: IN1 IN2 IN3 . With these signals, it is possible to determine the modality of operation (see chapter 4), the reset of the hopper and to start the dispensing. The equivalent pins are IN1 pin4 To select the type of operation IN2 pin8...

  • Page 7: Operating Commands

    4. Operating commands Please determine in advance how your hopper must operate, since it will be necessary to choose the working mode (type 0, 1 or 2) best suitable for your requirements. This hopper can work in three different ways, Type0 Type1 Type2 … 4.1 Selection of working mode The selection of conditions can be made by IN1 and IN2 inputs (pin 4 and pin 8).
