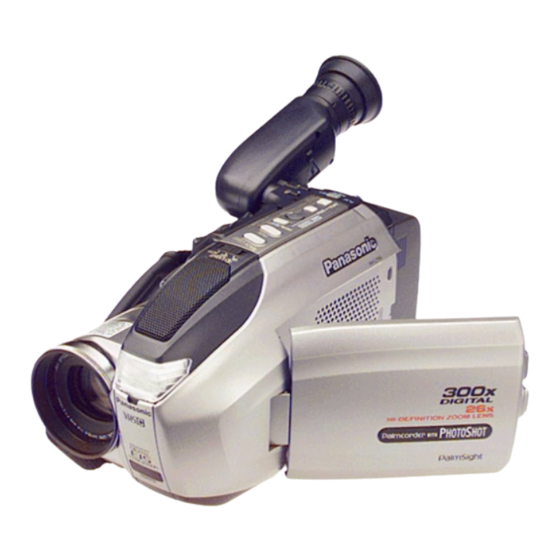

Panasonic Palmcorder VHSC PalmSight PV-L759 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Camcorder
  5. Palmcorder Palmsight PV-L759
  6. Service manual

Panasonic Palmcorder VHSC PalmSight PV-L759 Service Manual

Compact vhs camcorder
Hide thumbs Also See for Palmcorder VHSC PalmSight PV-L759:
Table of Contents

Advertisement

Quick Links

MODELS: PV-L759D/ PV-L779D
PV-L859D
ITEM
SPECIFICATION
Compact VHS Camcorder: DC 6V
Power Source
AC Adaptor: 110/120/220/240V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6V
Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)
Power
AC Adaptor: 24 W
Consumption
1.2 W (when not in use.)
Video Signal
EIA Standard (525 lines, 60 fields) NTSC color signal
Head: 2 rotary heads plus flying erase head. Helical scanning system
4 rotary heads plus flying erase head. Helical scanning system
Video
Signal-to-Noise Ratio: SP: more than 43 dB
Recording
SLP: more than 41 dB
System
Horizontal Resolution (Color/Monochrome) Recording: more than 300 lines
Head: Normal Mono: 1 stationary head
MIC Input Level (M3 type) - 70 dB
Frequency Response: Normal Mono: SP: 100 Hz - 8 kHz
Audio
Signal-to-Noise Ratio: Normal Mono: SP: more than 42 dB
SP: 1-5/16 i.p.s (33.35 mm/sec), SLP: 7/16 i.p.s (11.12 mm/sec)
Record/Playback Time: SP: Max. 30 min, SLP: Max. 90 min, with TC-30 Tape
Tape Speed
FF Time: Less than 7 min. (TC-30 Tape)
REW Time: Less than 4 min. (TC-30 Tape)
Tape width 0.5 inch (12.7 mm) high density tape
Tape Format
Pick-Up
Sequential color difference field reverse system
System
1. PV-L759D (Compact VHS Camcorder)
2. PV-L779D (Compact VHS Camcorder)
3. PV-L859D (Compact VHS Camcorder)
Regarding the Service Manual of the AC Adaptor for model PV-A17, please refer to the Service Manual / Order
No. MKW9512M302.
®
TM
1 2 3
–
Playback: more than 230 lines
SLP: 100 Hz - 5 kHz
SLP: more than 40 dB
®
Compact VHS Camcorder
MODEL: PV-A17
ITEM
SPECIFICATION
Pick-Up
One integral color filter Charge Coupled Device (CCD)
Device
26 : 1 zoom lens, F1: 1.6 with auto iris control
Focal length: 3.8 mm - 98.8 mm
(4.5 mm - 117 mm: When recording.)
Lens
(43.2 mm - 1123.2 mm: When converted to a 35 mm still camera.)
4 speed power zoom function
Lens filter diameter: 49 mm
0.5 inch (12.7 mm) Electronic Viewfinder
Viewfinder
– –
0.5 inch (12.7 mm) Liquid Crystal Color Electronic Viewfinder
4.0 inch (101.6 mm) Liquid Crystal Display
LCD Monitor
Memory
2 MB CompactFlash Card
FINE: 640 x 480 pixels
Image Size
Normal: 320 x 240 pixels
FINE: Approx. 15 images
Storage
Normal: Approx. 60 images
Image Format
JPEG
Minimum
2.0 lx (F1: 1.6) 0.20 footcandles
Illumination
10 lx (F1: 1.6) 1.0 footcandles (EIA Standard)
Required
32°F (0°C) ~ 104°F (40°C) (Temperature)
Operating
10% ~ 75% (Humidity)
Condition
2.4 lbs. (1.09 kg)
Weight
Dimension
4-1/4" (107 mm) (W) X 4-5/8" (118 mm) (H) X 7-1/8" (180 mm) (D)
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
© 1999 Matsushita-Kotobuki Electronics Industries LTD.
All rights reserved. Unauthorized copying and distribution
is a violation of law.
ORDER NO. MKE9902205C1
B15 (U.S.A.)
B4 (CANADA, PUERTO RICO)
PV-L759
PV-L779
PV-L859
1 2 3
–
– –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Palmcorder VHSC PalmSight PV-L759 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic Palmcorder VHSC PalmSight PV-L759

Summary of Contents for Panasonic Palmcorder VHSC PalmSight PV-L759

  • Page 1 ORDER NO. MKE9902205C1 B15 (U.S.A.) B4 (CANADA, PUERTO RICO) Compact VHS Camcorder ® PV-L759 PV-L779 PV-L859 MODELS: PV-L759D/ PV-L779D PV-L859D MODEL: PV-A17 ITEM SPECIFICATION 1 2 3 ITEM SPECIFICATION 1 2 3 Pick-Up Compact VHS Camcorder: DC 6V One integral color filter Charge Coupled Device (CCD) Power Source Device AC Adaptor: 110/120/220/240V AC, 50/60 Hz...

  • Page 2: Table Of Contents

    ! WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians.
  • Page 3 REPLACEMENT PARTS LISTS BEFORE REPLACING PARTS, READ THE FOLLOWING: Electrical Replacement Notes 1. Item numbers with capital letter E (Example: E1, E2,...) REPLACEMENT NOTES in the Ref. No. column are shown in the exploded views. The E item numbers are also printed on the same page General Notes at the top of the column.
  • Page 4 MECHANICAL REPLACEMENT Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks PARTS LIST =TQ=========================fkco^oba=objlqb=`lkqoli=rkfq ============spntMMPU========E=^I`=F===========================R <The complete Exploded Views are shown in this manual.> =TR=========scqtMMNP========aofsbo=plcqt^ob=ca=clo=tfkaltp====R ============================VRLVU EXPLODED VIEWS =TS=========================^mmof`^qflk=plcqt^ob=`aJolj VCR MECHANISM SECTION ============scqtMMNQ========E=`=F=============================R =TT=========================fkpqor`qflk=_llh ============snqtMTQR^=======E=^I`=F===========================R ============snqtMTQS^=======E=_=F=============================R =UN=========sg^tMMOV========a`=`ljjr=`^_ib=tLmirdISs==========R ============lo=sg^tMMPM...
  • Page 5 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks NQV=========================bib`qolkf`=sfbtcfkabo=`^pb=_I OTT=========suvtMNVQ========j^fk=`^j=rkfq=====================N ============================^_p=obpfk OUQ=========sbntMOVQ========j^kr^i=cl`rp=s^of^_ib=obpfpqlo====O ============shjtNUMU========E=^I_=F========================!=Q ============================rkfq ============shjtNUNV========E=`=F==========================!=Q OUS=========sdqtMSMO========ifdeq=hkl_========================P NRN=========shjtNURV========pfab=`^pb=oI^_p=obpfk==========!=P OVM=========sp`tMVRN========bpa=mi^qb=iIpqbbi=================O NRQ=========================bvb=`^m OVR=========sj_tMPMS========perqqbo=pmofkd====================P ============shrtMNNM========E=^I_=F===========================Q OVT=========sjatMRNO========ibkp=mfb`b========================O NRS=========================il`h=pmofkd PMM=========sjatMQVQ========lmbkbo============================N ============sj_tMOPR========E=`=F=============================Q PMN=========sjitMNNN========^oj===============================O NRU=========================ibkp=eliabo PMR=========wRmbqJOM`ZNR====qr_b==============================N ============sjatMOTN========E=^I_=F===========================Q PMT=========sp`tMVRO========ibkp=bpa=mi^qbIpqbbi==============O NSM=========================fkpri^qflk=pebbqImi^pqf` PMV=========sjatMQUS========mfk`e=q^mb=drfab==================N ============sjwtMSMS========E=^I_=F===========================Q PNM=========sugtMMVR========fjmba^k`b=oliibo=rkfq=============N NSN=========================`^rqflk=i^_bi=_ PNO=========su^tMNUV========^rafl=`lkqoli=eb^a=rkfq===========N ============snitNNVV========E=^I_=F===========================Q...
  • Page 6 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SERVICE FIXTURE AND TOOLS ============schpMMO=========ifdeq=_lu=tL`e^oqp=pbq ==============schpMMO^========di^v=p`^ib=`e^oq ==============schpMMO_========`lilo=_^o=`e^oq ==============schpMMO`========obdfpqo^qflk=`e^oq ==============schpMMOa========obplirqflk=`e^oq ==============schpMMOv========ifdeq=_lu ============schpMMPJk=======obcib`qflk=`e^oq=pbq ==============schpMMP^========di^v=p`^ib=`e^oq ==============schpMMP_========`lilo=_^o=`e^oq ==============schpMMP`========obdfpqo^qflk=`e^oq ==============schpMMPa========obplirqflk=`e^oq ============schNNSQqct`O====tefqb=`e^oq======================================sba ============schNNSQqcdpO====do^v=p`^ib=`e^oq=================================sba ============schNNSQqc`_O====`lilo=_^o=`e^oq==================================sba ============schNNSQqc`qO====`lksbopflk=cfiqbo================================sba ============schNNSQi_uN=====ifdeq=_lu========================================sba ============schNNSQq`jMO====`liifj^qloEfkcfkfqv=ibkpF========================sba ============================Etfqe=cl`rp=`e^oqF ============schNNSQqi^MN====i^jm=============================================sba ============schNNSQq^oRU====^qq^`ejbkq=ofkd=ERUããF===========================sba ============schNNSQq^oRR====^qq^`ejbkq=ofkd=ERRããF===========================sba ============schNNSQq^oRO====^qq^`ejbkq=ofkd=EROããF===========================sba ============schNNSQq^oQV====^qq^`ejbkq=ofkd=EQVããF===========================sba ============schNNSQq^oQS====^qq^`ejbkq=ofkd=EQSããF===========================sba ============schNNSQq^oQP====^qq^`ejbkq=ofkd=EQPããF===========================sba...
  • Page 7 ELECTRICAL REPLACEMENT Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks PARTS LIST f`SMMS======oeRobQR^^JqN====f`I=mbofmebo^i=j`r=HQKRs==========bKpKaK ============================obdri^qlo (E1, E2, E3, E4, E5, E8, E52, E53) ============lo=u`SOcmQRMOmo=f`I=mbofmebo^i=j`r=HQKRs==========bKpKaK ============================obdri^qlo Ref. No. Part No. Part Name Remarks f`SMMT======_^SOUUcpJbO=====f`I=ifkb^o=il^afkd=jlqlo=aofsb f`SOMN======^kNPRUpJbN======f`I=ifkb^o=lmK=^jmK PRINTED CIRCUIT BOARD ASSEMBLY ============lo=rm`PRUdoJbN==f`I=ifkb^o=lmK=^jmK bN==========sbmtNSPR^N======j^fk=`K_K^K==================== =bKpKaK=oqi ============lo=rm`PRUdOJbN==f`I=ifkb^o=lmK=^jmK...
  • Page 8 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks nNMNM=======jp_NONU^EoF=====`efm nPMOU=======jpaNUNV^EoF=====`efm ============lo=Op^NRTSqNMSo=`efm ============lo=Op`QMUNqNMSo=`efm ============lo=Op_NONU^=====`efm ============lo=OpaNUNV^=====`efm ============lo=Op_NONU^f====`efm ============lo=OpaNUNV^f====`efm nNMNN=======fjuNqNMU========`ljmiu=`jm=pf=kmk=`efm nPMOV=======jpaNUNV^EoF=====`efm ============lo=ukQRMN=======`ljmiu=`jm=pf=kmk=`efm ============lo=Op`QMUNqNMSo=`efm nNMNO=======Op_NMTP=========`efm ============lo=OpaNUNV^=====`efm ============lo=Op_NPUSqNMMn=`efm ============lo=OpaNUNV^f====`efm ============lo=Op_NPUSqNMMo=`efm nQMMO=======ukQSMN==========`ljmiu=`jm=pf=kmkLmkm=`efm ============E=^=F nQMMP=======jpaNUNV^EoF=====`efm nNMNP=======Op_NRUR=========`efm ============lo=Op`QMUNqNMSo=`efm ============lo=Op_VTM=======`efm ============lo=OpaNUNV^=====`efm ============E=_I`=F ============lo=OpaNUNV^f====`efm nNMOM=======Op_NMTP=========`efm nQMMQ=======jpaNUNV^EoF=====`efm ============lo=Op_NPUSqNMMn=`efm...
  • Page 9 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks nSMNU=======jpaNUNV^EoF=====`efm aSOMN=======a^OMQr==========`efm ============lo=Op`QMUNqNMSo=`efm ============lo=j^NQP========`efm ============lo=OpaNUNV^=====`efm aSOMP=======j^NNM===========`efm ============lo=OpaNUNV^f====`efm ============lo=j^NNN========`efm nSMON=======jp_NONU^EoF=====`efm ============lo=NppPRRqbJNT==`efm ============lo=Op^NRTSqNMSo=`efm aSOMQ=======j^NNM===========`efm ============lo=Op_NONU^=====`efm ============lo=j^NNN========`efm ============lo=Op_NONU^f====`efm ============lo=NppPRRqbJNT==`efm nSMOO=======jpaNUNV^EoF=====`efm ============lo=Op`QMUNqNMSo=`efm RESISTORS ============lo=OpaNUNV^=====`efm ============lo=OpaNUNV^f====`efm oPMN========bogPdbvgNOOs====jdc=`efm============NLNSt=NKOh nSMOS=======aq^NQQbr========`efm oPMO========sogpaPaSUMM=====jdc=`efm===HJMKRB===NLNSt==SUM ============lo=jrkRNNPqN====`efm oPMP========bogPdbvdNMOs====jdc=`efm===HJOB=====NLNSt===Nh ============lo=rkRNNP=======`efm oPMQ========sogpaPaOOMN=====jdc=`efm===HJMKRB===NLNSt=OKOh nSMPR=======jpaNUNV^EoF=====`efm...
  • Page 10 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oPUQ========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRRR========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPUR========bogPdbvgOONs====jdc=`efm============NLNSt==OOM oRRS========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPUS========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRRU========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPUT========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRSP========bogPdbvgNRNs====jdc=`efm============NLNSt==NRM oPUU========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRSQ========bogPdbvgNRNs====jdc=`efm============NLNSt==NRM oPUV========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRSR========bogPdbvgNRNs====jdc=`efm============NLNSt==NRM oPVM========bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oRSS========bogPdbvgQTPu====jdc=`efm============NLNSt==QTh oPVN========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oRST========bogPdbvgQTPu====jdc=`efm============NLNSt==QTh oPVP========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oRSU========bogPdbvgQTPu====jdc=`efm============NLNSt==QTh oPVQ========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oRSV========bogPdbvgNRNs====jdc=`efm============NLNSt==NRM oPVR========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oRTM========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPVT========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oRTN========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPVU========bogPdbvgQTPu====jdc=`efm============NLNSt==QTh oRTO========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oQMO========bogPdbvdQTOs====jdc=`efm===HJOB=====NLNSt=QKTh oSMP========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oQNM========bu_OQsPPNgu=====`efm=^oo^v=================PPM...
  • Page 11 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oTPS========bogPdbvgPSPs====jdc=`efm============NLNSt==PSh oNMSS=======bogPdbvMoMMu====jdc=`efm============NLNSt====M= oTPT========bogPdbvgNNQs====jdc=`efm============NLNSt=NNMh oNMST=======sogpaPaNUMN=====jdc=`efm===HJMKRB===NLNSt=NKUh oTPU========bogPdbvgNUPu====jdc=`efm============NLNSt==NUh oNMSU=======sogpaPaNUMN=====jdc=`efm===HJMKRB===NLNSt=NKUh oTPV========bogPdbvgNNQs====jdc=`efm============NLNSt=NNMh oNMSV=======sogpaPaPPoM=====jdc=`efm===HJMKRB===NLNSt===PP oTQM========bogPdbvgNUPu====jdc=`efm============NLNSt==NUh oNMTP=======bogPdbvgOOPu====jdc=`efm============NLNSt==OOh oTQQ========bogSdbvgPoPs====jdc=`efm============NLNMt==PKP oNMTR=======bogPdbvgNMPu====jdc=`efm============NLNSt==NMh oTQR========bogSdbvgPoVs====jdc=`efm============NLNMt==PKV oNMTS=======bogPdbvgPVOu====jdc=`efm============NLNSt=PKVh oTQS========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oNMTU=======sogpaPaNUMN=====jdc=`efm===HJMKRB===NLNSt=NKUh oTQT========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oNMTV=======sogpaPaNUMN=====jdc=`efm===HJMKRB===NLNSt=NKUh oTQU========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oNMUM=======sogpaPaPPoM=====jdc=`efm===HJMKRB===NLNSt===PP oTQV========bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oNMUN=======bogPdbvMoMMu====jdc=`efm============NLNSt====M= oTRM========bogPdbvgNMRs====jdc=`efm============NLNSt===Nj oNNMN=======bogPdbvgOOPu====jdc=`efm============NLNSt==OOh oTRN========bogPdbvgNMRs====jdc=`efm============NLNSt===Nj oNNMO=======bogUdbvgSUNs====jdc=`efm============NLUt===SUM oTRO========bogPdbvMoMMu====jdc=`efm============NLNSt====M= oNNMP=======bogUdbvgSUNs====jdc=`efm============NLUt===SUM oNMMN=======bogPdbvgNMQu====jdc=`efm============NLNSt=NMMh...
  • Page 12 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oPMPV=======bogPdbvgNMNu====jdc=`efm============NLNSt==NMM oQMRT=======bogPdbvgPPOu====jdc=`efm============NLNSt=PKPh oPMQM=======bogPdbvgOOOu====jdc=`efm============NLNSt=OKOh oQMSM=======bogPdbvMoMMu====jdc=`efm============NLNSt====M= oPMQN=======bogPdbvgSUNu====jdc=`efm============NLNSt==SUM oQMSN=======bogPdbvgOOOu====jdc=`efm============NLNSt=OKOh oPMQQ=======bogPdbvgSUNu====jdc=`efm============NLNSt==SUM oQMSO=======bogPdbvgPPPu====jdc=`efm============NLNSt==PPh oPMQR=======bogPdbvgNMOu====jdc=`efm============NLNSt===Nh oSMMQ=======bogPdbvgNMOu====jdc=`efm============NLNSt===Nh oPMQU=======bogPdbvgSUNu====jdc=`efm============NLNSt==SUM oSMMS=======bogPdbvgOOPu====jdc=`efm============NLNSt==OOh oPMRM=======bogPdbvgUONu====jdc=`efm============NLNSt==UOM oSMMT=======bogPdbvgNMOu====jdc=`efm============NLNSt===Nh oPNOV=======bogPdbvgPVNs====jdc=`efm============NLNSt==PVM oSMMU=======bogPdbvgNMPu====jdc=`efm============NLNSt==NMh oPNPM=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh oSMMV=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh oPNPP=======bogPdbvMoMMu====jdc=`efm============NLNSt====M= oSMNM=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh oPNPQ=======bogPdbvMoMMu====jdc=`efm============NLNSt====M= oSMNN=======bogPdbvgQTPu====jdc=`efm============NLNSt==QTh oPNQM=======bogPdbvgNOOs====jdc=`efm============NLNSt=NKOh oSMNO=======bogPdbvgNOOs====jdc=`efm============NLNSt=NKOh oPNRM=======bogPdbvgNROs====jdc=`efm============NLNSt=NKRh ============E=^I`=F oPNRN=======bogPdbvgNUPu====jdc=`efm============NLNSt==NUh oSMNP=======bogPdbvgOOPu====jdc=`efm============NLNSt==OOh oPNRO=======bogPdbvgUONu====jdc=`efm============NLNSt==UOM...
  • Page 13 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oSMVO=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh `PNQ========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM oSMVP=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh `PNR========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN oSMVQ=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh `PNS========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM oSMVR=======bogPdbvgRSPs====jdc=`efm============NLNSt==RSh `PNT========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM oSMVS=======bogPdbvgNMQu====jdc=`efm============NLNSt=NMMh `PNU========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN oSMVT=======bogPdbvgNMOu====jdc=`efm============NLNSt===Nh `PNV========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN oSMVU=======bogPdbvgNMOu====jdc=`efm============NLNSt===Nh `POM========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN oSMVV=======bogPdbvgQTPu====jdc=`efm============NLNSt==QTh `PON========b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO oSNMM=======bogPdbvgQTOu====jdc=`efm============NLNSt=QKTh `POP========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM ============E=^I`=F `POS========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN oSNMN=======bogPdbvgNMQu====jdc=`efm============NLNSt=NMMh `POT========b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN ============E=_=F `POV========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN oSNMO=======sogpaPaNUMO=====jdc=`efm===HJMKRB===NLNSt==NUh `PPM========b`bsMg^OOMp=====bib`qolivqf`=`efm===SKPs====OO oSNMP=======bogPdbvgOTOu====jdc=`efm============NLNSt=OKTh `PPO========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN oSNMQ=======sogpaPaNMMO=====jdc=`efm===HJMKRB===NLNSt==NMh...
  • Page 14 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks `SPP========b`pqN`vOOR======q^kq^irj=`efm=======NSs====OKO `NMRQ=======b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `SPQ========b`pqN`vOOR======q^kq^irj=`efm=======NSs====OKO ============E=^=F `SPS========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `NMRR=======s`rpn_^NMRh_====`=`efm==============NMs======N `SPT========j`rsN^NMRwcs====`=`efm=====HUMBJOMB=NMs======N `NMRT=======b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `SPU========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `NMRU=======b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `SPV========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `NMRV=======b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM `SQM========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `NNMN=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `SQN========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `NNMO=======b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO `SQO========b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO `NNMP=======b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `SQP========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM `OMMN=======j`rsNbNMQh_k====`=`efm==============ORs====MKN `SQQ========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `OMMO=======j`rsNbNMQh_k====`=`efm==============ORs====MKN `SQR========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `OMMP=======j`rsNbNMQh_k====`=`efm==============ORs====MKN `SQS========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM `OMMQ=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `SQT========b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `OMMR=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `SSP========b`rsNeNMMa`s====`=`efm=====HJMKRm===RMs====NMm...
  • Page 15 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks `PMRU=======b`rsNeNOMg`s====`=`efm=====HJRB=====RMs====NOm `SOMO=======b`rsN`NMQh_s====`=`efm==============NSs====MKN `PMRV=======b`rsNeNMMa`s====`=`efm=====HJMKRm===RMs====NMm `SOMT=======b`rbNeNONg`s====`=`efm=====HJRB=====RMs===NOMm `PMSM=======b`rsNeNOMg`s====`=`efm=====HJRB=====RMs====NOm `SOMU=======j`rsN`OOQwck====`=`efm=====HUMBJOMB=NSs===MKOO `PMSN=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN `SONM=======b`rsNeNUNg`s====`=`efm=====HJRB=====RMs===NUMm `PMSU=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN `SONN=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `PMTM=======b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `SONQ=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `PMTO=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `SOOM=======q`rsN`NRRwcj====`=`efm=====HUMBJOMB=NSs====NKR `PMTP=======b`rbN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `SOON=======b`rsNePVOh_s====`=`efm==============RMs==PVMMm `PMTQ=======b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO `SOOO=======b`pqN`vNMR======q^kq^irj=`efm=======NSs======N `PMTR=======b`rbNeNMPh_s====`=`efm==============RMs===MKMN `SOOP=======b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO `PMTT=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN `SOOS=======s`rpn_`PPQh_====`=`efm==============NSs===MKPP `PMTU=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN `SORN=======b`rsNePVOh_s====`=`efm==============RMs==PVMMm `PMTV=======b`rsNeNMOh_s====`=`efm==============RMs==NMMMm `PMUM=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN `PMUN=======b`rbNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN FILTERS `PMUR=======b`rsNbNMQwck====`=`efm=====HUMBJOMB=ORs====MKN...
  • Page 16 (E16, E38, E39, E46) Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks RELAY C.B.A. PIN HEADERS _O==========sgmtMOSO========_l^oa=ql=_l^oa=NUm mO==========sgmtMOQO========`lkkb`qlo=NPm PIN HEADERS mP==========sgmtMORQ========`lkkb`qlo=Rm ============E=^I_=F mVMMN=======sgmtMOQO========`lkkb`qlo=NPm ============sgmtMORR========`lkkb`qlo=NOm ============E=`=F FPC CONNECTOR mNP=========sgmt_NsOOQ_S====`lkkb`qlo=OQm mPU=========sgmtMOSQ========`lkkb`qlo=Pm cmVMMO======sgpPPOMaMNU=====cm`=`lkkb`qlo=NUm LIQUID CRYSTAL DISPLAY FPC CONNECTOR C.B.A.
  • Page 17 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks nNOOM=======jpaNUNV^EoF=====`efm oNOPM=======bogPdbvgRSNs====jdc=`efm============NLNSt==RSM ============lo=Op`QMUNqNMSo=`efm oNOPO=======bogPdbvgRSOs====jdc=`efm============NLNSt=RKSh ============lo=OpaNUNV^=====`efm oNOPP=======bogPdbvgOTOs====jdc=`efm============NLNSt=OKTh ============lo=OpaNUNV^f====`efm oNOPQ=======bogPdbvgNMPs====jdc=`efm============NLNSt==NMh nNOON=======cjtNqNQU========`ljmiu=`jm=pf=kmk=`efm oNOPR=======bogPdbvgNMPs====jdc=`efm============NLNSt==NMh ============lo=ukNRMN=======`ljmiu=`jm=pf=kmk=`efm oNOPS=======sogpaPaUOMN=====jdc=`efm===HJMKRB===NLNSt=UKOh nVMMN=======OpaNNNV=========`efm===========================! oNOPT=======sogpaPaOTMN=====jdc=`efm===HJMKRB===NLNSt=OKTh ============lo=OpaONRMqNMMo=`efm===========================! oNOPU=======sogpaPaOOMMs====jdc=`efm===HJMKRB===NLNSt==OOM nVMMO=======OpaNNNV=========`efm===========================! oNOPV=======sogpaPaVNMN=====jdc=`efm===HJMKRB===NLNSt=VKNh ============lo=OpaONRMqNMMo=`efm===========================! oNOQM=======sogpaPaOTMN=====jdc=`efm===HJMKRB===NLNSt=OKTh nVMNM=======jpaNUNV^EoF=====`efm oNOQN=======sogpaPaNUMM=====jdc=`efm===HJMKRB===NLNSt==NUM ============lo=Op`QMUNqNMSo=`efm oNOQO=======bogPdbvgNMMs====jdc=`efm============NLNSt===NM ============lo=OpaNUNV^=====`efm oNOQP=======sogpaPaOTMO=====jdc=`efm===HJMKRB===NLNSt==OTh ============lo=OpaNUNV^f====`efm oNOQQ=======sogpaPaOTMN=====jdc=`efm===HJMKRB===NLNSt=OKTh nVMNQ=======umQPNQ==========`ljmiu=`jm=pf=kmkLmkm=`efm...
  • Page 18 (E44) Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oVMST=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMPQ=======b`rsNeNRNg`s====`=`efm=====HJRB=====RMs===NRMm oVMTP=======bogPdbvgPPPs====jdc=`efm============NLNSt==PPh `VMPR=======s`rpn_`NMRh_====`=`efm==============NSs======N oVMTQ=======bogPdbvgPPPs====jdc=`efm============NLNSt==PPh `VMPS=======s`rpn_`NMRh_====`=`efm==============NSs======N oVMTR=======bogPdbvgPPPs====jdc=`efm============NLNSt==PPh `VMPU=======b`rsNeNMPh_s====`=`efm==============RMs===MKMN oVMTU=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMPV=======b`rsN`NMQh_s====`=`efm==============NSs====MKN oVMTV=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMQM=======b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM oVMUN=======bogPdbvgNMOs====jdc=`efm============NLNSt===Nh `VMQN=======b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM oVMUO=======bogPdbvgQTOs====jdc=`efm============NLNSt=QKTh `VMQO=======s`rpn_`NMRh_====`=`efm==============NSs======N oVMUP=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMQP=======b`rsN`NMQh_s====`=`efm==============NSs====MKN oVMUU=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMQT=======s`rpn_^OORh_====`=`efm==============NMs====OKO oVMUV=======bogPdbvMoMMs====jdc=`efm============NLNSt====M= `VMQV=======b`rsN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN soVMMN======sostMMOS========s^of^_ib===================NMh `VMRM=======b`rsN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `VMRN=======b`rsN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN `VMRO=======s`rpnbgNMRh_====`=`efm==============SKPs=====N CAPACITORS `VMRQ=======b`rsN`NMQh_s====`=`efm==============NSs====MKN...
  • Page 19 (E18, E37) Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks oVOT========bogPdbvgNUPs====jdc=`efm============NLNSt==NUh COLOR ELECTRONIC oVPM========bogPdbvgPPOs====jdc=`efm============NLNSt=PKPh VIEWFINDER A C.B.A. oVPQ========bogSdbvgNMRs====jdc=`efm============NLNMt===Nj ( C ) oVPS========bogPdbvgOOOs====jdc=`efm============NLNSt=OKOh oVQP========bogSdbvgNURs====jdc=`efm============NLNMt=NKUj oVQQ========bogSdbvgOORs====jdc=`efm============NLNMt=OKOj INTEGRATED CIRCUITS oVQT========bogPdbvMoMMs====jdc=`efm============NLNSt====M= oVRR========sogpaPaPPMO=====jdc=`efm===HJMKRB===NLNSt==PPh f`VMN=======^kOROOkcem======f`I=ifkb^o=bsc=aofsb oVRS========bogPdbvgNMMs====jdc=`efm============NLNSt===NM f`VMQ=======q`TpMQcqbURo====f`I=`jlp=pq^ka^oa=ildf`===========bKpKaK oVRU========sogpaPaNPMOs====jdc=`efm===HJMKRB===NLNSt==NPh ============================fksboqlo=d^qb oVSN========bogPdbvgQTNs====jdc=`efm============NLNSt==QTM oVSP========bogPdbvgQTOs====jdc=`efm============NLNSt=QKTh TRANSISTORS oVSQ========bogPdbvgQTMs====jdc=`efm============NLNSt===QT...
  • Page 20 (E36) (E6, E22, E27, E33, E41, E64) Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks `VMV========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N ELECTRICAL PARTS `VNN========b`bsNb^QoTp=====bib`qolivqf`=`efm===ORs====QKT LOCATED ON CHASSIS `VNO========b`rsNbNMQwck====`=`efm=====HUMBJOMB=ORs====MKN `VNP========b`pqMgvNMS======q^kq^irj=`efm=======SKPs====NM `VNS========b`rsNeNMPwcs====`=`efm=====HUMBJOMB=RMs===MKMN f`PRMN======^kPPSRp_========f`I=ifkb^o=eb^a=^jm `VNT========b`rsN`NMQwcs====`=`efm=====HUMBJOMB=NSs====MKN ============E=^=F `VNU========b`pqMguOOS======q^kq^irj=`efm=======SKPs====OO ============^kPPSUp_========f`I=ifkb^o=eb^a=^jm `VNV========b`bsN`^NMMp=====bib`qolivqf`=`efm===NSs=====NM ============E=_I`=F `VON========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N `VOO========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N bS==========sbntMOVR========jb`e^kfpj=cibuf_ib=mofkqba `VOP========b`rsN`NMRwck====`=`efm=====HUMBJOMB=NSs======N ============================`fo`rfq=rkfq...
  • Page 21 • Using Light reduces battery operating time. Use only replacement bulb (PART NO. • Provide proper ventilation when using Light VLLW0015) supplied by Panasonic to extensively in a hot environment. reduce risk of fire. • Using Light when the Camcorder is powered Handle new bulb with cloth or tissue as by a car battery may shorten bulb life.
  • Page 22 Camera Recording Before you begin... Simple Recording Before you begin... Using the LCD Monitor • Connect Camcorder to power source. • Connect Camcorder to power source. View recording scene on the LCD (Liquid Built-in Twin Capsule • Insert cassette with record tab. •...
  • Page 23 Camera Recording (continued) Playing Back Recordings Programmed Recording Before you begin... Before you begin... Playback on EVF or LCD Monitor • Connect Camcorder to power source. • Connect Camcorder to power source. Set a recording start and stop time. Or, set Use AC Adaptor for longer recordings.
  • Page 24 Playing Back Recordings (continued) Color Digital Filter TV Playback or Viewing Before you begin... Before you begin... Digital Filter adds one of 5 colors to entire picture, like a color filter. • Connect Camcorder to power source. • Connect Camcorder to power source. Connect Camcorder to a TV to view •...
  • Page 25 PUSH DISPLAY KEY Y KEY CAMERA CAMERA temperature, high humidity, a lot of card is compatible with other Panasonic dust, or places exposed to direct brand products, like Digital Camera sunlight, or static electricity and strong (PV-DC1080, PV-DC1580), LCD electromagnetic waves.
  • Page 26 Digital Still Camera (continued) Before you begin... Before you begin... Playback Deleting Specific Image Pages • Connect Camcorder to power source. • Connect Camcorder to power source. Delete older images to make room for new • Insert the CompactFlash Card. •...
  • Page 27 MODE • You can freeze the wipe in progress WIPE 1 WIPE 2 WIPE 3 Panasonic Anniversary Happy Birthday by pressing START. Press START again to resume wipe. (Current Recording) (Current Recording) START (first press)
  • Page 28 PC Connection (continued) Before you begin... Using Live Image Data Running the Software Before you begin... • Insert the CompactFlash Card. • Insert the CompactFlash Card. (Windows 95/98 ) You can capture the current Camcorder • Make Camcorder-PC connections. • Make Camcorder-PC connections. •...
  • Page 29 PC Connection (continued) Using a PCMCIA Adaptor (optional) If your PC has a PCMCIA type II slot, you can insert the CompactFlash Card into a Plug-in Driver for Adobe® PhotoDeluxe™ HE 3.0 (PV-L859 only) PCMCIA adaptor (optional) to transfer images, captured with this Camcorder only, to The Plug-in Driver allows interface between Camcorder and PhotoDeluxe HE 3.0 application.
  • Page 30 ® Printed in Japan...

  • Page 31: Safety Precautions

    SAFETY PRECAUTIONS GENERAL GUIDELINES Hot-Check Circuit AC VOLTMETER 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential 0.15µF that these critical parts should be replaced with manufacturer's specified parts to prevent X-RADIATION,...

  • Page 32: X-Radiation

    X-RADIATION (Model: A, B) WARNING : 1. The potential source of X-Radiation in EVF sets is the High Voltage section and the picture tube. 2. When using a picture tube test jig for service, ensure that jig is capable of handling 10kV without causing X-Radia- tion.

  • Page 33: Service Notes

    SERVICE NOTES EXTENSION CABLES FOR SERVICE Using the following Extension Cables, place the unit as shown for check and service. PART NUMBER PART NAME CONNECTION VUVS0007 12Pin Extension Cable FP8 on Main C.B.A. ~ CCD F.P.C. on Lens Unit LSUA0020 20Pin Extension Cable FP9 on Main C.B.A.
  • Page 34 INTERCONNECTION OF EXTENSION CABLES Note: marked parts are supplied as service fixtures. EVF Unit (Model: A, B) Top Operation F.P.C. Color EVF Unit (Model: C) Top Operation Unit CCD F.P.C Side L FPC Unit (LSUA0021) Lens Unit (VUVS0007) (LSUA0021) Lens F.P.C. Lock Screw A/C Head/ Diode...
  • Page 35 HOW TO HOLD THE CASSETTE UP (with Cabinet Parts) UNIT IN THE DOWN POSITION WITHOUT CASSETTE COVER INSTALLED The Cassette Up Unit will be in the up position without the Cassette Cover installed. To hold the Cassette Up Unit in the down position without it, a Lock Screw is needed.
  • Page 36 SERVICE MODE SPECIFICATION (SELF-DIAGNOSTIC SYSTEM) Operation : a. Start-up : Press and hold all of the Display, REC, and Stop buttons over 2 seconds, the unit goes into the self- diagnostic mode and main menu appears. b. Mode Selection : Press display button to change and select self-diagnose mode. c.
  • Page 37 a. Automatically operates REC (30sec), REW, PLAY, and B.AUTO TEST STOP. b. Displays the test status while auto test is progressing. Mark shows the test status.) REVIEW PLAY REC PAUSE AUTO Displays the test result. B.AUTO TEST LOADING LOCK ** CYLINDER LOCK TAKEUP REEL LOCK NORMAL...
  • Page 38 DISPLAY BUTTON 6. Operation Button Test - Camera Tests connection of camera operation buttons by pressing E.OPERATION TEST-CAMERA each button. SET VCR/CAMERA SW TO CAMERA BEFORE CHECK TELE : OFF FOCUS : OFF WIDE : OFF : OFF FADE : OFF D.ZOOM : OFF : OFF...
  • Page 39 8. Mechanism Position Displays mechanism position by monitoring mode switch. G.MECHANISM POSITION mark shows the current mechanism position.) EJECT STOPSTANDBY STANDBY REC/PLAY/FF DISPLAY BUTTON 9. Safety Defeat a. Defeats following safety functions. Cylinder lock, Reel H.SAFETY DEFEAT lock, End of tape, Battery under cut, Safety tab switch. b.
  • Page 40 11. PG Shifter J. PG SHIFTER DATA: BUTTON DOWN BUTTON Displays the adjustment data. This is a function to adjust Head Switching Position (PG SHIFTER) by pressing UP or Down button without using the Personal Computer. To adjust with this function, the TP Board Kit, Audio/Video cable, oscilloscope, and VHS-C Alignment Tape (VFMS0004H6C) are necessary.
  • Page 41 DESCRIPTION OF EMERGENCY INDICATIONS When something unusual as shown below occurs in the deck, LED begins flashing for approx. 15 seconds to indicate an Emergency. TALLY LED/ Information POWER LED Cause and Characteristic REC LED CYLINDER Motor stops in the REC, PB, CUE, Cylinder Lock REVIEW or STILL MODE for 2 second.
  • Page 42 METHOD FOR LOADING/ (Manual Method-1) without Cabinet Parts UNLOADING OF MECHANISM Turn the Gear of Reduction Gear Unit clockwise (for loading) or counterclockwise (for unloading) manually. (Electrical Method) It is necessary to rotate approx. 80 times from fully-loaded CAUTION: position to EJECT position. If loading does not start after DC Power Supply is applied, DO NOT continue to applying DC Power Supply.
  • Page 43 HOW TO REMOVE A JAMMED TAPE (4) Connect the TP Board Kit through the TP Board slot. (5) Apply +3VDC Power Supply to TP20 (+) and TP21 (-) on the TP Board to unload the mechanism. It normally takes (Electrical Method) approx.
  • Page 44 (Manual Method) CONNECTION OF THE FLEXIBLE CABLES TO TRAP CONNECTORS (1) Place the unit with the Cassette Cover facing upward as shown in Fig. 4-5. Plug No. No. of Pins C.B.A. (2) Rotate the Gear of Reduction Gear Unit. 26 Pin Main C.B.A.
  • Page 45 HOW TO USE TP BOARD KIT Signal description on TP Adjustment P.C.B. 40P (VFKW0123B) TP Board Kit is required when: Pin No. Signal 1. performing "Tape Interchangeability Adjustment." 2. performing "EVR Adjustment." IRIS 3. the cassette tape is jammed. Refer to "How to remove a jammed tape (Electrical Method),"...
  • Page 46 ELIMINATION OF TAPE SLACK Before inserting the Cassette Tape in the Compact VHS Movie, take up slack in the tape by turning the Takeup Reel Gear on the side of the Cassette Tape. Turn it in the direction of the arrow until no slack is evident and opposite reel begins to turn.
  • Page 47 Replacement procedure for Note : Do not glue the replacement leadless component to the Leadless (Chip) Component circuit board. Tweezers The following procedures are recommended for the replace- ment of the leadless components used in this Unit. Solder 1. Preparation for replacement Soldering Iron a.

  • Page 48: Ic, Transistor And Chip Part Information

    IC, TRANSISTOR AND CHIP PART INFORMATION CCD C.B.A. MAIN C.B.A. B2 E2 B2 E2 S80839ANNPT2 XN4601 MN37243FT-M XN4501, IMX1T108 XC62FP4502PR GENERAL C.B.A. / ASS'Y PARTS AN1358S-E1, AN2515NS, BA10324AFVE1, UN5212(R1=22K, R2=22K), UN5111(R1=10K, R2=10K), LB1837M-TE-L, MN3112SA-E1, MN38663S, UN5213(R1=47K, R2=47K), UN5112(R1=22K, R2=22K), UN5217(R1=22K, R2=OPEN), UN5113(R1=47K, R2=47K), S3510AEFJTB, UN224-TX, S29355AFETF, TC4W53FTE12L, MC14050BDTEL, AN3368SB,...

  • Page 49: Disassembly/Assembly Procedures

    DISASSEMBLY/ASSEMBLY PROCEDURES DISASSEMBLY/ASSEMBLY PROCEDURES OF CABINET DISASSEMBLY FLOW CHART This flow chart indicates the disassembly steps of the cabinet parts and the P.C.Boards in order to gain access to item (s) to be serviced. When reassembling, perform the step (s) in the reverse order. Bend, route and dress the wires as they were originally. LCD PORTION COLOR EVF PORTION (Model: C) 1 Cassette Cover Unit...
  • Page 50 DISASSEMBLY METHOD 1 Cassette Cover Unit with LCD Unit PARTS STEP 1 Cassette Cover Unit with LCD Unit Fig. PART REMOVE /LOC. (L-1) 2(L-1), (L-2), Cassette Cover Unit P9001 P9001 with LCD Unit (L-2) (S-1) EVR Cover (S-2), (S-3), 3(S-4), (S-5), 2(S-6), Side Case L Unit (L-1)
  • Page 51 2 EVR Cover 4 Sensor Shield Case PARTS PARTS 3 Side Case L Unit 5 Lens Unit 2 EVR Cover (S-1) VCR/Camera/ Photo SW. (L-3) Rear View (S-2) Top Operation receptacle PC Out Jack (S-7) (S-8) Connector 5 Lens Unit 4 Sensor Shield Case Connector Reassembly Note:...
  • Page 52 LCD PORTION 6 Main C.B.A. PARTS STEP Fig. PART /LOC. REMOVE Cassette Cover Unit D7-1 6(S-1), Barrier Main C.B.A. D7-2 (S-2), FP9002 Relay C.B.A. Cassette Frame D7-2 4(S-3) LCD Case A Unit D7-3 2(S-4), 7(L-1) LCD Shield Case D7-4 2(S-5) (S-9) LCD Shaft Unit D7-4...
  • Page 53 4 LCD Case A Unit PARTS 2 Relay C.B.A. PARTS (LCD Case Unit) 3 Cassette Frame LCD Case A Unit LCD Case B Unit (Cassette Frame Unit) (L-1) LCD Case Unit Cassette Frame FP9002 (S-3) (S-4) (L-1) Note: Relay C.B.A. (1) To gain access to 2 Screws (S-4), turn the Angles of (S-2) LCD Shaft Unit as indicated by the arrow...
  • Page 54 PARTS 10 LCD Lamp Unit 8 LCD C.B.A. PARTS 9 LCD Panel Unit (Lead Light Panel Unit) (LCD Unit) (L-3) LCD Barrier LCD Sheet Lead Light Unit LCD Panel Unit Panel Unit (L-2) (L-3) LCD C.B.A. LCD Lamp Unit LCD Panel (L-2) Holder FP9001...
  • Page 55 SIDE CASE L PORTION PARTS 2 Side L FPC Unit STEP Fig. REMOVE PART /LOC. Side L FPC Unit (L-1) 2(S-1), 4(S-2), EVF Unit Spring Supporter, D8-1 View A (Color EVF Unit) Spring Washer, Poly Washer (S-3), 3(S-4), 2(L-1), Side L FPC Unit D8-2 Arm, Arm Holder (S-4)
  • Page 56 EVF PORTION (Model: A, B) 5 VCR Operation Unit 6 CRT STEP Fig. PARTS PART REMOVE /LOC. 7 DY Ass'y 8 EVF C.B.A. ----- Eye Cap Unit D9-1 EVF Case A D9-2 3(S-1), 5(L-1) FP901 CRT Socket Unit EVF Dust Cover D9-2 ----- P903...
  • Page 57 COLOR EVF PORTION (Model: C) 2 EVF Case A STEP 3 EVF Case B Unit Fig. REMOVE PART /LOC. PARTS 4 Lock Knob 5 VCR Operation Unit ----- Eye Cap Unit D10-1 2(S-1), 6(L-1) EVF Case A D10-2 (L-1) Lock Knob ----- EVF Case B Unit D10-2 Lock Spring...
  • Page 58 6 Color EVF A C.B.A. 7 Color EVF B C.B.A. 8 LCD Cushion 9 EVF LCD Panel Unit PARTS 10 EVF Lens Cover A 11 Protect Plate 12 EVF Lens Cover B 13 EVF Lens Holder (LCD Unit) EVF Lens Holder (L-2) EVF LCD Panel Unit...
  • Page 59 LENS PORTION A Reassembly Note: 1. Installation of the Optical Filter (1) Install the Optical Filter in the Lens Unit correctly. Note: STEP Fig. Be sure to install the Optical Filter with the thinnest layer PART /LOC. REMOVE of the Optical Filter facing toward the Lens Unit. Make sure that no dust gets on the Optical Filter and in the Lens Unit.
  • Page 60 LENS PORTION B 3 Focus Motor PARTS 4 Zoom Motor STEP Fig. PART REMOVE /LOC. (S-3) Focus Motor Lens Piece Unit D12-1 2(S-1), 2(L-1) Unsolder D12-1 (S-2) MF VR Unit (S-4) D12-2 2(S-3), Unsolder Focus Motor Zoom Motor Slots (S-4), 2(S-5), Unsolder Zoom Motor D12-2 Unsolder...
  • Page 61 SIDE CASE R PORTION PARTS 2 Top Operation Unit STEP Fig. REMOVE PART /LOC. 2(S-1), (L-1), 2(L-2), MIC Case Unit D13-1 R Hinge Top Operation D13-2 (S-2), (L-3) Unit (L-3) CF Card ----- D13-3 Connector Unit (S-3), Buckup Cover, Battery Catcher D13-4 Unit Battery...
  • Page 62 4 Battery Catcher Unit PARTS (S-3) Battery Catcher Unit Portion A View A Buckup Cover Battery WARNING: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. CAUTION: Be careful not to break Portion A when removing or installing the Battery Catcher Unit.
  • Page 63 PARTS DANGER: When replacing the Lamp, use only Lamp (Part No. VLLW0015) supplied by Panasonic to reduce the risk of fire. Use a cloth or tissue when handling the Lamp as finger oils will decrease the Lamp life. To prevent possible burn hazard, remove the Light Cover and allow the Lamp to cool before replacing.

  • Page 64: Disassembly/Assembly Procedures Of Mechanism

    DISASSEMBLY/ASSEMBLY PROCEDURES OF MECHANISM This procedure starts with the condition that the cabinet parts and Main C.B.A. have been removed. When reassembling, perform the step(s) in the reverse order. Perform all disassembly and alignments procedures in STOP Position except disassembly and alignment procedures which have the special Notes.
  • Page 65 INNER PARTS LOCATION Note: indicates alignment (Gear alignment or Tape Interchangeability adjustment) required when a part is replaced. TOP VIEW 2 Cylinder Ass’y Cylinder and Head 5 Bulge Chip Amp F.P.C. Takeup Loading Arm Upper Cylinder Unit Unit A/C Head Unit Loading Base Unit Takeup Post Unit Impedance Roller Unit...
  • Page 66 STOP Position Confirmation Check the following alignment points to confirm that the Mechanism is in STOP Position from the Top and Bottom View. Top View EJECT Position Main Cam Mode Select Unit Switch Eject Lever STOP Position Line Up Bottom View Main Cam Unit Mode Select...
  • Page 67 Reassembly Note: 1 Cassette Up Unit PARTS 1. Installation of the Cassette Up Unit (1) Before installing the Cassette Up Unit, confirm that 1 Cassette the Eject Lever is slid as shown. Up Unit (S-1) (S-1) Eject Lever Chassis Top View (L-1) (L-1) (2) Slide the Lock Lever.
  • Page 68 2 Cylinder Ass'y PARTS FE Head FE Head Video Head Video Heads Cylinder/Head Amp F.P.C. Hooking Portions 2 Cylinder Ass'y Hole Video Head Video Heads (2 Head Model: A) (4 Head Model: B, C) Hole Hole A Guide Pin Guide Pin (S-1) Note: 1.
  • Page 69 Reassembly Note: 3 Upper Cylinder Unit 1. Use extreme care when replacing the Upper Cylinder Unit. Do not touch the Video Heads during servicing. 4 Cylinder/Head Amp F.P.C. PARTS 2. Installation of the Upper Cylinder Unit 5 Bulge Chip CAUTION: (1) Confirm that the Earth Contact is not in the Lower Cylinder Unit.
  • Page 70 6 P.C.B. Angle PARTS Guide Guide Pin P.C.B. Angle Hole 6 P.C.B. Angle P.C.B. Angle Hole (S-1) Reassembly Note: 1. Installation of the P.C.B. Angle (1) Install the P.C.B. Angle so that the 2 P.C.B. Angle Holes fit over the 2 Guide Pins on the Chassis. Work carefully so as not to damage the A/C Head/Capstan F.P.C.
  • Page 71 Reassembly Note: 7 Mechanism F.P.C. Unit PARTS Gear Alignment The Mode Select Switch and the Main Cam Unit (1) Before installing the Mechanism F.P.C. Unit, rotate the Mode Select Switch of Mechanism F.P.C. Unit so that Slot (A) is aligned with Slot (B). Slot (A) Mechanism F.P.C.
  • Page 72 Reassembly Note: 8 Tension Unit 1. Installation of the Reel Table Unit and the Tension PARTS Unit 9 Reel Table Unit (1) Before installing the Reel Table Unit and the Tension Unit, place the Mechanism in the Fully-loaded Position by rotating the Gear of Reduction Gear Unit. (C-2) 8 Tension Unit (2) Install Washer (W-1) onto the Loading Motor Unit first.
  • Page 73 10 Rev Clutch PARTS Take Gear PARTS Rev Brake Arm Unit (C-1) (L-1) 10 Rev Clutch 11 Take Gear (C-1) Portion A 12 Rev Brake Arm Unit Spring of Rev Brake Arm Unit Idler Arm Unit Fig. DM8 Guide Pin Hooking Portion Note: 1.
  • Page 74 Reassembly Note: PARTS 13 A/C Head Unit 1. Installation of the Rev Brake Arm Unit (1) Before installing the Rev Brake Arm Unit, move the (S-1) Idler Arm Unit aside as indicated by the arrow. 13 A/C Head Unit Unsolder (2) Hook the Spring of Rev Brake Arm Unit to the Hooking Portion.
  • Page 75 14 Capstan Belt PARTS 15 Capstan Unit PARTS (S-2) (S-1) P5 Post Pinch Roller Portion A Portion B Projection A 15 Capstan Unit 14 Capstan Belt Takeup Boat Unit Reassembly Note: (S-1) 1. Tips on Installation of the Capstan Belt Capstan Unit (1) Hook the Capstan Belt to Portion A of Capstan Unit at first as shown.
  • Page 76 16 Idler Arm Unit PARTS PARTS 17 Mechanism Support Angle Hole B Hole A Pin A Guide Pins Portion B 16 Idler Arm Unit 17 Mechanism Support Angle (C-1) 1. Removal of the Idler Arm Unit (1) To remove the Idler Arm Unit, pull the Idler Arm Unit slightly from the Chassis to release Pin A from (S-1) Hole A.
  • Page 77 18 Reduction Gear B PARTS 19 Reduction Gear A PARTS 20 Reduction Gear Unit (C-1) 18 Reduction (S-1) Gear B 20 Reduction Gear Unit Guide Pin Slot Pin A Reassembly Note: 19 Reduction Gear A (C-1) 1. Installation of the Reduction Gear B (1) Install the Reduction Gear B while rotating so it engages with the Gear of Main Cam Unit as shown.
  • Page 78 Reassembly Note: 1. Installation of the P5 Arm Unit and the Opener 21 Pinch Arm Unit (1) Before installing the P5 Arm Unit, put the Mechanism 22 Opener PARTS in the Loading Position (S and T Posts are located at the end of guide slots) as shown.
  • Page 79 Reassembly Note: 24 Takeup Post Unit 1. Installation of the Supply Post Unit and the Takeup PARTS Post Unit 25 Supply Post Unit (1) Confirm that the end of the arm (the threaded hole) of Supply Loading Arm Unit and the end of the arm (the 25 Supply Post Unit threaded hole) of Takeup Loading Arm Unit are in the Supply...
  • Page 80 Reassembly Note: 26 Impedance Roller Unit 1. Installation of the Loading Base Unit PARTS (1) Before installing the Loading Base Unit, rotate the Main 27 Loading Base Unit Cam Unit clockwise (to change the gear position from STOP position (Fig. DM20) to Standby position 26 Impedance (Fig.
  • Page 81 28 Takeup Loading Arm Unit 29 Supply Loading Arm Unit PARTS PARTS 28 Takeup Loading Arm Unit 29 Supply Loading Arm Unit Main Cam Unit Turn Reassembly Note: 1. Removal of the Supply Loading Arm Unit Gear Alignment (1) Remove the Supply Loading Arm Unit after rotating the The Takeup Loading Arm Unit and the Loading Main Cam Unit as much as it can.
  • Page 82 Reassembly Note: (4) Confirm that Hole A, B, and C are Through Holes by rotating the Main Cam Unit. Gear Alignments The Supply Loading Arm Unit and the Loading Hole C Hole B Gear Through Hole Through Hole Supply Loading The Supply Loading Arm Unit and the Main Loading Gear Arm Unit...
  • Page 83 30 Loading Motor Unit 31 Main Cam Unit PARTS 32 Pinch Toggle 30 Loading Motor Unit Threaded Hole Threaded Hole Guide Pin 31 Main Cam Unit Main Cam Unit Hole 32 Pinch Toggle Pinch Toggle Hole Hole Chassis Guide Pin (S-1) Reassembly Note: 1.

  • Page 84: Adjustment Procedures

    ADJUSTMENT PROCEDURES Service Fixtures & Tools Molytone Grease VFK1024 VHS-C Alignment VFMS0004H6C VHS-C Alignment VFMW0001C Tape Tape Head Cleaning Stick VFK27 Grease VFKS0081 Lock Screw VHDW0125 Extension Cable 12P VUVS0007 Extension Cable 20P LSUA0020 Extension Cable 26P LSUA0021 (X2) A.W.B. Adjustment VFKW0066 Color Chip Chart VFKW0116 Audio Video Cable VJAW0032...
  • Page 85 EVF Unit VYKW3146E Color EVF Unit VYKW3142E (Model: A, B) (Model: C) The part number of the monochrome EVF Unit for Model A, B is The part number of the color EVF Unit for Model C is different from different from that of the monochrome EVF Unit (VYKW3146E) that of the color EVF Unit (VYKW3142E) which is supplied as a which is supplied as a representative service fixture.

  • Page 86: Mechanical Adjustment

    MECHANICAL ADJUSTMENT TAPE INTERCHANGEABILITY ADJUSTMENT CLEANING PROCEDURE FOR THE Before perform these Adjustment/Confirmation procedures, UPPER CYLINDER UNIT be sure to complete following items. 1. Connect the TP Board Kit to S301 on the camcorder. 1. While slowly turning the Upper Cylinder Unit Refer to "How to use TP Board Kit"...
  • Page 87 1. ENVELOPE OUTPUT ADJUSTMENT T Post The height of the S and T Posts replacement part is preset Tape at the factory. S Post Purpose: To achieve a satisfactory picture and secure precise Cylinder tracking. A/C Head Symptom of Misadjustment: If the envelope is output poorly, much noise will appear in the picture.
  • Page 88 2. A/C HEAD HEIGHT ADJUSTMENT 3. A/C HEAD AZIMUTH ADJUSTMENT The height of the A/C Head replacement part is preset at the Purpose: factory. To adjust the position and height of the A/C Head so that it meets the tape tracks properly. Purpose: To be sure the tape runs properly along the Control Symptom of Misadjustment:...
  • Page 89 4. A/C HEAD HORIZONTAL POSITION 6. To find the center of the maximum period of the envelope, move the A/C Head Unit to confirm the limits ADJUSTMENT on either side of the maximum period. Purpose: Note: To adjust the Horizontal Position of the A/C Head. It will be possible to confirm step 6) after performing the following steps.

  • Page 90: Electrical Adjustment

    ELECTRICAL ADJUSTMENT INTRODUCTION For Electrical adjustments, Compact Camcorder are adjusted by using PC-EVR Adjustment Software and mechanical controls (Variable Resistor). For adjustment item (section) for the model you are servicing, please refer to the following table. MODEL ADJUSTMENT ITEM (Section) ADJUSTMENT SYTEM Electrical Adjustment for CAMERA Section Frequency Adjustment: VR Adjustment...
  • Page 91 TEST EQUIPMENT To do all of the Electrical Adjustment, the following equipments 15. CAAS Kit (VFKW1000) are required. Interface Box (VFKW1000A) Camera Connecting Cable (VFKW1000B) 1. Dual-Trace Oscilloscope 9 Pin RS-232C Cable (VFKW1000C) Voltage Range : 0.001 to 50V/Div. 25 Pin RS-232C Cable (VFKW1000D) Frequency Range : DC to 50MHz...
  • Page 92 PREPARATION 4. Connect the TP Board Kit to S301 on the camcorder as shown in Fig.E2-2. Refer to "How to use TP Board Kit" in "Service Notes," page 1-24. 1. Assemble the TP Board Kit as shown in Fig.E2-1. TP Adjustment Pin 1 : White wire Label...
  • Page 93 7. Set up the camcorder for adjustment as follows: Method 2 (without using Infinity Lens) Method 1 (with using Infinity Lens) ♦ Gray Scale Chart, etc ♦ Light Box ♦ Color Compensating Filter ♦ Color Temperature ♦ Color Conversion ♦ Conversion Filter Infinity Lens Filter...
  • Page 94 EVR ADJUSTMENT HOW TO USE MAIN MENU SET UP THE MENU MODE Main Menu 1. Turn on the Personal Computer power SW. Windows 95 will be set up automatically. 2. Restart it in MS-DOS mode. Select a Sub Menu to check, adjust the unit etc. by pressing 3.
  • Page 95 VR ADJUSTMENT EEPROM DATA CAMERA SECTION There is a EEPROM in this unit. Frequency Adjustment EEPROM C.B.A. EEPROM IC Ref. No. Purpose: To set the chroma subcarrier. Main C.B.A. IC305 Symptom of Misadjustment: The picture will be no color. (The burst shifts) How to save the EEPROM data Specifications: Be sure to save EEPROM data before service and adjust-...
  • Page 96 MONOCHROME EVF SECTION Brightness Adjustment Purpose: Note: Camcorder need NOT to be powered off and on after To set the optimum EVF brightness level. each adjustment procedure. Symptom of Misadjustment: Preparation The EVF picture will be too white or black. 1.
  • Page 97 TEST POINTS AND CONTROL LOCATION Main C.B.A. TP601 C610 FREQUENCY (Component Side) Color EVF A C.B.A. (C) EVF C.B.A. (A, B) VR903 VR906 TP901 BRIGHTNESS FOCUS TP902 TP903 TP905 VR901 VERTICAL SIZE (Foil Side) TP904 (Component Side) LCD C.B.A. BRIGHTNESS VR9008 TP9001 TP9002...

  • Page 98: Schematic Diagrams

    SCHEMATIC DIAGRAMS SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES MIC/IR UNIT SCHEMATIC DIAGRAM 1. Important safety notice Signal Waveform Note Components identified by the sign have special charac- How to read Signal Waveform teristics important for safety. When replacing any of these components.

  • Page 99: Main I (System Control/Servo) Schematic Diagram

    COMPARISON CHART IC6001 KEY MATRIX CHART MAIN I (SYSTEM CONTROL/SERVO) SCHEMATIC DIAGRAM IC6001 KEY MATRIX CHART OF MODELS & MARKS SCAN VOLTAGE 0.18V 0.72 1.08V 1.62 1.98V 2.52 2.88V 3.42 3.78V 4.32 4.50V MODEL MARK KEY IN SCAN 1 SCAN 2 SCAN 3 SCAN 4 (PIN 97)

  • Page 100: Main Ii (Cylinder/Capstan Drive) Schematic Diagram

    MAIN II (CYLINDER/CAPSTAN DRIVE) SCHEMATIC DIAGRAM NOTE: COMPARISON CHART FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS & MARKS REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK PV-L759 REC AUDIO SIGNAL PB AUDIO SIGNAL TO MAIN I PV-L779 REG +4.5V PV-L859 FORCED ACCELERATION...
  • Page 101 IC2001 CYLINDER/CAPSTAN MOTOR DRIVE CONTROL IC-DETAIL BLOCK DIAGRAM, AN3897FH CAP VM DRIVE LOGIC TORQUE SATURATION DETECT TORQUE DIRECTION CONTROL UPPER DRIVE TR CONTROL DIRECTION SWITCH LOWER DRIVE TR CONTROL TORQUE COMMAND TORQUE COMMAND UPPER DRIVE CONTROL LOWER DRIVE CONTROL TORQUE SATURATION DETECT LOGIC...

  • Page 102: Main Iii (Camera I) Schematic Diagram

    COMPARISON CHART MAIN III (CAMERA I) SCHEMATIC DIAGRAM OF MODELS & MARKS NOTE: MODEL MARK FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PV-L759 REFER TO BEGINNING OF SCHEMATIC SECTION. PV-L779 PV-L859 TO MAIN VI Not Used V CONTROL LIVE IMAGE DATA SIGNAL (CAMCORDER PB VIDEO SIGNAL (PHOTO MODE) COLOR SEP.

  • Page 103: Main Iv (Camera Ii) / Pc Out Jack Schematic Diagram

    COMPARISON CHART IC501 KEY MATRIX CHART MAIN IV (CAMERA II) / PC OUT JACK SCHEMATIC DIAGRAM OF MODELS & MARKS TERMINAL 0.71~ 1.56~ 2.41~ 3.36~ VOLTAGE 0.14V 0.99V 1.84V 2.69V 3.64V MODEL MARK CAM KEY DATA 2 DIGITAL STILL ---- NOTE: PV-L759 (PIN 155)

  • Page 104: Main V (Lens Drive) Schematic Diagram

    MAIN V (LENS DRIVE) SCHEMATIC DIAGRAM NOTE: COMPARISON CHART FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS & MARKS TO MAIN III LUMINANCE REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK TO MAIN VI IRIS S301 PV-L759 A/D SIGNAL IRIS PV-L779 CAM +4.5V...
  • Page 105 MAIN VI (CCD DRIVE) / CCD SCHEMATIC DIAGRAM COMPARISON CHART NOTE: OF MODELS & MARKS FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK PV-L759 PV-L779 PV-L859 TO MAIN III Not Used BURST FLAG PULSE H CLEAR PULSE COLOR SEP.
  • Page 106 IC603 CCD V DRIVE IC-DETAIL BLOCK DIAGRAM, MN3112SA-E1 IC605 SAMPLING HOLD/AGC CONTROL IC-DETAIL BLOCK DIAGRAM, AN2109FHQ DRIVER SYNC SEPARATION CONT CONT GAMMA CONTROL MODULATION BLANK CLAMP DRIVER BLANK CLAMP V-REF(L) V-REF(H) CLAMP V-REF(M) CONT FILTER CONVERTER...

  • Page 107: Main Vii (Video) Schematic Diagram

    COMPARISON CHART MAIN VII (VIDEO) SCHEMATIC DIAGRAM OF MODELS & MARKS NOTE: MODEL MARK FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PV-L759 REFER TO BEGINNING OF SCHEMATIC SECTION. PV-L779 PV-L859 REC VIDEO SIGNAL PB VIDEO SIGNAL C3075 Not Used 0.01 C3081 C3098 0.1...
  • Page 108 IC3001 VIDEO/AUDIO PROCESS IC-DETAIL BLOCK DIAGRAM, AN2401NFH REC VIDEO SIGNAL PB VIDEO SIGNAL ROTARY AUTO FILTER COLOR ADJUSTMENT KILLER 2FSC TRAP SERIAL SIDE CONVERTER LOCK DETECT DETECT REC-ON COLOR KILLER SW DEMODULATOR COLOR KILLER SW DEMODULATOR COLOR KILLER SW DRIVER MODULATOR MAIN FH/2...

  • Page 109: Main Viii (Audio) Schematic Diagram

    MAIN VIII (AUDIO) SCHEMATIC DIAGRAM COMPARISON CHART NOTE: OF MODELS & MARKS FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK PV-L759 PV-L779 REC AUDIO SIGNAL PB AUDIO SIGNAL PV-L859 Not Used R4056 IC4003 NJM2125F-TE1 R4047...

  • Page 110: Main Ix (Power Supply) Schematic Diagram

    MAIN IX (POWER SUPPLY) SCHEMATIC DIAGRAM NOTE: CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, IMPORTANT SAFETY NOTICE: COMPONENTS IDENTIFIED BY THE SIGN HAVE FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REPLASE ONLY WITH THE SAME TYPE 3.15A 125V FUSE. REPLACE ONLY WITH THE SAME TYPE 1.5A 63V FUSE.
  • Page 111 IC1001 PWM CONTROL IC-DETAIL BLOCK DIAGRAM, BA7757BK DRIVE REFERENCE VOLTAGE REGULATOR SHORT CONTROL CIRCUIT PROTECTOR CONTROL DRIVE LATCH DIVIDER CONTROL TRIANGLE WAVE DRIVE OSCILLATOR CONTROL ERROR ERROR DRIVE 3-14...

  • Page 112: Lcd I (Lcd Power) / Relay Schematic Diagram

    LCD I (LCD POWER) / RELAY SCHEMATIC DIAGRAM COMPARISON CHART OF MODELS & MARKS NOTE: MODEL MARK FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PV-L759 REFER TO BEGINNING OF SCHEMATIC SECTION. PV-L779 NOTE: PV-L859 LCD SHAFT UNIT IS NOT SERVICEABLE AND IS Not Used SUPPLIED AS A UNIT ONLY FOR REPLACEMENT.
  • Page 113 IC1201 PWM CONTROL IC-DETAIL IC9010 RGB SIGNAL PROCESS/LCD PANEL INDICATOR CONTROL IC-DETAIL BLOCK DIAGRAM, BLOCK DIAGRAM, BA9708K AN2537FHQ 1/2 DIV PHASE DETECTOR REFERENCE CONTROL VOLTAGE REGULATOR PLL COUNTER DRIVE CONVERTER SHORT V COUNTER CIRCUIT REVERSE (L/R) CONTROL PROTECTOR TRIANGLE H COUNTER 1/3 DIV WAVE REVERSE (UP/DOWN)

  • Page 114: Lcd Ii (Lcd Drive) Schematic Diagram

    LCD II (LCD DRIVE) SCHEMATIC DIAGRAM NOTE: IMPORTANT SAFETY NOTICE: COMPARISON CHART OF MODELS & MARKS FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK WHEN REPLACING ANY OF THESE COMPONENTS,...

  • Page 115: Evf Schematic Diagram

    EVF SCHEMATIC DIAGRAM (A,B) NOTE: IMPORTANT SAFETY NOTICE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. REFER TO BEGINNING OF SCHEMATIC SECTION. WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS. REC VIDEO SIGNAL PB VIDEO SIGNAL T901...

  • Page 116: Color Evf A / Color Evf B Schematic Diagram

    COLOR EVF A / COLOR EVF B SCHEMATIC DIAGRAM (C) NOTE: IMPORTANT SAFETY NOTICE: COMPARISON CHART FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS & MARKS COMPONENTS IDENTIFIED BY THE SIGN HAVE REFER TO BEGINNING OF SCHEMATIC SECTION. SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 117 IC901 RGB SIGNAL PROCESS/LCD PANEL INDICATOR CONTROL IC-DETAIL BLOCK DIAGRAM, AN2522NFHP CONVERTER V-PULSE V/H SYNC SEPARATION HH-KIL H-PULSE PHASE DETECTOR 1/nH CLOCK DRIVER TRAP CLAMP INVERTER CONTRAST CLAMP GAMMA CHAR DC CONTROL VREF AVE-DET DELAY 3-20...

  • Page 118: Top Operation Unit / Side L Fpc Unit Schematic Diagram

    BATTERY CATCHER UNIT SCHEMATIC DIAGRAM TOP OPERATION UNIT / SIDE L FPC UNIT SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, “FOR REFERENCE ONLY” REFER TO BEGINNING OF SCHEMATIC SECTION. NOTE: TOP OPERATION UNIT IS NOT SERVICEABLE AND IS SUPPLIED AS A UNIT ONLY FOR REPLACEMENT.

  • Page 119: Head Amp Schematic Diagram

    MF VR UNIT SCHEMATIC DIAGRAM HEAD AMP SCHEMATIC DIAGRAM NOTE: “FOR REFERENCE ONLY” MF VR UNIT IS NOT SERVICEABLE AND IS SUPPLIED AS A UNIT ONLY FOR REPLACEMENT. MF VR UNIT NOTE: COMPARISON CHART FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS &...

  • Page 120: Interconnection Schematic Diagram

    INTERCONNECTION SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MAIN C.B.A. TOP OPERATION UNIT SIDE L FPC UNIT LENS UNIT COMPARISON CHART (20 Pins) (26 Pins) (18 Pins) OF MODELS & MARKS MODEL MARK MF VR UNIT...

  • Page 121: Voltage Chart

    VOLTAGE CHART MAIN C.B.A. (CAMERA SECTION) MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA PIN NO. PIN NO. PIN NO. PIN NO.
  • Page 122 EVF C.B.A. LCD C.B.A. COLOR EVF C.B.A.(C) (A,B) MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA MODE CAMERA PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. IC901 IC301 IC1201 Q1211 Q9016 IC902 12.1...
  • Page 123 MAIN C.B.A. (POWER SUPPLY/VIDEO/AUDIO SECTION) CCD C.B.A. MODE CAMERA MODE REC PLAY MODE REC PLAY MODE REC PLAY MODE REC PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. IC601 IC1001 -7.5 -7.5 IC2003 14.9 Q601 14.9 IC3001 IC3002 IC2001 IC2002...
  • Page 124 MODE REC PLAY MODE REC PLAY MODE REC PLAY MODE REC PLAY MODE REC PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. Q1006 Q1102 15.0 IC4001 Q4003 Q1103 Q1007 15.2 Q4004 Q1104 Q1008 15.2 Q4007 Q1105 Q1009 Q4008 Q1106 Q1010...
  • Page 125 MAIN C.B.A. (SYSTEM CONTROL / SERVO SECTION) MODE STOP REC PLAY MODE STOP REC PLAY MODE STOP REC PLAY PIN NO. PIN NO. PIN NO. IC2001 IC2001 IC2002 IC2002 IC2003 IC2003 IC6001 IC6001 3-28...
  • Page 126 MODE STOP REC PLAY MODE STOP REC PLAY MODE STOP REC PLAY PIN NO. PIN NO. PIN NO. Q6021 Q6021 IC6203 IC6203 Q6022 Q6022 Q6026 Q6026 Q6001 Q6001 IC6002 IC6002 Q6035 Q6035 Q6004 Q6004 Q6201 Q6201 IC6005 IC6005 Q6005 Q6005 Q6202 Q6202 Q6006...

  • Page 127: Signal Waveform

    NOTE: SIGNAL WAVEFORM FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, LCD C.B.A. REFER TO BEGINNING OF SCEMATIC SECTION. MAIN C.B.A. V1 0.78Vp-p V1 4.1Vp-p +350.0mVp-p +4.20Vp-p Q3021 EMITTER TP6201 PIN12 OF FP8 TP9004 0.2V 20µs 50mV 20µs1 10ms1 20µs WF19 WF15 V1 0.63Vp-p...
  • Page 128 CIRCUIT BOARD LAYOUT MAIN C.B.A. VEPW1635A1 (A) / VEPW1635B1 (B) / VEPW1635C1 (C) COMPARISON CHART NOTE: OF MODELS & MARKS NOTE: CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, MODEL MARK FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 129 MAIN C.B.A. VEPW1635A1 (A) / VEPW1635B1 (B) / VEPW1635C1 (C) NOTE: CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, IMPORTANT SAFETY NOTICE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REPLASE ONLY WITH THE SAME TYPE 3.15A 125V FUSE. REPLACE ONLY WITH THE SAME TYPE 1.5A 63V FUSE.
  • Page 130 NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. LEADLESS COMPONENT PARTS LOCATION GUIDE MAIN C.B.A. Q301 E-5 Q6012 F-3 L3012 G-2 R377 N-4 R540 O-3 R709 R1047 B-2 R2042 G-4 R3169 J-1 R6015 F-3 R6112 K-2 C339 C-5 C647 B-5...

  • Page 131: Relay C.b.a

    LCD C.B.A. VEPW1639B1 RELAY C.B.A. VEPW1640A1 NOTE: IMPORTANT SAFETY NOTICE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, COMPONENTS IDENTIFIED BY THE SIGN HAVE COMPARISON CHART REFER TO BEGINNING OF SCHEMATIC SECTION. SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. OF MODELS & MARKS WHEN REPLACING ANY OF THESE COMPONENTS, MODEL MARK...

  • Page 132: Evf C.b.a

    EVF C.B.A. VEPW1641A1 (A,B) COMPONENT PARTS LOCATION GUIDE LEADLESS COMPONENT COMPONENT PARTS LCD C.B.A. (C, D) PARTS LOCATION GUIDE LOCATION GUIDE COMPARISON CHART EVF C.B.A. (A ,B, C, D, E) EVF C.B.A. (A, B, C, D, E) OF MODELS & MARKS NOTE: Q906 R963...

  • Page 133: Color Evf A C.b.a

    COLOR EVF A C.B.A. VEPW1666A1 (C) NOTE: NOTE: COMPARISON CHART CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS & MARKS FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, REFER TO BEGINNING OF SCHEMATIC SECTION.

  • Page 134: Ccd C.b.a

    CCD C.B.A. VEQW0301 NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. NOTE: CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST. R601 R602 Q601...

  • Page 135: Head Amp C.b.a

    HEAD AMP C.B.A. NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. NOTE: HEAD AMP C.B.A. WHICH IS LOCATED ON THE LOWER CYLINDER IS SUPPLIED AS A CYLINDER UNIT ONLY. HOWEVER, IC3501 (AN3365SB OR AN3368SB) IS AVAILABLE SEPARATELY AS A REPLACEMENT PART.

  • Page 136: Block Diagrams Overall Block Diagram

    BLOCK DIAGRAMS OVERALL BLOCK DIAGRAM PROCESS/DSC VIDEO AUTO FOCUS/ IRIS/ZOOM CONTROL SYNC AGC/ DIGITAL SIGNAL DIGITAL LENS GAMMA PROCESS ZOOM BURST MEMORY DRIVE FIELD REC/PB VIDEO MEMORY VIDEO OUT CONTROL TIMING SIGNAL GENERATOR CAMERA/DSC MICROCONTROLLER CCD DRUVE SERIAL DATA/CLOCK SYNC FLYBACK RS232C RS232C...

  • Page 137: Ccd Block Diagram

    CCD BLOCK DIAGRAM REC VIDEO (CAMERA) SIGNAL CCD UNIT MAIN C.B.A. IC605 (SAMPLING HOLD & AGC CONTROL) Q601 SAMPLING BUFFER CLAMP HOLD SAMPLING IC603 (CCD V-DRIVE) IC602 (TIMING SIGNAL GENERATOR) CLAMP HOLD LEVEL V1 PULSE OB CLAMP PULSE CHANGE DRIVE DOUBLE SAMPLING LEVEL V1 CHARGE PULSE...

  • Page 138: Process Block Diagram

    PROCESS BLOCK DIAGRAM REC VIDEO SIGNAL MAIN C.B.A. TOP OPERATION UNIT IC501 KEY MATRIX CHART IC301 (DIGITAL SIGNAL PROCESSOR) IC501(CAMERA/DSC MICROCONTROLLER) TERMINAL 0.71~ 1.56~ 2.41~ 3.36~ VOLTAGE 0.14V 0.99V 1.84V 2.69V 3.64V ADDRESS 0 ADDRESS 0 ADDRESS 1 ADDRESS 1 DIGITAL STILL ----...

  • Page 139: Dsc Block Diagram

    DSC BLOCK DIAGRAM REC VIDEO (CAMERA) SIGNAL REC VIDEO SIGNAL PATH (PHOTO MODE) PB VIDEO SIGNAL PATH (PHOTO MODE) IMAGE DATA SIGNAL PATH (CF CARD LIVE IMAGE DATA SIGNAL PATH (CAMCORDER MAIN C.B.A. IC501 (CAMERA/DSC MICROCONTROLLER) IC301 (DIGITAL SIGNAL PROCESS) SERIAL DATA PC OUT JACK C.B.A.

  • Page 140: Video Block Diagram

    VIDEO BLOCK DIAGRAM REC VIDEO SIGNAL PB VIDEO SIGNAL MAIN C.B.A. BATTERY CATCHER UNIT IC3001 (LUMINANCE/CHROMINANCE SIGNAL PROCESS) (FROM IC6001(24)) FROM SERVO V-LOCK PULSE BLOCK DIAGRAM JK1201 Y/C MIX/ VIDEO OUT ART V MIX TO EVF LUMINANCE BLOCK DIAGRAM (WITH EVF) S301 LUMINANCE H-SYNC...

  • Page 141: Audio Block Diagram

    AUDIO BLOCK DIAGRAM REC AUDIO SIGNAL PB AUDIO SIGNAL MAIN C.B.A. BATTERY CATCHER UNIT IC4001 (AUDIO REC/PB PROCESS) Q4011 TP4004 +4.5V Q4007 JK4401 AUDIO IC4401 (AUDIO AMP) EARPHONE JACK FADE CONTROL (WITH FADE) MIC/IR UNIT R4022 FP11 MUTE-OFF LINE (WITHOUT SPEAKER FADE) NOT USED...

  • Page 142: Af Block Diagram

    AF BLOCK DIAGRAM MAIN C.B.A. MF VR UNIT MF VR IC501(CAMERA/DSC MICROPROCESSOR) 0˚ 220˚ 0˚ 220˚ NEAR 3.8V 0˚ (FROM IC605 (4)) HALL AMP GAIN CONTROL MF 0 +3.5V OPEN FROM (FROM IC605 (5)) 1.8V CCD DRIVE IRIS CONTROL MANUAL FOCUS 1 BLOCK DIAGRAM (FROM IC605 (3)) HALL OFFSET CONTROL...

  • Page 143: System Control Block Diagram

    SYSTEM CONTROL BLOCK DIAGRAM MAIN C.B.A. MIC/IR UNIT IC6001 (SYSTEM CONTROL MICROCONTROLLER) U6501 LOADING S301 TO TP BOARD KIT MOTOR 1 RECEIVER (FOR EVF ADJUSTMENT) LOADING S301 MOTOR 0 IC6005 (CLOCK IN) FP11 TP6001 IR DATA MECHANISM FPC UNIT CLOCK (32KHz) CLOCK (32KHz) FP11 IC6007 (LOADING MOTOR DRIVE)

  • Page 144: Servo Block Diagram

    SERVO BLOCK DIAGRAM MAIN C.B.A. CYLINDER UNIT IC2003 (CYLINDER MOTOR DRIVE) DRIVE 34,35 CYLINDER MOTOR DRIVE 36,37 DRIVE 38,39 IC2001 (CYLINDER/CAPSTAN MOTOR DRIVE) IC6001 (SERVO MICROCONTROLLER) TP6206 TP6205 DRIVE CYLINDER CYLINDER PG HEAD FG HEAD TORQUE SATURATION DRIVE CONTROL REC CONTROL HALL DETECT HAED...

  • Page 145: Power Supply Block Diagram

    POWER SUPPLY BLOCK DIAGRAM MAIN C.B.A. MIC IR UNIT LIGHT UNIT FP11 FJ4301 FJ4304 FP11 FJ4301 FJ4304 Q1103 D1103 Q1105 (FROM IC6001(55)) Q1102 LIGHT ON (H) Q1022 Q1104 REG +4.5V PC +5V CURRENT LIMIT Q1106 ERROR Q1101 BATTERY CATCHER UNIT Q1107 Q1023 REG +4.8V...

  • Page 146: Lcd Power Block Diagram

    LCD POWER BLOCK DIAGRAM RELAY C.B.A. LCD C.B.A. TP1204 Q1210 P9001 P9002 FP1201 REG+3.5V LCD +3V 13,14 Q1221 ERROR FROM POWER SUPPLY BLOCK DIAGRAM TP1201 Q1205 L1201 L1202 P9001 P9002 FP1201 +4.5V UNREG BACKLIGHT +4.5V CONTROL 12,13 12,13 1,2,3 17,18,19 Q1219 IC1201 (PWM CONTROL) Q1202,...

  • Page 147: Lcd Block Diagram

    LCD BLOCK DIAGRAM LCD C.B.A. VIDEO SIGNAL LCD PANEL UNIT FP9001 LCD -15V IC9010 (RGB SIGNAL PROCESS/LCD PANEL INDICATOR CONTROL) FP9001 LCD +3V FP9001 STH2 FP9001 V/H SYNC STH1 FP9001 H COUNTER SEPA CPH3 FP9001 CPH2 FP9001 V-SYNC SEPA CPH1 FP9001 LCD DRIVE LCD +7V...

  • Page 148: Evf Block Diagram

    EVF BLOCK DIAGRAM VIDEO SIGNAL EVF C.B.A. L903 P903 P903 VR906 BRIGHTNESS IC901 (EVF DRIVE) Q907 FROM VIDEO P902 LUMINANCE BLOCK DIAGRAM H.DEFLECTION COIL T901 SYNC VERTICAL SYNC VERTICAL SEPARATION SEPARATOR HORIZONTAL HORIZONTAL V.DEFLECTION C923 COIL VERTICAL DRIVE L904 C924 VR901 VR903 V.SIZE...

  • Page 149: Color Evf Block Diagram

    COLOR EVF BLOCK DIAGRAM VIDEO SIGNAL COLOR EVF A C.B.A. EVF LCD PANEL UNIT IC901 (RGB SIGNAL PROCESS/LCD PANEL INDICATOR CONTROL) FP901 X SHIFT REGISTER 1 FP901 FP901 +4.5V FP901 X SHIFT REGISTER 2 V SYNC V-PULSE SEPARATION FP901 P901 V/H SYNC LUMINANCE HH-KIL...

  • Page 150: Exploded Views

    EXPLODED VIEWS LUBRICATION POINTS VCR MECHANISM SECTION When the marked parts are replaced, apply the recommended lubricants or adhesive for better maintenance of the unit. Mark Kind of Lubricant Availability Part Number Molytone Grease Available from Factory VFK1024 Purchase from Local Supplier - - - - - - - - Grease Available from Factory VFKS0081...

  • Page 151: Camera And Frame Section

    CAMERA AND FRAME SECTION LUBRICATION POINTS When the marked parts are replaced, apply the recommended lubricants or adhesive for better maintenance of the unit. Mark Kind of Lubricant Availability Part Number Molytone Grease Available from Factory VFK1024 Purchase from Local Supplier - - - - - - - - NOTE 2 : Grease Available from Factory...

  • Page 152: Frame And Lcd Section

    FRAME AND LCD SECTION IMPORTANT SAFETY NOTICE: COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS. NOTE 3 To C' in Camera and Frame Section NOTE 3 : Lamp is supplied as a Lamp Kit only (Kit No.

  • Page 153: Evf Section (Model: A,B)

    EVF SECTION IMPORTANT SAFETY NOTICE: (Model: A, B) COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS. To B' in Camera COMPARISON CHART OF MODELS & MARKS and Frame Section MODEL MARK...
  • Page 154 COLOR EVF SECTION IMPORTANT SAFETY NOTICE: (Model: COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS. COMPARISON CHART OF MODELS & MARKS MODEL MARK PV-L759 PV-L779 PV-L859 PL901 To B' in Camera and Frame Section...

  • Page 155: Packing Parts And Accessories Section

    PACKING PARTS AND ACCESSORIES SECTION COMPARISON CHART OF MODELS & MARKS MODEL MARK 76 (C) PV-L759 PV-L779 PV-L859 (A,C) not supplied...

This manual is also suitable for:

Palmcorder vhsc palmsight pv-l779Palmcorder vhsc palmsight pv-l859

Table of Contents
