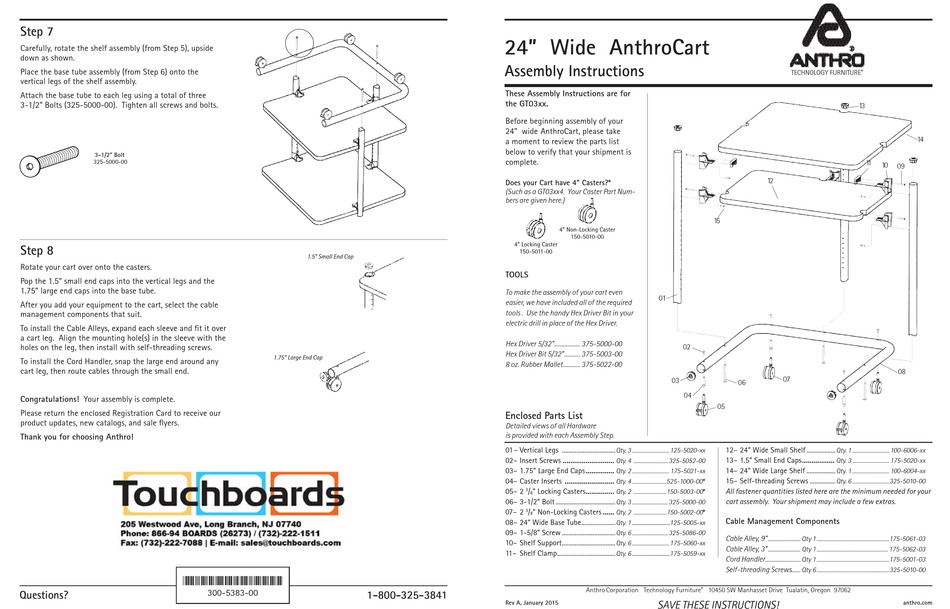

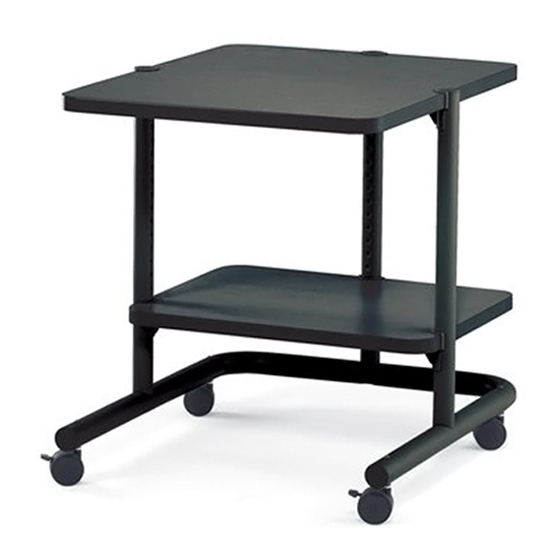

Anthro AnthroCart GT03 Series Assembly Instructions

Step 7
Carefully, rotate the shelf assembly (from Step 5), upside
down as shown.
Place the base tube assembly (from Step 6) onto the
vertical legs of the shelf assembly.
Attach the base tube to each leg using a total of three
3-1/2" Bolts (325-5000-00). Tighten all screws and bolts.
3-1/2" Bolt
325-500 0-00
Step 8
Rotate your cart over onto the casters.
Pop the 1.5" small end caps into the vertical legs and the
1.75" large end caps into the base tube.
After you add your equipment to the cart, select the cable
management components that suit.
To install the Cable Alleys, expand each sleeve and fit it over
a cart leg. Align the mounting hole(s) in the sleeve with the
holes on the leg, then install with self-threading screws.
To install the Cord Handler, snap the large end around any
cart leg, then route cables through the small end.
Congratulations! Your assembly is complete.
Please return the enclosed Registration Card to receive our
product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
*300-5383-00*
Questions?
1.5" Small End Cap
1.75" Large End Cap
300-5383-00
1-800-325-3841
24" Wide AnthroCart
Assembly Instructions
These Assembly Instructions are for
the GT03xx.
Before beginning assembly of your
24" wide AnthroCart, please take
a moment to review the parts list
below to verify that your shipment is
complete.
Does your Cart have 4" Casters?*
(Such as a GT03xx4. Your Caster Part Num-
bers are given here.)
4" Non-Locking Caster
150-5010-00
4" Locking Caster
150-5011-00
TOOLS
To make the assembly of your cart even
01
easier, we have included all of the required
tools . Use the handy Hex Driver Bit in your
electric drill in place of the Hex Driver.
Hex Driver 5/32".................. 375-5000-00
02
Hex Driver Bit 5/32" ........... 375-5003-00
8 oz. Rubber Mallet............ 375-5022-00
03
04
Enclosed Parts List
Detailed views of all Hardware
is provided with each Assembly Step.
01– Vertical Legs .................................
Qty. 3 ............................ 125-5020-xx
02– Insert Screws ...........................
Qty. 4 .......................... 325-5052-00
03– 1.75" Large End Caps ...............
Qty. 2 ............................ 175-5021-xx
04– Caster Inserts ..........................
Qty. 4 ..........................525-1000-00*
" Locking Casters ...............
05– 2 3 / Qty. 2 .........................150-5003-00*
8
06– 3-1/2" Bolt .....................................
Qty. 3 ........................... 325-5000-00
07– 2 / " Non-Locking Casters ......
3 Qty. 2 .........................150-5002-00*
8
08– 24" Wide Base Tube .....................
Qty. 1 ..........................125-5005-xx
09– 1-5/8" Screw .................................
Qty. 6 ........................... 325-5086-00
10– Shelf Support .................................
Qty. 6 ............................ 175-5060-xx
11– Shelf Clamp ....................................
Qty. 6 ..........................175-5059-xx
Anthro Corporation Technology Furniture
SAVE THESE INSTRUCTIONS!
Rev A, January 2015
TECHNOLOGY FURNITURE ®
13
1 1
12
15
07
06
05
12– 24" Wide Small Shelf ..................
Qty. 1 ............................ 100-6006-xx
13– 1.5" Small End Caps .................
Qty. 3 ............................ 175-5020-xx
14– 24" Wide Large Shelf ..................
Qty. 1 ............................ 100-6004-xx
15– Self-threading Screws ................
Qty. 6 ............................325-5010-00
All fastener quantities listed here are the minimum needed for your
cart assembly. Your shipment may include a few extras.
Cable Management Components
Cable Alley, 9" ......................
Qty 1 .......................................................175-5061-03
Cable Alley, 3" ......................
Qty 1 ...................................................... 175-5062-03
Cord Handler ........................
Qty 1 .......................................................175-5001-03
Self-threading Screws...... Qty 6 .......................................................325-5010-00
