State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
DW-BJCUBE4T-DL
Default Login Information for DW Spectrum® IPVMS
Username: admin

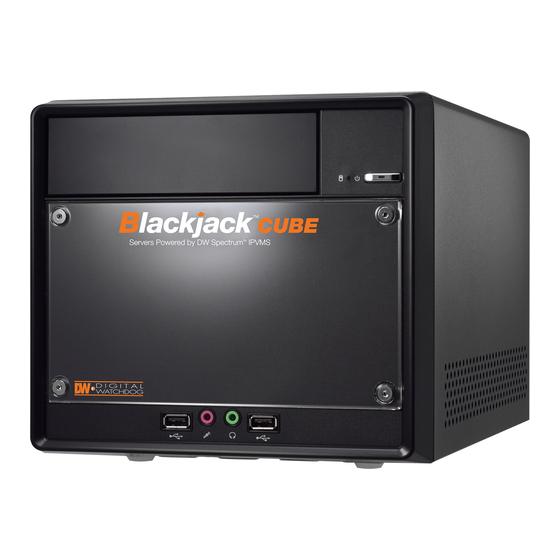

Cube-DL™ server
Quick start guide
NOTE: Download all you support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® IPVMS full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
Blackjack® Cube-DL™ — Up to 480Mbps
or up to 3 MEGApix® Pano™ 48MP IP cameras (DWC-PZV2M72T)
DW-BJCUBE8T-DL DW-BJCUBE12T-DL DW-BJCUBE16T-DL DW-BJCUBE20T-DL
Password: admin12345
Default login information for the server's OS
Username: dwuser
WHAT'S IN THE BOX
1
Keyboard and mouse
1
Power cable
Quick Start Guide
Password: Dw5pectrum
1 set
1
digital-watchdog.com
Advertisement
Related Manuals for Digital Watchdog lackjack DW-BJCUBE4T-DL
Summary of Contents for Digital Watchdog lackjack DW-BJCUBE4T-DL

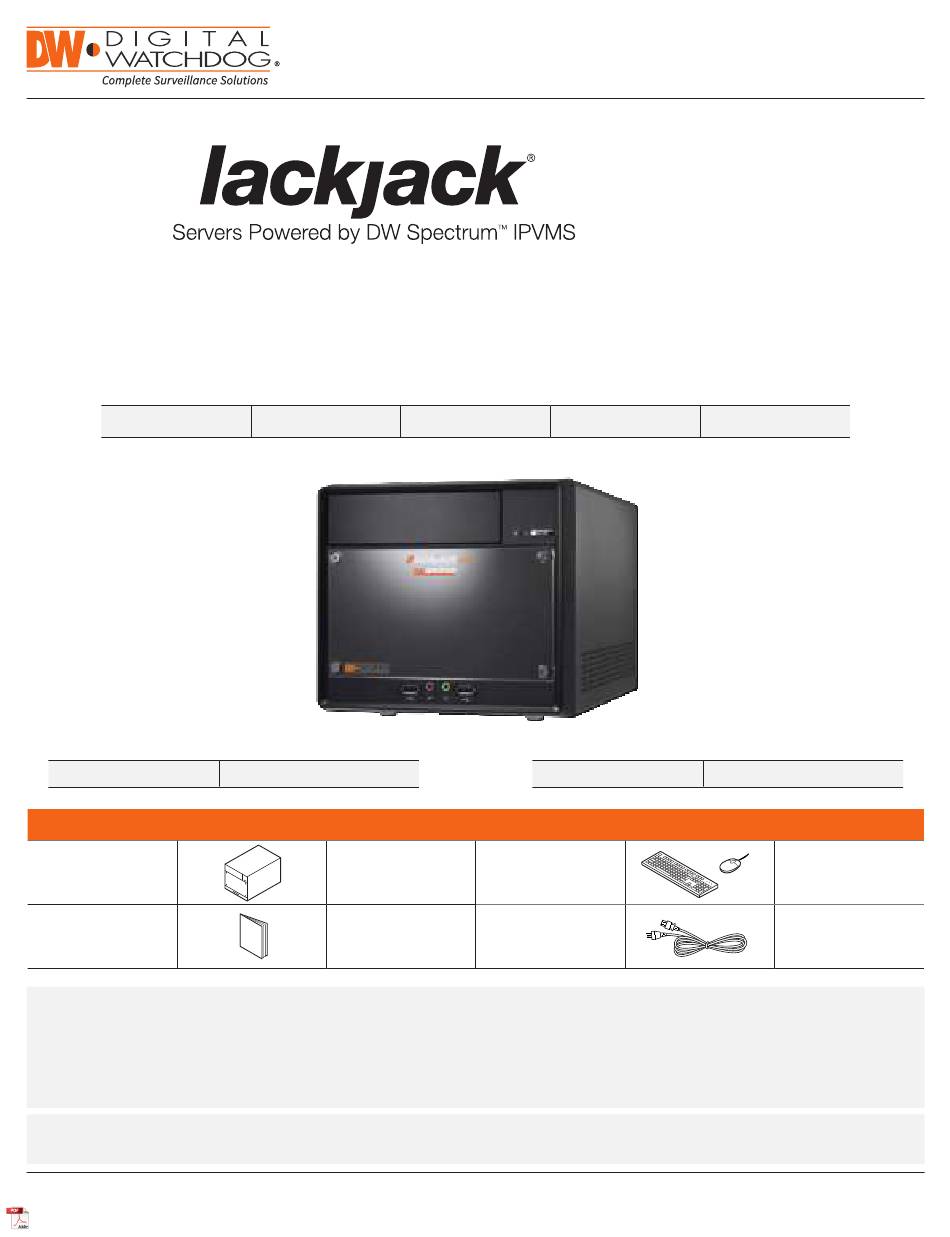

- Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack® Cube-DL™ — Up to 480Mbps or up to 3 MEGApix® Pano™ 48MP IP cameras (DWC-PZV2M72T) DW-BJCUBE4T-DL DW-BJCUBE8T-DL DW-BJCUBE12T-DL DW-BJCUBE16T-DL DW-BJCUBE20T-DL Default Login Information for DW Spectrum® IPVMS Default login information for the server’s OS Username: admin Password: admin12345...
-
Page 2: Specifications
BLACKJACK® CUBE-DL™ HARDWARE HDD LED Power button / Power LED 5.25" bay Front Back USB 2.0 port Microphone jack Headphone jack USB 2.0 port AC Power socket Display port True HD port D-Sub port USB 3.0 ports USB 2.0 ports LAN port Clear CMOS button PS/2 port... -
Page 3: Setting Up The Server
Quick Start Guide SETTING UP THE SERVER STEP 1: Connect external devices, power and network. 1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the Ethernet ports (B13 on the diagram). Configure the camera’s network first, then configure the server’s local network. 2. - Page 4 STEP 2: Configure date and time 1. Double-click on the date and time icon on the desktop. 2. Change time zone if it is not correct (default is UTC-08:00 Pacific Time). OK af he c Press OK after selecting the correct time zone. Click “Change date and time…”...
- Page 5 Quick Start Guide 1. Double click on the “Network Connections” on the desktop. 2. Right click on the Ethernet with cable connected and click “Properties”. 3. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”. on 4 ( oper 4. Select “Use the following IP address” (Use the following DNS server addresses will be selected automatically). 5.
- Page 6 6. Click OK to close then click close to go back to network connections. Local Network 7. Right click on the other Ethernet, the one with network cable unplugged, and click “Properties”. 8. Select “Internet Protocol Version 4 (TCP/IPv4”) and click “Properties”. 9.
- Page 7 WINDOWS-BASED SOFTWARE MANUAL LAUNCH To launch the DW Spectrum® software on the Windows-based E-RACK: OPTION 1: Double-click the DW Spectrum® OPTION 2: Go to ‘Start’ Windows on the bottom left and desktop icon. select DW Spectrum® in the Digital Watchdog folder...
- Page 8 SETTING UP DW SPECTRUM® MEDIA SERVER Login : admin Password : admin12345 STEP 1: Initial run from the Blackjack ® server Open the DW Spectrum ® client by double click on the DW Spectrum ® icon 2. Click on the pre-configured server. 3.
- Page 9 Quick Start Guide STEP 2: To rename the server Right-click on the server name listed on the resources then click server settings. 2. Go to the general tab and enter the new server name in the name field. Click OK.
- Page 10 STEP 3: To check for updates Click on the menu then click “System Administration”. 2. Go to the updates tab. If the system requires updating, click on the update system button.
- Page 11 Quick Start Guide If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be disabled. 3. Click OK when the update is completed. STEP 4: Enter and activate licenses Go to the system administration window and click on the license tab.
- Page 12 3. Click OK to when the license key is activated. STEP 5: Configure recording Right-click on a camera in the resource tree to setup recording. Click on camera settings from the context menu.
- Page 13 Quick Start Guide 2. Go to the recordings tab. 3. Click to turn on recording. 4. Configure the camera’s schedule settings for quality, FPS and recording type. 5. Click and drag the mouse over the recording schedule to apply the settings to multiple days and times.
- Page 14 Click “All” to apply the recording settings to the entire schedule. 6. A red dot will appear next to the camera in the resource tree once recording is started.
- Page 15 Quick Start Guide STEP 6: Backup database Go to the system administration window and click on the general tab. 2. Click “Create Backup…”. 3. Navigate to the folder you want to save the database and enter a name for the backup file. Click save. It is strongly recommend to backup your data to an external storage media as well.
-
Page 16: Troubleshooting Tips
Important: OS not listed will be not be supported by DW® Tech Support Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 01/22 Specifications and pricing are subject to change without notice.
