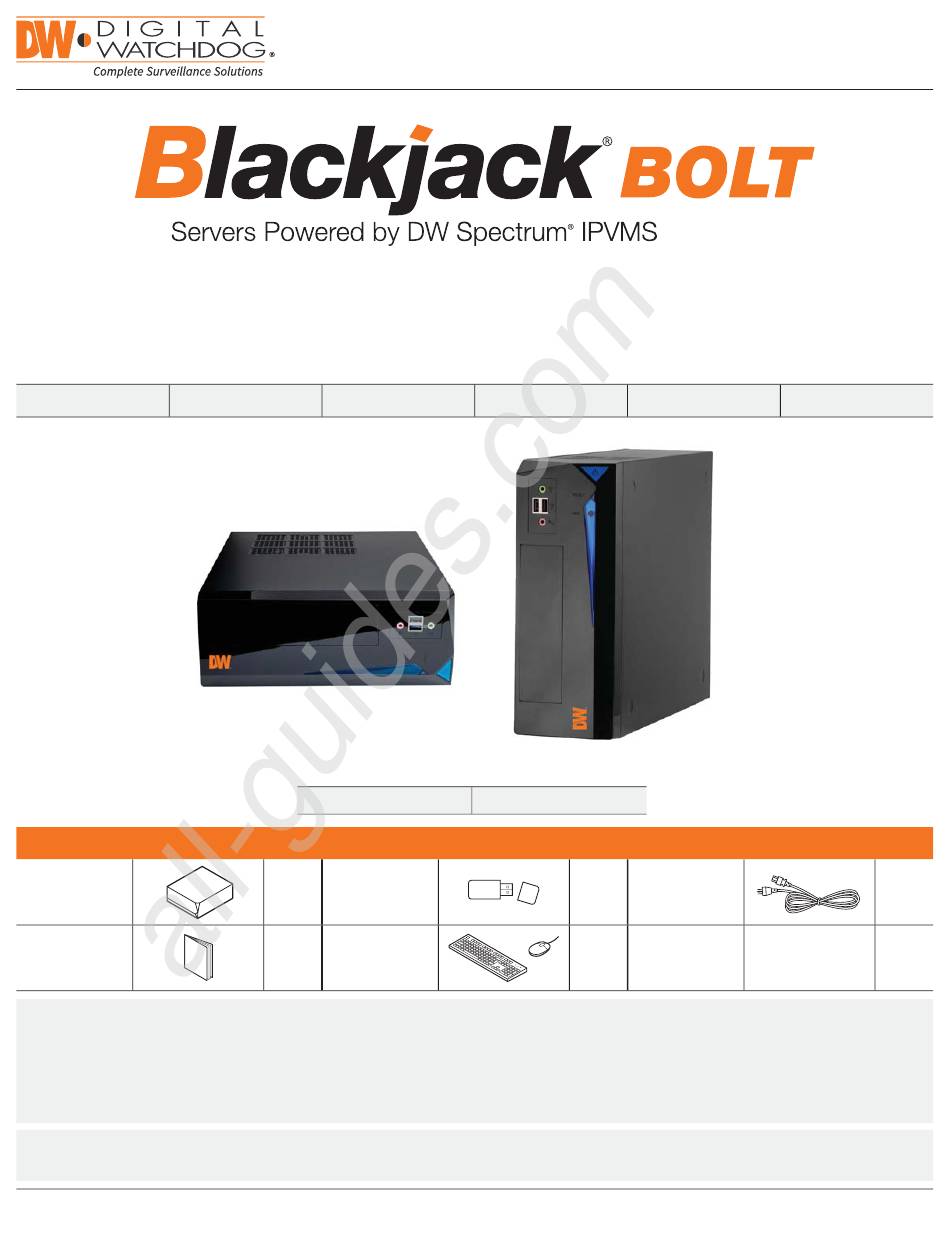

All manuals and user guides at all-guides.com Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. ® Blackjack BOLT — Up to 16 2.1MP Cameras (1080p True HD Resolution) Blackjack BOLT-LX DW-BJBOLT2T-LX DW-BJBOLT4T-LX DW-BJBOLT6T-LX DW-BJBOLT8T-LX...
Page 2

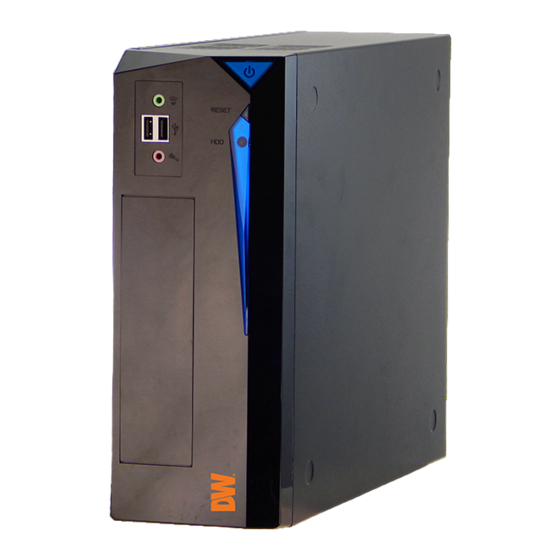

All manuals and user guides at all-guides.com BLACKJACK BOLT HARDWARE HDD LED Power Button / Power LED USB 2.0 Port Microphone Jack Headphone Jack Reset Button Front AC Power Socket PS/2 Keyboard and PS/2 Mouse Port DVI-D Port HDMI Port USB 2.0 Ports Mic In (Pink) Line Out (Green)
Page 3
All manuals and user guides at all-guides.com Quick Start Guide SETTING UP THE BOLT STEP 1: Connect peripherals, power and network 1. Connect a monitor, USB keyboard, USB mouse, and network cable to the camera network (B9 on the diagram). * Cable for the Local Network should be connected after the IP settings are configured.
Page 4
All manuals and user guides at all-guides.com 3. Turn on the server if the server does not turn on automatically. (Press the Power Button on the front of the BOLT. F2 on the diagram). * Connecting the power cable to the live power source may turn on the server automatically STEP 2: Set Date and Time 1.
Page 5
All manuals and user guides at all-guides.com Quick Start Guide STEP 3: Configure Network Please have the following information ready before starting the network configuration. Camera Network Local Network (LAN) IP Address Netmask Gateway Not Applicable DNS Servers Not Applicable * Camera Network and Local Network cannot be on the same network.
Page 6
All manuals and user guides at all-guides.com 6. Enter IP Address then press Tab on the keyboard to move to Netmask. 7. Ignore any populated values and enter the valid Netmask value, then press Tab on the keyboard to move to the Gateway. 8.
Page 7
All manuals and user guides at all-guides.com Quick Start Guide 12. Click on the DNS Servers field box and enter DNS server address. 13. Click Save. 14. Connect a network cable from B10 Ethernet port on the diagram (page 2) to the switch connecting to the local network.
Page 8
All manuals and user guides at all-guides.com 3. Enter password and click connect. Default password : admin1234 (case sensitive) STEP 2: To rename the server 1. Right click on the server name listed on the Resources then click Server Settings.
Page 9
All manuals and user guides at all-guides.com Quick Start Guide 2. Go to General tab, then type in the new server name in the Name field and click OK. STEP 3: To check for update 1. Click on the menu then click System Administration.
Page 10
All manuals and user guides at all-guides.com 2. Go to Updates tab. Click Update System if turned orange. If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be greyed out. 3.
Page 11
All manuals and user guides at all-guides.com Quick Start Guide STEP 4: Enter License 1. Go to System Administration then click License tab. 2. Enter License Key then click Activate License button. (Internet connection required) Click on Activate Trial License if you have not purchased the valid license. 3.
Page 12
All manuals and user guides at all-guides.com STEP 5: Configure recording 1. Right click on the camera to setup recording, then click Camera Settings. 2. Go to Recordings tab.
Page 13
All manuals and user guides at all-guides.com Quick Start Guide 3. Click to turn on recording. 4. Configure Schedule Settings for Quality, FPS and Recording Type. 5. Click and drag mouse over the Recording Schedule to assign the recording setting. Click on All to apply to the all schedules.
Page 14
All manuals and user guides at all-guides.com 6. Red dot will appear next to the camera when the recording is started. STEP 6: Backuping Database 1. Go to System Administration and click General tab.
Page 15
All manuals and user guides at all-guides.com Quick Start Guide 2. Click Create Backup… button. 3. Navigate to the folder where to save and enter name of the backup file then click save. Strongly recommend to also backup to the external storage media. NOTE: More information and instructions are available in the Spectrum 3.0 Manual.
