State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
Default Login Information for DW Spectrum® IPVMS
Username: admin
Blackjack Tower™
server
Quick start guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

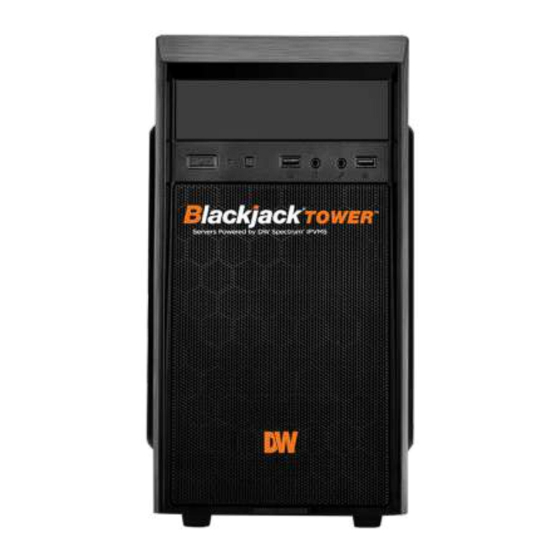

Blackjack® Tower™ mid-size servers — Up to 480Mbps
DW-BJMT31xxT/LX
Password: admin12345
WHAT'S IN THE BOX
1
1
DW-BJMT51xxT/LX
DW-BJMT71xxT/S
Default login information for the server's OS
Username: dwuser
Keyboard and mouse
Power cable
Quick Start Guide
Password: Dw5pectrum
1 set
1
digital-watchdog.com
Advertisement
Table of Contents
Related Manuals for Digital Watchdog Blackjack Tower DW-BJMT31 T/LX Series
Summary of Contents for Digital Watchdog Blackjack Tower DW-BJMT31 T/LX Series
- Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack® Tower™ mid-size servers — Up to 480Mbps DW-BJMT31xxT/LX DW-BJMT51xxT/LX DW-BJMT71xxT/S Default Login Information for DW Spectrum® IPVMS Default login information for the server’s OS Username: admin Password: admin12345 Username: dwuser...
-
Page 2: Power Button/Led
BLACKJACK® TOWER™ MID-SIZE Power button/LED HDD LED Reset button (not used) USB 2.0 port Audio output Audio input Power supply on/off switch AC power socket USB 2.0 ports PS/2 keyboard/mouse port VGA port DVI port True HD port USB 3.0 ports Network port (LAN/WAN) Line in, line out and Mic in Network port (cameras) -
Page 3: Setting Up The Server
3. Turn on the server if the server does not turn on automatically. (Press the Power Button on the front of the P-RACK. F2 on the diagram). * Connecting the power cable to the live power source may turn on the server automatically Quick Start Guide SETTING UP THE E-RACK STEP 1:... - Page 4 Linux® 1. Open Settings 2. Click Details 3. Click Date &Time 4. Turn OFF Automatic Date & Time and Automatic Time Zone 5. Click Date & Time and set correct date and time 6. Click Time Zone and set to correct Time zone. (type one of the largest cities in the time zone) 7.
-
Page 5: Local Network (Lan)
Quick Start Guide STEP 3: Configure network Please have the following information ready before starting the network configuration. Camera network Local network (LAN) IP address Subnet mask / Netmask Default gateway / Gateway Not applicable DNS servers Not applicable * The camera network and local network cannot be on the same network. NOTE The Blackjack®... - Page 6 6. Click OK to close then click close to go back to network connections. Local Network 7. Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”. 6. Click OK to close then click Close to go back to Network Connections. 6.
- Page 7 Quick Start Guide Linux® 1. Open Settings > Network 2. Click Setting of the Ethernet that is Connected 3. Change to Manual then enter Address, Netmask , Gateway. * Do not enter Gateway information if there is no Gateway in this network. 4.
- Page 8 Refer to the camera’s QSG to configure any DW® IP camera’s IP address using DW® IP finder™. Configure Cameras using DW IP Finder Refer to the camera’s QSG to configure Digital Watchdog camera’s IP address using DW IP finder. DW Spectrum® IPVMS client...
- Page 9 Quick Start Guide STEP 2: To rename the server Right-click on the server name listed on the resources then click server settings. 2. Go to the general tab and enter the new server name in the name field. Click OK. STEP 3: To check for updates Click on the menu...
-
Page 10: Configure Recording
If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be disabled. 3. Click OK when the update is completed. STEP 4: Enter and activate licenses Go to the system administration window and click on the license tab. 2. - Page 11 Quick Start Guide 3. Click to turn on recording. 4. Configure the camera’s schedule settings for quality, FPS and recording type. 5. Click and drag the mouse over the recording schedule to apply the settings to multiple days and times. Click “All”...
-
Page 12: Troubleshooting Tips
Important: OS not listed will be not be supported by DW® Tech Support Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 01/22 Specifications and pricing are subject to change without notice.
