State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
Blackjack® Bolt™ — Up to 16 2.1MP/1080p cameras (true HD resolution)
DW-BJBOLT2T-LX DW-BJBOLT4T-LX DW-BJBOLT6T-LX DW-BJBOLT8T-LX DW-BJBOLT12T-LX DW-BJBOLT16T-LX
Default Login Information for DW Spectrum® IPVMS
Username: admin

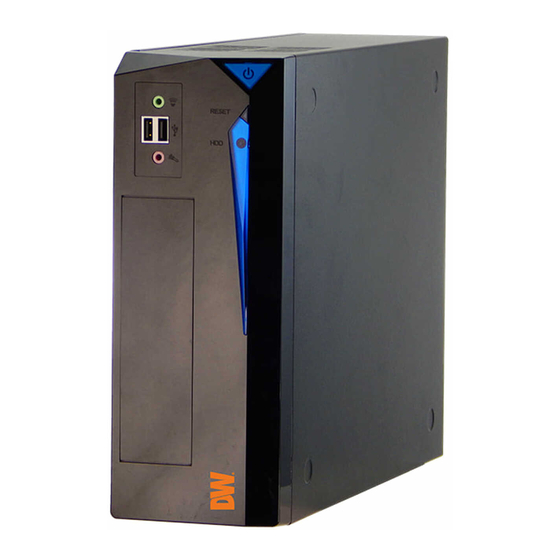

Bolt™ server
Quick start guide
NOTE: Download all your materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® IPVMS full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
Password: admin12345
WHAT'S IN THE BOX
Default login information for the server's OS
Username: dwuser
1
Keyboard and mouse
1
Power cable
Quick Start Guide
Password: Dw5pectrum
digital-watchdog.com
1 set
1 set
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digital Watchdog Blackjack Bolt DW-BJBOLT2T-LX
Summary of Contents for Digital Watchdog Blackjack Bolt DW-BJBOLT2T-LX
- Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack® Bolt™ — Up to 16 2.1MP/1080p cameras (true HD resolution) DW-BJBOLT2T-LX DW-BJBOLT4T-LX DW-BJBOLT6T-LX DW-BJBOLT8T-LX DW-BJBOLT12T-LX DW-BJBOLT16T-LX Default Login Information for DW Spectrum® IPVMS Default login information for the server’s OS Username: admin Password: admin12345...
-
Page 2: Specifications
BLACKJACK® BOLT HARDWARE HDD LED Power button / Power LED USB 2.0 port Microphone jack Headphone jack Reset button Front AC power socket PS/2 keyboard and PS/2 mouse ports DVI-D port HDMI port USB 2.0 ports Mic in (pink) Line out (green) Line in (blue) Ethernet port to the camera network Ethernet port to the local network... -
Page 3: Setting Up The Server
Quick Start Guide SETTING UP THE SERVER STEP 1: Connect external devices, power and network. Connect a monitor, USB keyboard, USB mouse and network cable to one of the Ethernet ports (B9 on the diagram). Configure the camera’s network first, then configure the server’s local network. 2. -
Page 4: Configure Date And Time
STEP 2: Configure date and time 1. Open settings > Details 3. Click Date &Time 4. Turn OFF Automatic Date & Time and Automatic Time Zone 5. Click Date & Time and set correct date and time 6. Click Time Zone and set to correct Time zone. (type one of the largest cities in the time zone) 7. - Page 5 Quick Start Guide STEP 3: Configure network Please have the following information ready before starting the network configuration. Camera network Local network (LAN) IP address Subnet mask / Netmask Default gateway / Gateway Not applicable DNS servers Not applicable * Camera network and local network cannot be on the same network. NOTE The Blackjack®...
- Page 6 4. Change to Manual then enter Address, Netmask , Gateway. * Do not enter Gateway information if there is no Gateway in this network. 5. Click Apply to save 6. Restart the connection by switching OFF then turn ON. 7. Click Settings of the Ethernet not connected. 8.
- Page 7 Quick Start Guide SETTING UP DW SPECTRUM® MEDIA SERVER Login: admin Password: admin12345 STEP 1: Initial run from the Blackjack server ® Open the DW Spectrum client by double click on the DW Spectrum icon. ® ® 2. Click on the pre-configured server. 3.
- Page 8 2. Go to the general tab and enter the new server name in the name field. Click OK. STEP 3: To check for updates Click on the menu then click “System Administration”. 2. Go to the updates tab. If the system requires updating, click on the update system button. If you are on the latest version, it will say “You have the latest version installed”...
-
Page 9: Configure Recording
Quick Start Guide 3. Click OK when the update is completed. STEP 4: Enter and activate licenses Go to the system administration window and click on the license tab. 2. Enter the license key and click “Activate License”. An Internet connection is required. Click on “Activate Trial License”... - Page 10 2. Go to the recordings tab. 3. Click to turn on recording. 4. Configure the camera’s schedule settings for quality, FPS and recording type. 5. Click and drag the mouse over the recording schedule to apply the settings to multiple days and times. Click “All”...
- Page 11 Quick Start Guide 6. A red dot will appear next to the camera in the resource tree once recording is started. STEP 6: Backup database Go to the system administration window and click on the general tab. 2. Click “Create Backup…”. 3.
-
Page 12: Troubleshooting Tips
Important: OS not listed will be not be supported by DW® Tech Support Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 06/21 Specifications and pricing are subject to change without notice.
