Blackjack DX™
server
Quick start
guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

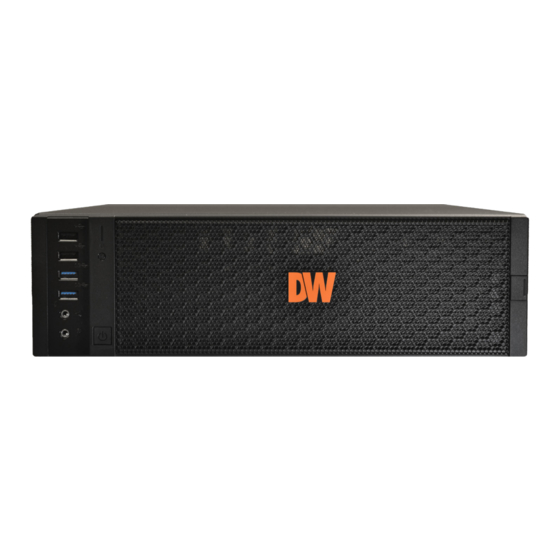

Blackjack® Ai™ slim desktop appliance
WHAT'S IN THE BOX
Keyboard and
1
mouse
1
Power cable
DW-BJAiASL
Default login information for the server's OS
Username: dwuser
1 set
1
Quick Start Guide
Password: Dw5pectrum
Mini-DP to
True HD
Adapter
digital-watchdog.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digital Watchdog Blackjack Ai
Summary of Contents for Digital Watchdog Blackjack Ai
- Page 1 Quick Start Guide Blackjack® Ai™ slim desktop appliance DW-BJAiASL Default login information for the server’s OS Username: dwuser Password: Dw5pectrum WHAT’S IN THE BOX Mini-DP to Blackjack DX™ Keyboard and 1 set True HD server mouse Adapter Quick start Power cable guide NOTE: Download all your support materials and tools in one place.
- Page 2 BLACKJACK® Ai™ SLIM DESKTOP - FRONT PANEL Power Button/Power LED Mic in (3.5mm) Audio out (3.5mm) 2x USB 3.0 ports 2x USB 2.0 ports HDD Activity LED BLACKJACK® Ai™ SLIM DESKTOP - REAR PANEL BIOS Flashback Button USB 3.2 Gen2x2 Type-C Port Power Port 1G LAN RJ45 Port USB 2.0 Port...
-
Page 3: Specifications
Quick Start Guide SPECIFICATIONS PART NUMBER DW-BJAiASL Included DW Ai Server Licenses 4 channel(DW-DWAiSLSC004) Form Factor Slim Desktop Form Factor Windows® 10 Windows 10 IoT LTSC Operating System OS on SSD 480GB SSD 12th Gen Intel® Core™ i7 processor Memory 32GB Ethernet Port 1 x 1Gb Ethernet, 1x 2.5Gb Ethernet... - Page 4 1. Double click Date and Time icon on the Desktop. 2. Change Time zone if not correct (default is UTC-08:00 Pacific Time) STEP 2: Configure Date and Time Windows STEP 2: Configure date and time STEP 2: Configure Date and Time Windows®...
- Page 5 Quick Start Guide STEP 3: Configure network Please have the following information ready before starting the network configuration. Camera network Local network (LAN) IP address Subnet mask / Netmask Default gateway / Gateway Not applicable DNS servers Not applicable * The camera network and local network cannot be on the same network. NOTE The Blackjack®...
- Page 6 Local Network 7. Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”. 8. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”. 6. Click OK to close then click Close to go back to Network Connections. Local Network 7.
- Page 7 2) Go to Plugin tab from System Administrator then select DW Ai Server Plugin from the Plugin list on the left pane. 3) Enter the IP address of the Blackjack Ai Appliance. 4) Click OK or Apply to save the setting.
- Page 8 1. DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can be used to provide a complete analytic user experience during the configuration process of the DW Ai Server. Setting Up the DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can Logging in with the DW Ai Server Configuration Tool...
- Page 9 Quick Start Guide 2) Once you are logged in and connected to the DW Ai Server through the DW Ai Server Configuration Tool, a list will show all added cameras in the left-side panel. 2) v panel. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle.
- Page 10 • DW Ai (toggle): The DW Ai button toggles the camera list between showing all cameras on the DW Spectrum System or just the STEP 2: DW Ai Server List cameras that have the plug-in enabled. This toggle appears at the If multiple DW Ai Servers will be used, the additional DW Ai Server will need to be added.
- Page 11 be managed through the DW Ai Server Configuration Tool program. To view the licenses, select “Licenses” from the Main Menu in the DW Ai Server Quick Start Guide Configuration Tool. 3.DW Ai Server Licenses STEP 3: DW Ai Server Licenses To use the analytic features of a DW Ai Server, a license is required.
- Page 12 Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 11/23 Specifications and pricing are subject to change without notice.
