State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
Default Login Information for DW Spectrum® IPVMS
Username: admin
Rack™ Server
Quick Start
Guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

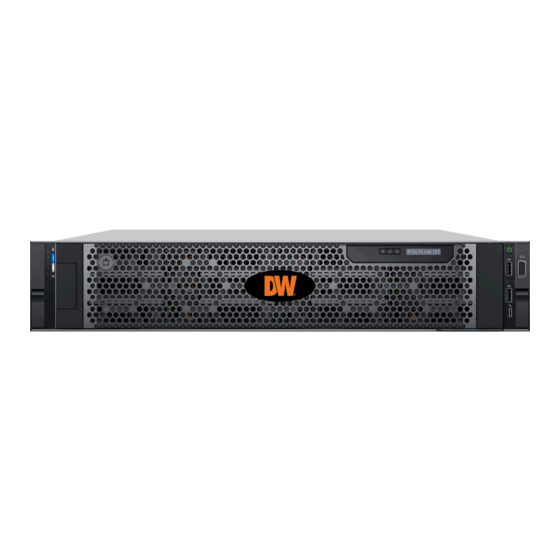

Blackjack® Rack™ servers — Up to 600Mbps
DW-BJRR2UxxT
DW-BJRR2PxxT
Password: admin12345
WHAT'S IN THE BOX
Keyboard and
1
Mouse
1
Power Cable
DW-BJRR2UxxTLX
DW-BJRR2PxxTLX
Default Login Information for Windows®
Username: DWBJRR
1 set
Quick Start Guide
DW-BJRR2UxxTS
DW-BJRR2PxxTS
Password: Dw5pectrum
Rail Kit
Mini-DP to
2
True HD
Adapter
1 set
1
digital-watchdog.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackjack DW-BJRR2U T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Watchdog Blackjack DW-BJRR2U T Series

  • Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack® Rack™ servers — Up to 600Mbps DW-BJRR2UxxT DW-BJRR2UxxTLX DW-BJRR2UxxTS DW-BJRR2PxxT DW-BJRR2PxxTLX DW-BJRR2PxxTS Default Login Information for DW Spectrum® IPVMS Default Login Information for Windows® Username: admin Password: admin12345 Username: DWBJRR...
  • Page 2: Specifications

    System health LED BLACKJACK® RACK™ HARDWARE OVERVIEW Lock LCD panel cursor left LCD panel menu item select LCD panel cursor right FRONT LCD display Power button VGA port (not used) USB 2.0 ports Micro-AB USB port (maintenance only) FRONT PANEL BACK AC PSU status indicator handle Power ports...
  • Page 3: Setting Up The Server

    3. Turn on the server if the server does not turn on automatically. (Press the Power Button on the front of the P-RACK. F2 on the diagram). * Connecting the power cable to the live power source may turn on the server automatically SETTING UP THE E-RACK Quick Start Guide SETTING UP THE E-RACK...
  • Page 4: Configure Network

    Press OK after adjusting to the correct date and/or time. 4. Press OK to close Date and Time when done. Linux Linux® 1. Update Date and Time by clicking on the time on the upper right-hand corner then click “Time & Date settings…” 1.
  • Page 5: Local Network (Lan)

    Please have the following information ready before starting the network configuration. Camera Network Local Network (LAN) Quick Start Guide IP Address Subnet Mask / STEP 3: Configure network Netmask Please have the following information ready before starting the network configuration. Default Gateway / Not Applicable Gateway...
  • Page 6 4. Select “Use the following IP address” (Use the following DNS server addresses will be selected automatically). 5. Enter the IP address and Subnet mask of the camera network. (Do not enter anything for the default gateway, preferred DNS server and alternate DNS server. NOTE It must be the same network as the cameras and must not be the same network as the local network.
  • Page 7 * Consult with your IT department if you do not know what IP address to use. Quick Start Guide * Consult with your IT department if you do not know what IP address to use. * Consult with your IT department if you do not know what IP address to use. 11.
  • Page 8 7. Enter IP Address then press Tab on the keyboard to move to Netmask. 7. Enter IP Address then press Tab on the keyboard to move to Netmask. 7. Enter IP Address then press Tab on the keyboard to move to Netmask. 7.
  • Page 9 Refer to the camera’s QSG to configure any DW® IP camera’s IP address using DW® IP finder™. Configure Cameras using DW IP Finder Refer to the camera’s QSG to configure Digital Watchdog camera’s IP address using DW IP finder. DW Spectrum® IPVMS client...
  • Page 10 3. Enter the password and click connect. Default password: admin12345 (case sensitive). STEP 2: To rename the server Right-click on the server name listed on the resources then click server settings. 2. Go to the general tab and enter the new server name in the name field. Click OK.
  • Page 11 Quick Start Guide STEP 3: To check for updates Click on the menu then click “System Administration”. 2. Go to the updates tab. If the system requires updating, click on the update system button. If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be disabled.
  • Page 12 3. Click OK when the update is completed. STEP 4: Enter and activate licenses Go to the system administration window and click on the license tab. 2. Enter the license key and click “Activate License”. An Internet connection is required. The license text file will be placed on the desktop and located on a sticker on the top of the server.
  • Page 13: Configure Recording

    Quick Start Guide STEP 5: Configure recording Right-click on a camera in the resource tree to setup a recording schedule for it. Click on camera settings from the context menu. 2. Go to the recordings tab. 3. Click to turn on the recording. 4.
  • Page 14 Click “All” to apply the recording settings to the entire schedule. 6. A red dot will appear next to the camera in the resource tree once the recording is started.
  • Page 15 Quick Start Guide STEP 6: Backup database Go to the system administration window and click on the general tab. 2. Click “Create Backup…”. 3. Navigate to the folder you want to save the database and enter a name for the backup file. Click “Save”. It is strongly recommended to backup your data to external storage media as well.
  • Page 16: Troubleshooting Tips

    Important: OS not listed will be not be supported by DW® Tech Support Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@dwcc.tv Copyright © Digital Watchdog. All rights reserved. Rev: 04/21 Ver: 1.1 Specifications and pricing are subject to change without notice.
