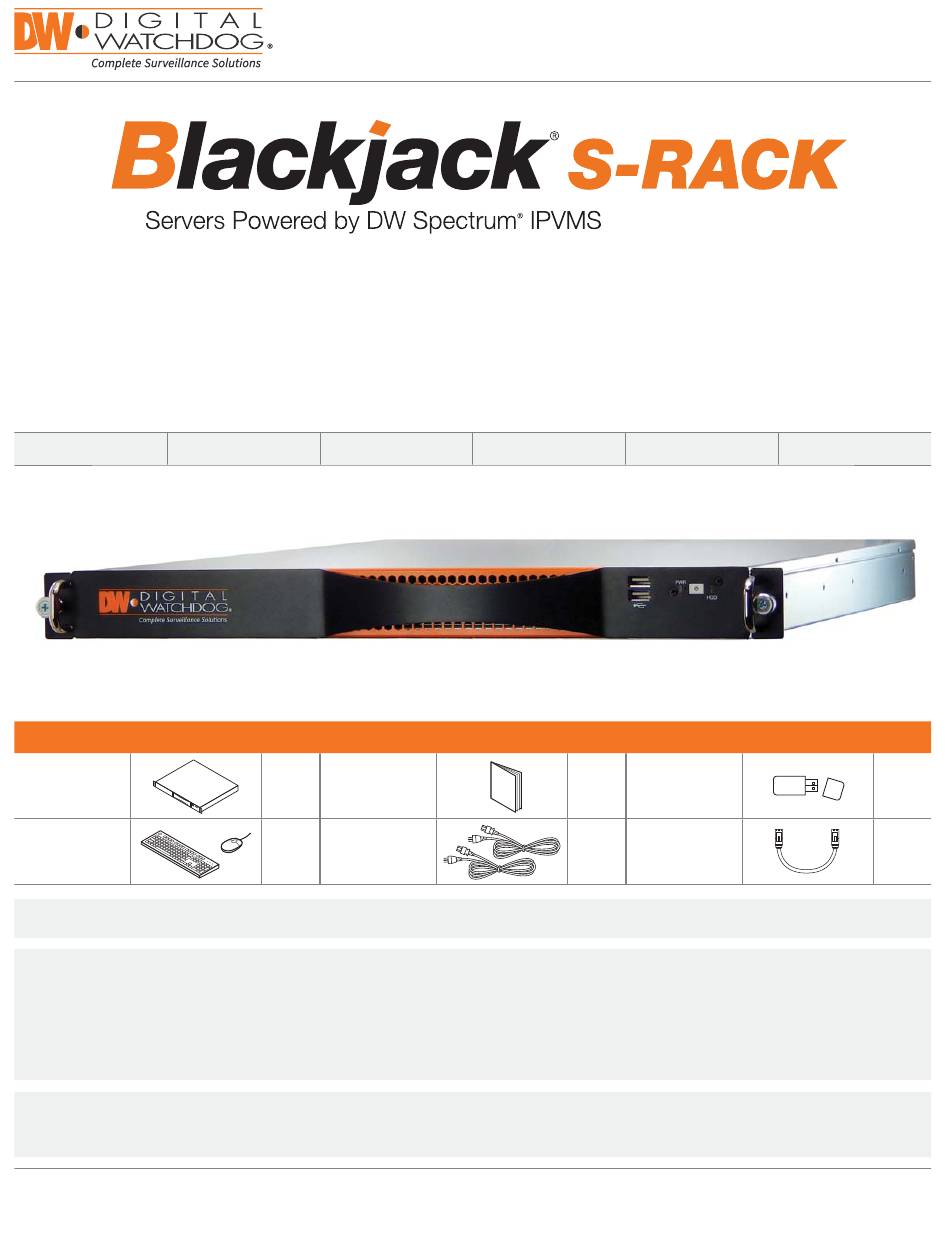

State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
Blackjack
DW-BJS1U3T-LX
DW-BJS1U6T-LX
S-RACK Server
Keyboard and
Mouse
NOTE: Monitor and network cables are not included.
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part numbers will
populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and firmware will appear in the results.
ATTENTION
This document is intended to serve as a quick reference for initial set-up. See the DW Spectrum
more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
™
S-RACK — Up to 16 2.1MP Cameras (1080p True HD Resolution)

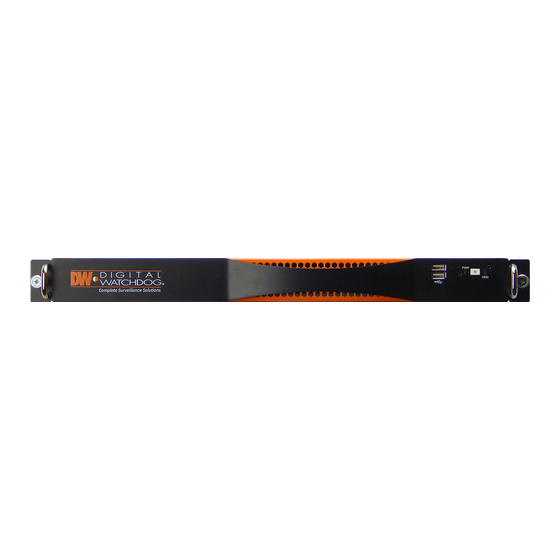

Blackjack S-RACK
DW-BJS1U9T-LX
1 Set
Quick Start Guide
1 Set
Power Cable (x2)
DW-BJS1U12T-LX
WHAT'S IN THE BOX
Quick Start Guide
DW-BJS1U18T-LX
OS Recovery USB
1 Set
(Emergency
Recovery)
1 Set
Patch Cable
™
IPVMS full manual for
DW-BJS1U24T-LX
1 Set
1 Set
digital-watchdog.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digital Watchdog Blackjack S-RACK 1U
Summary of Contents for Digital Watchdog Blackjack S-RACK 1U
- Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack ™ S-RACK — Up to 16 2.1MP Cameras (1080p True HD Resolution) Blackjack S-RACK DW-BJS1U3T-LX DW-BJS1U6T-LX DW-BJS1U9T-LX DW-BJS1U12T-LX DW-BJS1U18T-LX DW-BJS1U24T-LX WHAT’S IN THE BOX OS Recovery USB S-RACK Server 1 Set...
- Page 2 3. Connect B4 lower port to router or DHCP server (No internet access through B4) NOTE: B3, B4 and B6 ports should be used for the camera network only. SPECIFICATIONS S-RACK MODEL Blackjack S-RACK 1U Maximum IP Cameras Included IP Licenses Form Factor...
- Page 3 Quick Start Guide SETTING UP THE S-RACK STEP 1: Connect peripherals, power and network 1. Connect a monitor, USB keyboard, USB mouse, and network cable to the camera network (B8 on the diagram). MAIN LOCAL NETWORK / INTERNET ROUTER / DHCP SERVER * Cable for the Local Network should be connected after the IP settings are configured.
- Page 4 3. Turn on the server if the server does not turn on automatically. (Press the Power Button on the front of the BOLT. F2 on the diagram). * Connecting the power cable to the live power source may turn on the server automatically STEP 2: Set Date and Time 1.
- Page 5 Quick Start Guide STEP 3: Configure Network Please have the following information ready before starting the network configuration. Camera Network Local Network (LAN) IP Address Netmask Gateway Not Applicable DNS Servers Not Applicable * Camera Network and Local Network cannot be on the same network. * Netmask is also known as Subnet Mask.
- Page 6 6. Enter IP Address then press Tab on the keyboard to move to Netmask. 7. Ignore any populated values and enter the valid Netmask value, then press Tab on the keyboard to move to the Gateway. 8. Enter the Gateway address if required then press Enter on the keyboard. * Gateway is not required on the camera network.
- Page 7 Quick Start Guide 12. Click on the DNS Servers field box and enter DNS server address. 13. Click Save. 14. Connect a network cable from B10 Ethernet port on the diagram (page 2) to the switch connecting to the local network. 15.
- Page 8 3. Enter password and click connect. Default password : admin1234 (case sensitive) STEP 2: To rename the server 1. Right click on the server name listed on the Resources then click Server Settings.
- Page 9 Quick Start Guide 2. Go to General tab, then type in the new server name in the Name field and click OK. STEP 3: To check for update 1. Click on the menu then click System Administration.
- Page 10 2. Go to Updates tab. Click Update System if turned orange. If you are on the latest version, it will say “You have the latest version installed” and the Update System button will be greyed out. 3. Click OK when update is completed.
- Page 11 Quick Start Guide STEP 4: Enter License 1. Go to System Administration then click License tab. 2. Enter License Key then click Activate License button. (Internet connection required) Click on Activate Trial License if you have not purchased the valid license. 3.
- Page 12 STEP 5: Configure recording 1. Right click on the camera to setup recording, then click Camera Settings. 2. Go to Recordings tab.
- Page 13 Quick Start Guide 3. Click to turn on recording. 4. Configure Schedule Settings for Quality, FPS and Recording Type. 5. Click and drag mouse over the Recording Schedule to assign the recording setting. Click on All to apply to the all schedules.
- Page 14 6. Red dot will appear next to the camera when the recording is started. STEP 6: Backuping Database 1. Go to System Administration and click General tab.
- Page 15 Quick Start Guide 2. Click Create Backup… button. 3. Navigate to the folder where to save and enter name of the backup file then click save. Strongly recommend to also backup to the external storage media. NOTE: More information and instructions are available in the Spectrum 3.0 Manual.
-
Page 16: Troubleshooting Tips
Important: OS not listed will be not be supported by DW ™ Tech Support Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@dwcc.tv Copyright © Digital Watchdog. All rights reserved. Rev Date: 08`/17 Specifications and pricing are subject to change without notice.
