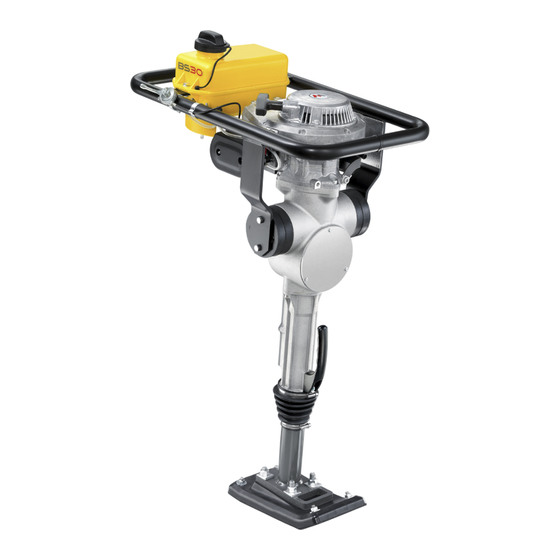

Wacker Neuson BS 30 Operator's Manual

Vibration rammer
Hide thumbs Also See for BS 30:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator´s Manual
VIBRATION RAMMER
BS 30
08.2011
0200056en / 003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wacker Neuson BS 30

Summary of Contents for Wacker Neuson BS 30

  • Page 1 Operator´s Manual VIBRATION RAMMER BS 30 08.2011 0200056en / 003...
  • Page 2 Manufacturer Wacker Neuson Produktion GmbH & Co. KG Preußenstraße 41 80809 München www.wackerneuson.com Tel.: +49-(0)89-354 02-0 Fax: +49-(0)89-354 02-390 Translation of the original operator’s manual in German...

  • Page 3: Foreword

    Foreword This operator's manual contains information and procedures for the safe opera- tion and maintenance of your Wacker Neuson machine. In the interest of your own safety and to prevent accidents, you should carefully read through the safety information, familiarize yourself with it and observe it at all times.
  • Page 4 1 Foreword...

  • Page 5: Table Of Contents

    BS 30 Foreword ........................3 Introduction ....................... 6 Means of representation for this operator's manual ............6 WACKER representative....................7 Described machine parts ....................7 Safety Information ....................8 Operating Safety ......................8 Operator Safety while using Internal Combustion Engines.......... 10 Service Safety ......................

  • Page 6: Introduction

    Introduction BS 30 Introduction Means of representation for this operator's manual Warning symbols This operator's manual contains safety imformation of the categories: DANGER, WARNING, CAUTION, NOTICE. They should be followed to prevent danger to life and limb or damage to equip- ment or improper service.

  • Page 7: Wacker Representative

    Neuson Service, your Wacker Neuson affiliate or your Wacker Neuson dealer. You can find the addresses in the Internet at www.wackerneuson.com. The addresses of the Wacker Neuson main locations are located at the end of this operator's manual. Described machine parts This operator's manual is valid for different machine parts from a product range.

  • Page 8: Safety Information

    3 Safety Information BS 30 Safety Information Operating Safety WARNING Familiarity and proper training are required for the safe operation of the ma- chine. Machines operated improperly or by untrained personnel can be hazard- ous. Read the operating instructions contained in this manual and the engine manual, and familiarize yourself with the location and proper use of all controls.
  • Page 9 BS 30 3 Safety Information 16. Always be sure the rammer will not tip over, roll, slide, or fall when not being operated. 17. Always turn the engine OFF when the rammer is not being operated. 18. Always guide the rammer in such a way that the operator is not squeezed between the rammer and solid objects.

  • Page 10: Operator Safety While Using Internal Combustion Engines

    3 Safety Information BS 30 Operator Safety while using Internal Combustion Engines DANGER Internal combustion engines present special hazards during operation and fuel- ing. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below.

  • Page 11: Service Safety

    9. ALWAYS clean debris from engine cooling fins. 10. Replace worn or damaged components with spare parts designed and recommended by Wacker Neuson Corporation. 11. Disconnect the spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up.

  • Page 12: Safety And Operating Labels

    3 Safety Information BS 30 Safety and Operating Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below: Ref. Label Meaning DANGER! No sparks, flames or burning objects near machine. WARNING! To prevent hearing loss, wear hearing protection when operating the machine.
  • Page 13 This rammer engine requires a two-cycle gasoline/oil mixture (50:1) With standard two-cycle oil use 50:1 ratio. With Wacker Neuson Neuson two- cycle or other oil meeting the NMMA TC-W3 specification, a ratio from 50:1 to 100:1 can be used. A nameplate listing the model...

  • Page 14: Operation

    This rammer engine requires a two-cycle gasoline/oil mixture. With standard two-cycle oil use 50:1 ratio. With Wacker Neuson two-cycle or other oil meeting the NMMA TC-W3, API TC, JASO FC, ISO EGD specification, a ratio from 50:1 to 100:1 can be used.

  • Page 15: To Start

    BS 30 4 Operation To Start Starting Open fuel cock. If engine is cold close starter flap on carburettor. Place throttle into idling postion. Pull hard on starter rope (max. 60 cm) until engine starts. Do not allow starter rope to snap back. After starting engine open starter flap.

  • Page 16: Proper Compaction

    4 Operation BS 30 Proper Compaction 1. Guide rammer with its handle. Allow machine to pull itself forward. DO NOT try to over-power the machine. 2. For best compaction, the shoe must hit the ground flat (b), not on its toe or heel.

  • Page 17: Transport To Work Site

    BS 30 5 Transport to work site Transport to work site Conditions: Only use suitable lifting equipment with a minimum lifting capacity of 40 kg for the transport of the vibration rammer. Always switch off engine during transport! Attach appropriate securing devices to the central lifting point (1) provided for this purpose.

  • Page 18: Maintenance

    6 Maintenance BS 30 Maintenance Periodic Maintenance Schedule Every After Every Every Daily first week month Every before months or 25 or 100 Year starting or 300 hours hours hours hours Check fuel level. Check air filter indicator. Replace as needed.

  • Page 19: Troubleshooting

    BS 30 6 Maintenance Troubleshooting Problem / Symptom Reason / Remedy Engine does not start, or stalls - No fuel in tank. - Spark plug fouled. - Fuel valve closed Engine does not accelerate, is hard to start, - Improper fuel mix. Too much oil.
  • Page 20 TECHNICAL DATA BS 30 Machine No. 0005216 ... Length x width x height 540 x 340 x 1000 Rammings shoe 280 x 150 Operating weight (masse) Power transmission From drive engine via centrifugal clutch Percussion rate/min. throttle regulatedmin Single stroke...

  • Page 21: Ec Declaration Of Conformity

    EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Preußenstraße 41, 80809 München Product Product BS 30 Product category Vibration hammer Product function Compacting soils Item number 0610350 Net installed power 1,1 kW Measured sound power 105 dB(A)
