With its feature set developed directly from ELATEC customer input, TCP3 is ready to connect any device, regardless of
make or model, onto the network for user authentication and access control.
Software
Software hooks to use the converter as a print server
+
USB whitelist for approved devices
+
TCP, UDP, HTTP, HTTPS, IPV4, DHCP, SSL/TLS1.2,
+
Syslog
Extensive status logging
+
2 GB SDRAM, 8 GB Flash – up from 1 GB SDRAM,
+
4 GB Flash

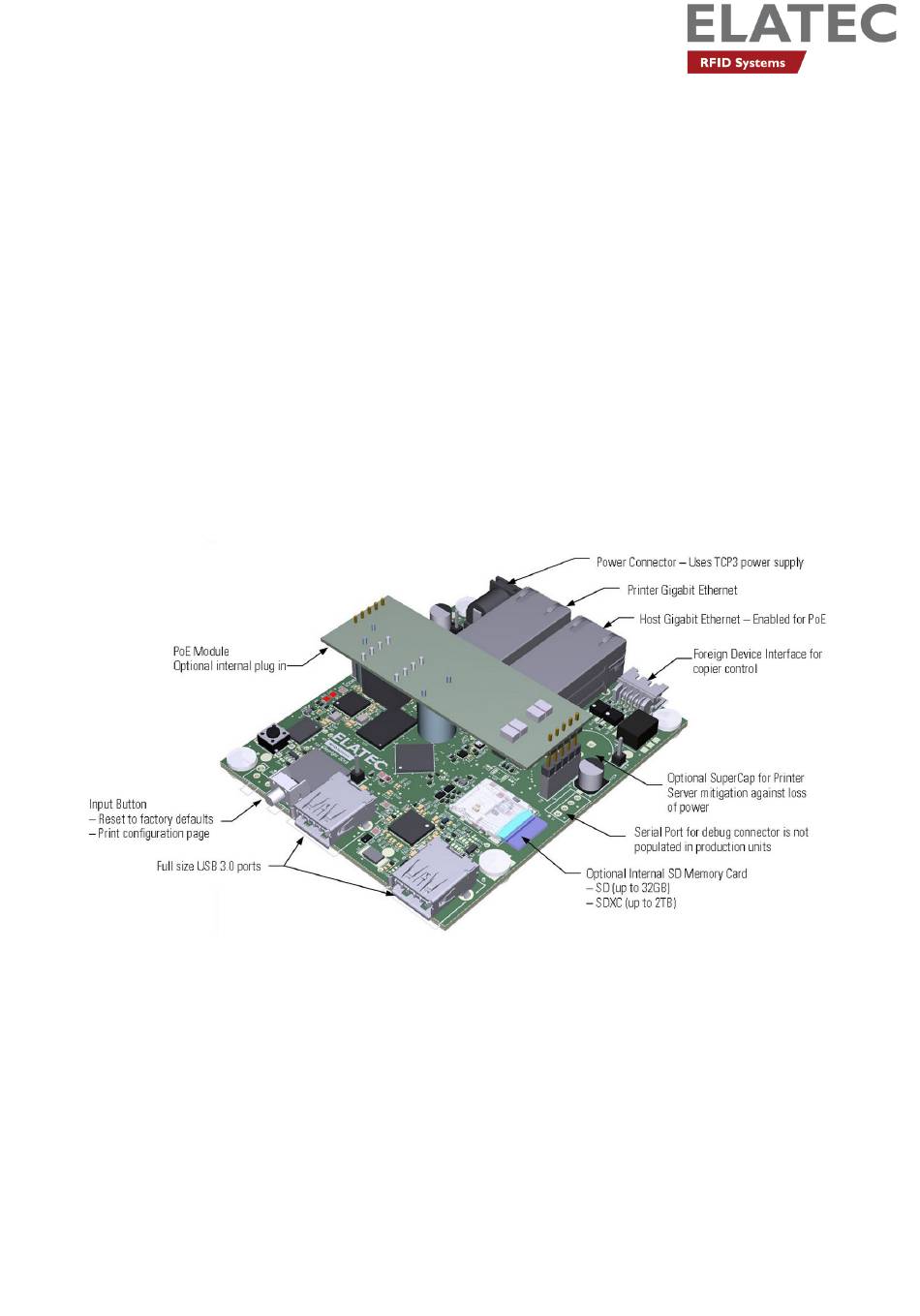

Hardware
Host and printer ports support Gigabit Ethernet (GbE)
+
Supports two (2) 3.0 USB ports
+
Input button triggered features
+
Reset to factory defaults
+
Print TCP3 configuration page
+
QUICK AND EASY CONFIGURATION
The configuration of the converter can be accomplished using either the converter's web pages or using the Windows-based
configuration tool TCP3Config. This tool was designed with fleet management in mind and can discover all converters on a given
subnet. It can also search specific subnets to discover additional converters. Once a configuration has been created and saved, it can
be distributed to all selected converters at once.
© 2020 – ELATEC GmbH – TCP3 technical description – DocRev1 – 10/2020
Optically Isolated Input and Outputs (Foreign Interface
+
Connection)
4 LEDs which use multi-color to indicate Power, Ready,
+
Busy and Status
JTAG, Tag-Connect and serial port for debug
+
OPTIONAL
Power over Ethernet (PoE) Module
+
Internal SD memory card for print server (SDHC up to
+
32 GB, SDXC up to 2 TB)
Supercapacitor (SC) to manage power interruptions
+
