9.

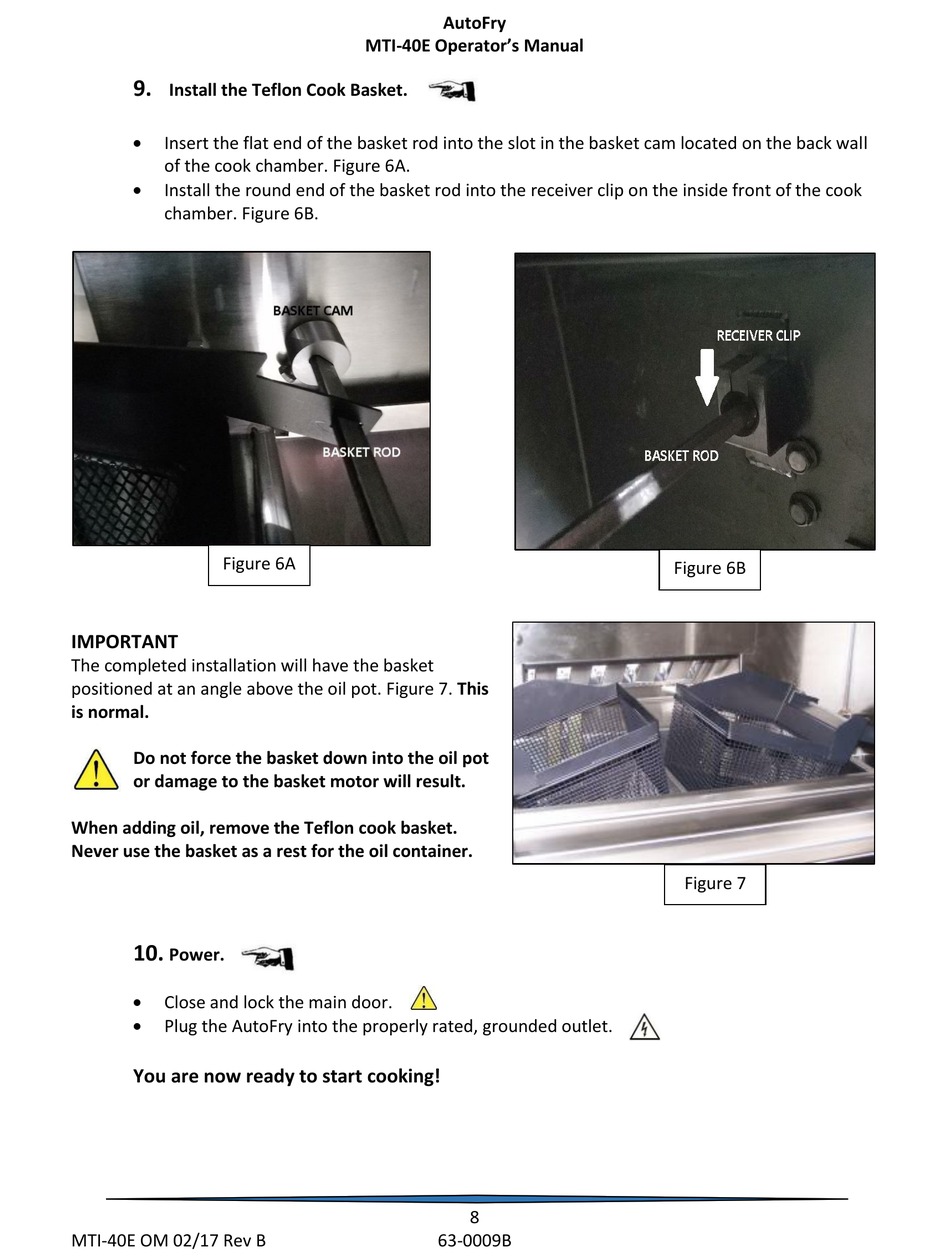

Install the Teflon Cook Basket.
Insert the flat end of the basket rod into the slot in the basket cam located on the back wall
of the cook chamber. Figure 6A.
Install the round end of the basket rod into the receiver clip on the inside front of the cook
chamber. Figure 6B.
Figure 6A
IMPORTANT
The completed installation will have the basket
positioned at an angle above the oil pot. Figure 7. This
is normal.
Do not force the basket down into the oil pot
or damage to the basket motor will result.
When adding oil, remove the Teflon cook basket.
Never use the basket as a rest for the oil container.
10.

Power.

Close and lock the main door.
Plug the AutoFry into the properly rated, grounded outlet.
You are now ready to start cooking!
MTI-40E OM 02/17 Rev B
AutoFry
MTI-40E Operator's Manual
8
63-0009B
Figure 6B
Figure 7
