Svantek SV 977D User Manual page 91

91 SV 977D User Manual

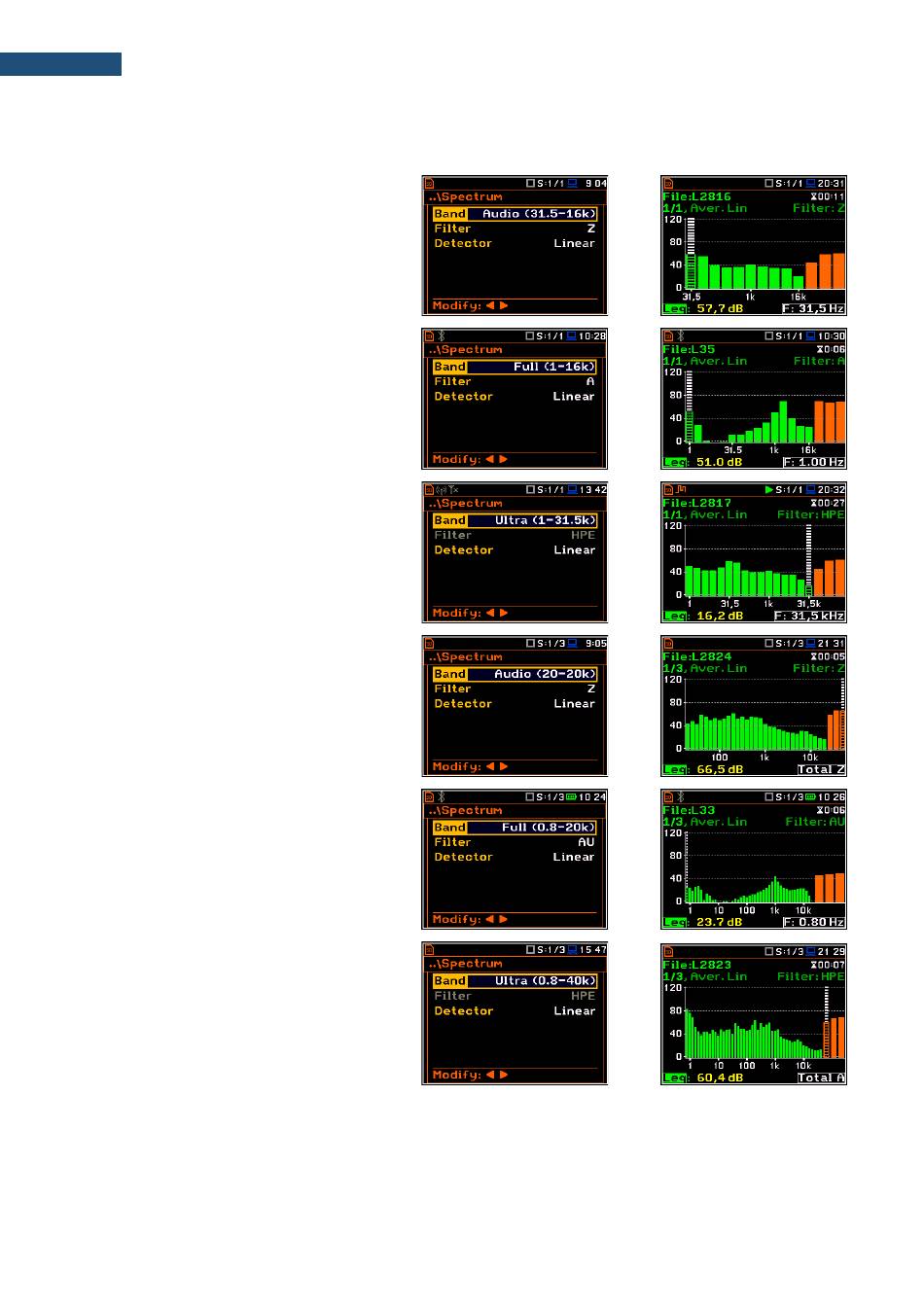

Band
The Band parameter defines the band of 1/1 octave or 1/3 octave analysis.
Available bands of the sound analysis are as
follows:
• 1/1 Octave:
- Audio (31.5-16k) - 10 filters with
centre frequencies from 31.5 Hz to
16 kHz
- Full (1-16k) - 15 filters with centre
frequencies from 1.0 Hz to 16 kHz
- Ultra (1-31.5k) - 16 filters with centre
frequencies from 1 Hz to 31.5 kHz
• 1/3 Octave:
- Audio (20-20k) - 31 filters with centre
frequencies from 20 Hz to 20 kHz
- Full (0.8-20k) - 45 filters with centre
frequencies from 0.8 Hz to 20 kHz
- Ultra (0.8-40k) - 48 filters with centre
frequencies from 0.8 Hz to 40 kHz
=>
=>
=>
=>
=>
=>
