If you have a problem, question,
or request, call your local dealer,
or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people
who want to help you.
(Outside the U.S.A., Canada,
Mexico, Puerto Rico, and the
U.S. Virgin Islands, call:
1.616.247.2500)
Or visit our website
www.steelcase.com
Si vous avez un problème, question,
ou la demande, appellent votre
revendeur local, ou
Ligne 1 de Steelcase à
888.STEELCASE (888,783,3522)
pour l'action immédiate par les
personnes qui veulent vous aider.
(en dehors des Etats-Unis, Canada,
Le Mexique, Porto Rico, et
Les ÉTATS-UNIS. Les Îles Vierges,
appel: 1,616,247,2500)
Ou visiter notre website
www.steelcase.com
Si usted tiene un problema, pregunta,
o la petición, llama a su distribuidor
local, o Línea 1 de Steelcase en
888.STEELCASE (888,783,3522)
para la acción inmediata por la
gente que desea ayudarle.
(fuera de los E.E.U.U., Canadá,
Méjico, Puerto Rico, y Los E.E.U.U..
Islas de la Virgen, llamada:
1,616,247,2500)
O visite nuestro website
www.steelcase.com
©
1998 Steelcase Inc.
Rapids Grand, MI 49501
U.S.A.
Les ETATS-UNIS.
Los E.E.U.U.
Printed in U.S.A.
Imprimé aux Etats-Unis.
Impreso en los E.E.U.U.
®
Avenir
®
Movable Walls
Model:PFF - 16 Standard and power panel flat foot (adjustable)
The stabilizer foot is used to stabilize a run of
panels. It is not intended for use on panels that

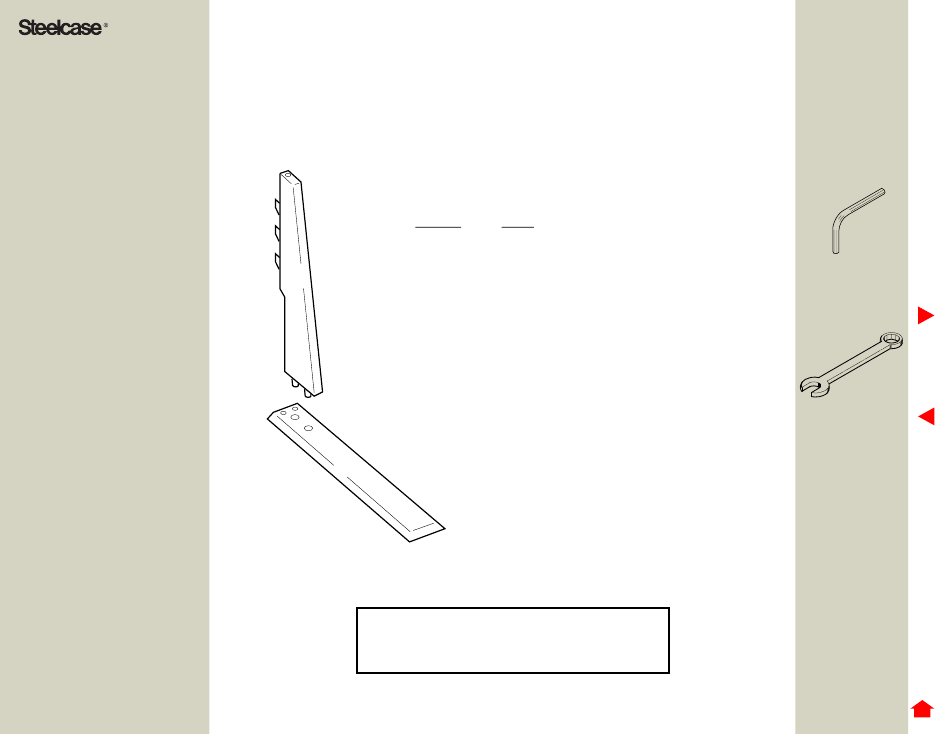

Package Contents
Item No.
Name
1
(1) Foot Partition
2
(1) Foot Base
3
(2) Foot Attaching Plates
(Single & Double)
4
(4) 1/4 -20 x 3/4" Bolts
5
(2) Special 1/4 - 20 x 3/4" Bolts
6
Spacer
- CAUTION -
support hang-on components.
3/16" Allen Wrench
1
of
4
3/8" Socket Wrench
939500814 Rev A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Avenir Movable Walls PFF-16
Summary of Contents for Steelcase Avenir Movable Walls PFF-16
- Page 1 Ou visiter notre website www.steelcase.com Si usted tiene un problema, pregunta, o la petición, llama a su distribuidor local, o Línea 1 de Steelcase en 3/8” Socket Wrench 888.STEELCASE (888,783,3522) para la acción inmediata por la gente que desea ayudarle.
- Page 2 Secure foot attaching plate (Item 3) Single(Item 6) to bottom of panel assembly with (2) 1/4-20 X 3/4" bolts(Item 5). Refer to Fig. "A". When joining additional panels posi-tion the attaching plate (Item 3) as shown in Fig. "B". If thepanel is the last panel in a series of panels place attaching plate(Item 3) in the manner shown in Fig.
- Page 3 Adjust panel glide for desired height. Now secure foot base (Item 2) to attaching plate (Item 3) PANEL ASSEMBLY with (2) bolts (Item 4) do not tighten at this time. Refer to Fig D Insert foot partition pins (Item 1) into holes on foot base (Item 2) while at the same time inserting hanger bracket tabs into panel notches.
- Page 4 - IMPORTANT - When your panel is not supported with adjoining furniture another panel secured at an angle, it is necessary to use (2) feet as shown in Fig G below. PANEL ASSEMBLY PANEL FOOT PANEL FOOT FIG G 939500814 Rev A...
