Summary of Contents for Spirax Sarco MPC1
-
Page 1: Table Of Contents
0549750/5 IM-P054-08 CH Issue 5 MPC1, MPC2 and MPC2A Spirax-Monnier High Efficiency Compressed Air Filter /Regulators Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation and commissioning 4. Operation 5. Spare parts and maintenance © Copyright 2006... - Page 2 IM-P054-08 CH Issue 5...
-
Page 3: Safety Information
As part of our conformity assesment, an ignition hazard analysis to EN 13463-1 was conducted with the following outcome: • We have determined the MPC1 does not have its own effective sources of ignition - even in the event of rare failures. - Page 4 1.9 Tools and consumables Before starting work ensure that you have suitable tools and /or consumables available. Use only genuine Spirax Sarco replacement parts. 1.10 Protective clothing Consider whether you and /or others in the vicinity require any protective clothing to protect against the hazards of, for example, chemicals, high /low temperature, radiation, noise, falling objects, and dangers to eyes and face.
- Page 5 1.16 Returning products Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Spirax Sarco they must provide information on any hazards and the precautions to be taken due to contamination residues...
-
Page 6: General Product Information

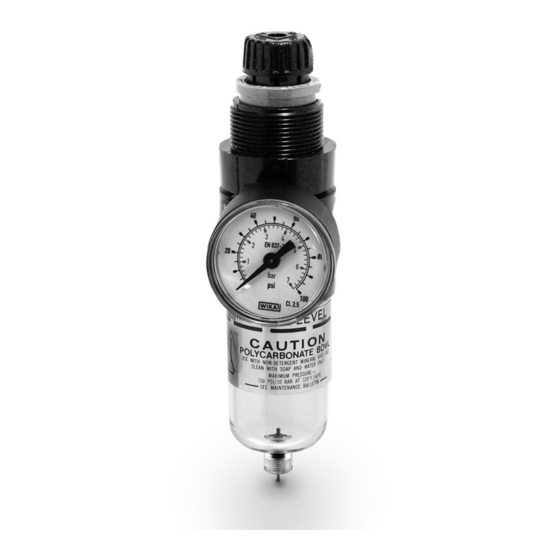

In the American D.O.P. test, a cloud of droplets of mass mean diameter 0.3 micron is used. Available types supplied as standard ATEX compatible. MPC1 Metal bowl with manual drain and tamper-proof cap. MPC2 Polycarbonate bowl with manual drain. MPC2A Metal bowl with autodrain. - Page 7 2.4 Operating limits Polycarbonate bowl 10 bar g @ 50°C (145 psi g @ 122°F) Maximum pressure /temperature Metal bowl 17 bar g @ 80°C (246.5 psi g @ 176°F) 2.5 Materials Part Material Body Aluminium - anodised finish Plastic bowl Polycarbonate or aluminium alloy Bonnet assembly Polycarbonate or alluminium...
-
Page 8: Installation And Commissioning
The FK21 fixing kit is required to mount The filter /regulator can be mounted using the MPC2 onto the Spirax Sarco range of this zinc plated mild steel bracket and PN pneumatic actuators. The fixing kit and aluminium mounting ring. - Page 9 3.3 Installation 3.3.1 The unit should be fitted in horizontal pipework with the bowl vertically downwards. 3.3.2 Adequate space should be provided around the unit to allow easy access for routine servicing requirements (see Figure 4 for withdrawal distances). 3.3.3 Connect the unit so that the airflow is in the direction indicated by the arrow on the body.
-
Page 10: Operation
4. Operation 4.1 Operating principals These units filter out solid contaminants and remove oil and water liquids and aerosols, by coalescing. Contaminated air flows to the inside of the filter cartridge. The cartridge contains a labyrinth of micro fibres which will trap solid particles down to sub micron size. Fine liquid mist and aerosols on their journey through the depth of the element, will strike one or other of the fibres and will be retained on them by inter-molecular forces. - Page 11 Optional extra Tamper-proof Optional extra Stainless steel screen Chemically resistant foam sock Boroscilicate microfibre Support medium Fig. 6 Operation IM-P054-08 CH Issue 5...
-
Page 12: Spare Parts And Maintenance
Element and 'O' ring set 2, 3, 4 5, 6, 7 Bowl guard assembly (MPC2 only) Note: In the interests of safety Spirax Sarco recommend that a bowl guard (an optional extra) Optional extra should be fitted to polycarbonate bowls. Tamper-proof...
