Summary of Contents for Vega PLICSMOBILE T81
- Page 1 Operating Instructions External radio unit for HART sensors PLICSMOBILE T81/B81/S81 External GSM/GPRS/UMTS radio unit Optionally with battery/accumulator/solar panel Document ID: 55234...
-
Page 2: Table Of Contents
Mobile network and SIM card ..................27 Internet connection and measured value transmission ........... 29 8 Maintenance and fault rectification Maintenance ........................32 Rectify faults ........................32 How to proceed if a repair is necessary ................33 PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... - Page 3 10.3 Industrial property rights ....................41 10.4 Hash function acc. to mbed TLS ..................41 10.5 Trademark ........................41 Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product descrip- tion". Editing status: 2017-01-31 PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 4: About This Document
This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 5: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use The PLICSMOBILE T81 is an external mobile network unit for trans- mission of measured values and for remote parameter adjustment of plics sensors. -
Page 6: Eu Conformity
• Reorient or relocate the receiving antenna PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 7: Radio License For Canada
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 8: Product Description

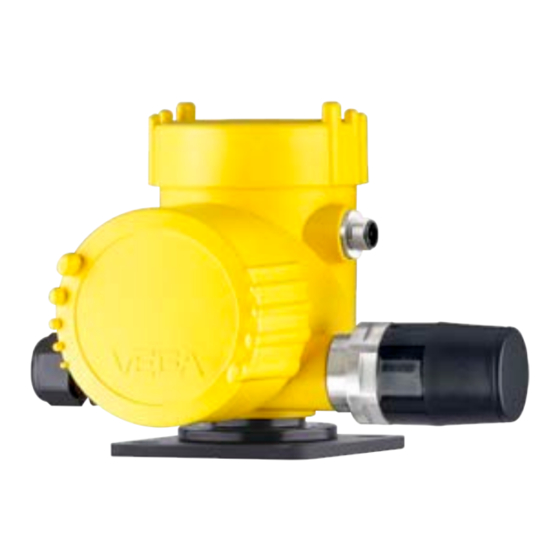

PLICSMOBILE T81 • Sensor connection cable (optional) • Documentation – This operating instructions manual – If necessary, further certificates The PLICSMOBILE T81 consists of the components: Constituent parts Fig. 1: PLICSMOBILE T81 Electronics compartment Plug connector for connection of the sensor Antenna Mounting plate... -
Page 9: Principle Of Operation
Enter the serial number manually in the app Principle of operation Application area The PLICSMOBILE T81 is a mobile network unit for transmission of measured values and for remote parameter adjustment of plics ® sensors. Due to the large operating voltage range and the integrated power saving functions, a mains-independent power supply via bat- tery or accumulator/solar cells is possible. - Page 10 Not exposed to corrosive media • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 11: Mounting
This can be simply tested by means of a mobile phone. Keep in mind that the SIM cards in the PLICSMOBILE T81 and in the mobile phone are from the same mobile phone provider or work in the same mobile phone network. - Page 12 (0.47") 62 mm (2.44") 85 mm (3.35") Fig. 2: PLICSMOBILE T81 for wall mounting, bottom view of mounting plate. The PLICSMOBILE T81 for top hat rail mounting is supplied with an Carrier rail mounting already assembled adapter for fastening on a 35 x 7.5 carrier rail.
- Page 13 4 Mounting Fig. 4: PLICSMOBILE T81 for tube mounting 4 screws M5 x 12 Measuring instrument holder Tube PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 14: Connecting To Power Supply
(address range 1-15). Address 0 (mode 4 … 20 mA) may not be used. When assigning an address, only one sensor should be connected to PLICSMOBILE T81. If con- nection is already completed, the wiring must be briefly undone for addressing. Depending on the installation location of the sensors, it can be advantageous to carry out this addressing before installing and connecting the sensors. -
Page 15: Connection Steps Sensor Connection Cable
Connection steps sensor connection cable The sensor connection cable is used for transmission of the meas- ured value from the sensor to the PLICSMOBILE T81. In addition, it can also transmit the voltage supply for the connected sensor. The sensor connection cable is available in Ex version (blue) as well as in non-Ex version (black). - Page 16 9. Connect the screen to the internal ground terminal, connect the external ground terminal to potential equalisation 10. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 11. Screw the housing lid back on The electrical connection is finished. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 17: Wiring Plan
Blue cable (-) with HART resistance, as an alternative white cable (-) without HART resistance Voltage supply, sensor Unused cores to be insulated Note: The unused cores of the sensor connection cable must be insulated. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... - Page 18 Brown cable (+) for sensor power supply Blue cable (-) for sensor power supply White cable for communication PLICSMOBILE T81 - B81 Brown cable (+) for accumulator charging via solar panel Blue cable (-) for accumulator charging via solar panel Power supply from the solar panel PLICSMOBILE T81/B81/S81 •...
-
Page 19: Battery Operation And Power Saving Mode
External battery PLICSMOBILE B81 The PLICSMOBILE B81 was especially developed for the power supply of PLICSMOBILE T81. It can be optionally equipped with rechargeable accumulators or non-rechargeable batteries of series "D" (Mono). Note: There is a safety instruction leaflet attached to each PLICSMOBILE B81 which must be read before setup and observed. -
Page 20: Solar Panel Plicsmobile S81
6. If all components are connected completely, you can set the switch on the upper side of the battery cover to "ON" Solar panel PLICSMOBILE S81 Via the solar panel PLICSMOBILE S81 you can power the PLICSMOBILE T81, the accumulator pack will also be charged. Two solar panels with different size/capacity are available: with a sunny environment and max. one measured value transmission per day, the small 5 W module is sufficient; with intermittent shadowing and/or more than one measured value transmission per day, the larger 20 W module should be used. - Page 21 Adjusting screw, inclination angle Connection The solar cable combines the power pack with the solar panel. It is available in the lengths 5/10/25 m. Connect the cable as shown in the wiring plan. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 22: Battery Sizing
This is very important for the calculation of the required capacitance. In the listed examples, this self-discharge is not taken into accunt. The available capacitance depends also considerably from the tempera- ture. The specifications refer to a temperature of 20 °C (68 °F). PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 23: Power Options
GSM network is car- ried out and the measured value is transmitted. The instrument then returns to power saving mode. The time for this process depends on the network quality and is generally approx. 70 seconds. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... - Page 24 Bluetooth With activated Bluetooth function, additional energy is needed; this reduces the operating time with battery/accumulator operation con- siderably. For that reason, switch off the Bluetooth function if it is not being used (via the switch on the electronics module). PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 25: Setup
Bluetooth modules, possibly already built into the PC or note- book, or other USB adapters cannot be used. As an alternative, the VEGA app for smartphones or tablets (iOS or Android) can be used. In such case you can use the Bluetooth module already integrated in the smartphone/tablet. -
Page 26: Parameter Adjustment With Pc And Pactware
Make sure that the Bluetooth switch on the electronics module is set to "On" and the Bluetooth USB adapter is inserted. Start the project assistant in PACTware; the Bluetooth USB adapter, the PLICSMOBILE T81 and the connected sensors should then be found and displayed in the project window. Access protection The protection against unauthorized access to the PLICSMOBILE T81 is set up on two steps. The first step is the Bluetooth access... -
Page 27: Mobile Network And Sim Card
To avoid roaming costs, the card should be bought in the country in which the PLICSMOBILE T81 is installed and operated. If you are using a VEGA Ident Card, you don't have to worry about this because no roaming costs are charged. - Page 28 Insert SIM card The contact surface must point upward. Note: The PLICSMOBILE T81 must be disconnected from voltage when inserting the SIM card. Keep ESD protection in mind when handling the SIM card. Electrostatic discharges can damage the SIM card or the PLICSMOBILE.
-
Page 29: Internet Connection And Measured Value Transmission
SIM card" is available in the DTM. Enter here the correct PIN for the card. The assistant also offers the option of changing the PIN. Information: When using the VEGA Ident Card, entering or deactivating a PIN is not required. Then check if the card is logged into the network and if sufficient net- work coverage (signal strength) exists. For a reliable measured value transmission, a signal strength of at least 30 % should be displayed. - Page 30 (POP3/SMTP) as well as the user name/password are required for authentication. These data are available from your e-mail provider. For secure transmission, an encrypted connection via TLS is preset. Please note that for encrypted connections, other server PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
- Page 31 The measurement data can be sent either directly in the e-mail or in an attached file. The formats TXT, CSV, HTML or XML are available. Note: If you also want to send e-mails while using the Inventory System and a VEGA Ident Card, the following information is required in the con- nection settings: • User name: "m2m"...
-
Page 32: Maintenance And Fault Rectification
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred. -
Page 33: How To Proceed If A Repair Is Necessary
Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. Note: If a battery-operated instrument is returned for repair, the battery/ power pack must be removed. Please send only the instrument, not the battery/power pack. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 34: Dismount
Due to the very strict transport regulations for lithium-based batteries/accumulators, this is normally not a good idea because shipment is very expensive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... -
Page 35: Supplement
When the instrument is powered by an external voltage supply, make sure the voltage supply unit has a suf- ficient current carrying capacity. With a voltage supply <9.6 V, current peaks of up to 2 A must be expected. The listed power specifications include the voltage supply of a HART sensor with 20 mA. The listed energy requirement includes the voltage supply of a HART sensor (VEGAPULS 61 with 4 mA (multi- drop mode) and 12 V operating voltage. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... - Page 36 Ʋ max. shortcircuit current 1.27 A Ʋ Dimensions 662 x 299 x 35 mm (26.1 x 11.8 x 1.3 in) Due to a protective circuit, charging outside this temperature range is not possible PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
- Page 37 -25 … +60 °C (-13 … +140 °F) Storage and transport temperature -25 … +80 °C (-13 … +176 °F) Electrical protective measures Protection rating IP 66 A suitable cable is required for maintaining the protection rating. PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
- Page 38 5131 A-GE865 Radio approvals Bluetooth module Ʋ FCC ID P144BL600 Ʋ IC (Industry Canada) 19318-BL600 Approvals Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under "www.vega.com" via "VEGA Tools" and "Instrument search" as well as via "Downloads" and "Approvals". PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 39: Dimensions
85 mm (3.35") ~ 113 mm (4.45") ~ 186 mm (7.32") ø 86 mm (3.39") ø 60 mm (2.36") 85 mm (3.35") Fig. 14: Dimensions PLICSMOBILE T81 with plastic housing and StSt/Aluminium housing PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit... - Page 40 10 Supplement ø 110 mm (4.33") 57 mm 57 mm (2.24") (2.24") 83,5 mm 62 mm (3.29") (2.44") 145 mm (5.71") 127 mm (5.00") Fig. 15: Dimensions PLICSMOBILE B81 with Aluminium housing PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
-
Page 41: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 42 Remote parameter adjustment 9, 23, 27 – Rectification 32 FDT 26 Repair 33 Roaming 27, 28 GPRS 9, 27, 28, 29 GSM 9 Self-discharge 22 Sensor connection cable 15 Serial number 8 Service hotline 32 HART 24 PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
- Page 43 SMS 9 Software update 26 Solar module 20 Standby 22 Status indications 29 Tank calculation 26 Tube holder 20 Type label 8 VEGA Inventory System 9 Visualization 9 VMI 9 Voltage supply 9, 15 PLICSMOBILE T81/B81/S81 • External GSM/GPRS/UMTS radio unit...
- Page 44 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2017 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
