User's manual

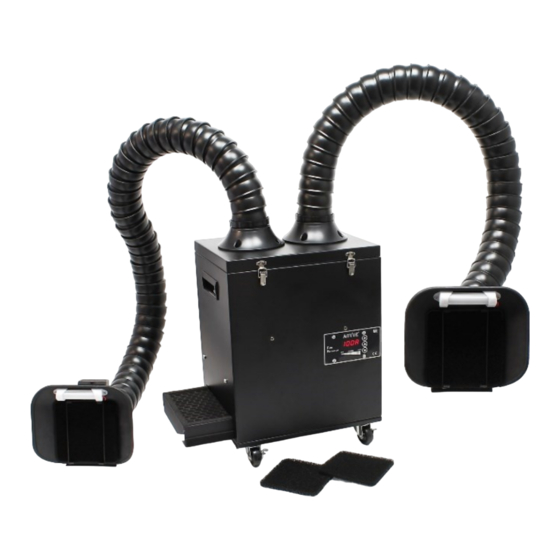

AOYUE Solder Smoke Absorber FEK-01 with LED
lights
91934
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec AOYUE FEK-01
Summary of Contents for WilTec AOYUE FEK-01

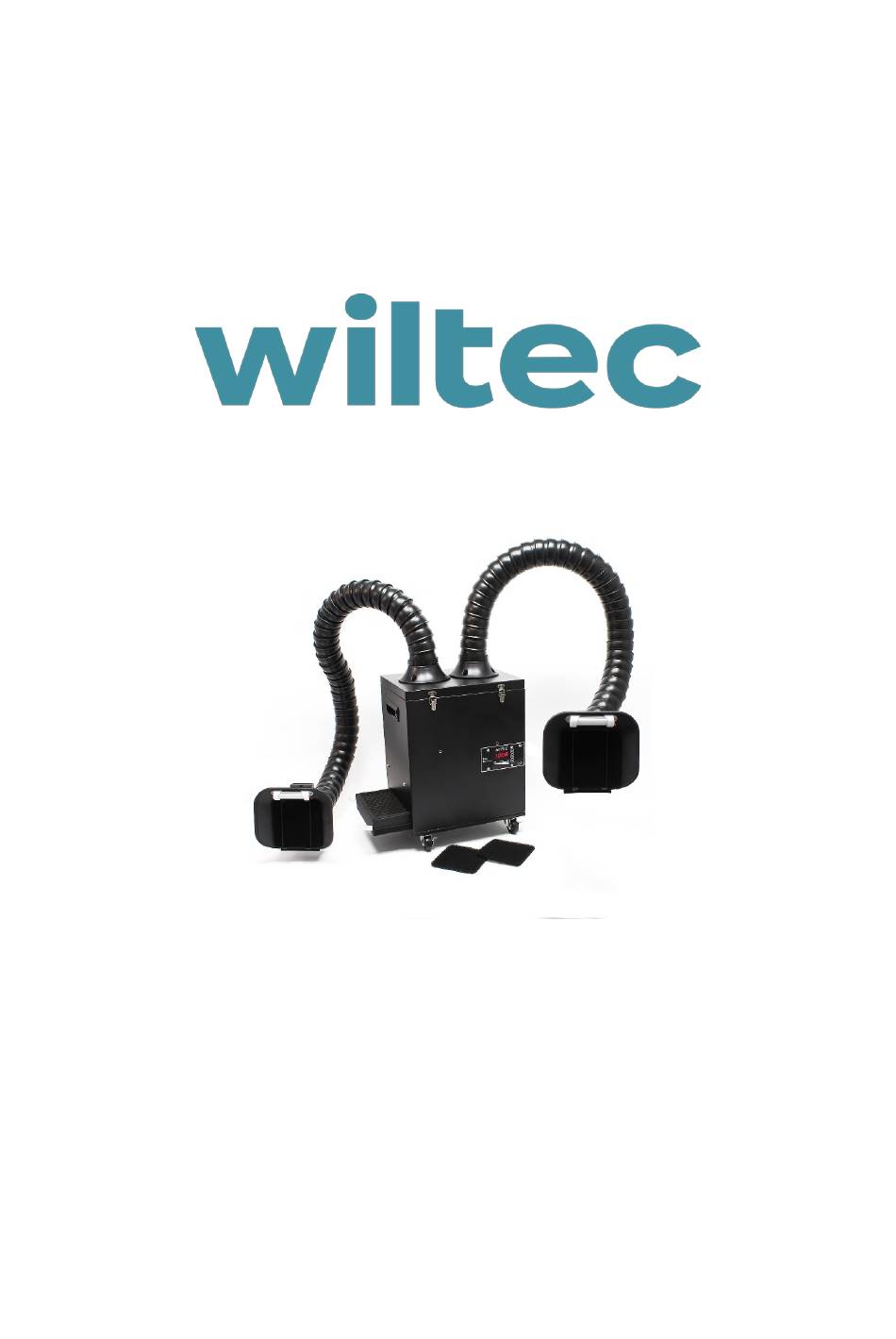

- Page 1 User’s manual AOYUE Solder Smoke Absorber FEK-01 with LED lights 91934 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 • If the device is not used for a long period of time, the mains plug must be unplugged. If possible, switch off the device when you take a break. © by WilTec Wildanger Technik GmbH Item 91934 Page 3 http://www.WilTec.de...
- Page 4 2 × holding arm – 1 × box B (main unit) – 2 × box C (filter hood) – 1 × box D (separate parts) © by WilTec Wildanger Technik GmbH Item 91934 Page 4 http://www.WilTec.de http://www.aoyue.eu 04 2023-1 http://www.teichtip.de...
- Page 5 Intake voltage (V) 110 / 220 Power consumption (W) 80–200 320 × 450 × 260 Size (㎜) Weight (㎏) Filter contained HEPA filter, activated carbon filter © by WilTec Wildanger Technik GmbH Item 91934 Page 5 http://www.WilTec.de http://www.aoyue.eu 04 2023-1 http://www.teichtip.de...
- Page 6 № Name Filter hoods LED display Main switch Active carbon filter Electrical connection Exhaust air outlet Control switches Holding arms Explanation of the control panel © by WilTec Wildanger Technik GmbH Item 91934 Page 6 http://www.WilTec.de http://www.aoyue.eu 04 2023-1 http://www.teichtip.de...
- Page 7 1. wheels: Attach wheels. 2. filters: Pull out FEK-CF carbon filter and remove protective film before use. Unlock top cover, remove the FEK-MF HEPA filter, and remove protective film. © by WilTec Wildanger Technik GmbH Item 91934 Page 7 http://www.WilTec.de http://www.aoyue.eu...
- Page 8 Then tighten the screw until it is flush. 4. holding arms: a) Depending on whether you need one or both holding arms for suction, attach one or both. © by WilTec Wildanger Technik GmbH Item 91934 Page 8 http://www.WilTec.de...
- Page 9 LED switch (a). 6. Ready! To remove the HEPA filter, the housing must be unlocked (a). Use the two white tabs to remove the activated carbon filter. © by WilTec Wildanger Technik GmbH Item 91934 Page 9 http://www.WilTec.de...
- Page 10 The device can run at 50 Hz or at 60 Hz. The frequency is set at the factory, but it can also be changed manually. To do this, proceed as follows: © by WilTec Wildanger Technik GmbH Item 91934 Page 10 http://www.WilTec.de...
- Page 11 To avoid these malfunctions, the appropriate frequency must be set. Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 91934 Page 11 http://www.WilTec.de http://www.aoyue.eu...
