Audix CX112B Quick Start Manual

CX112B
OVERVIEW

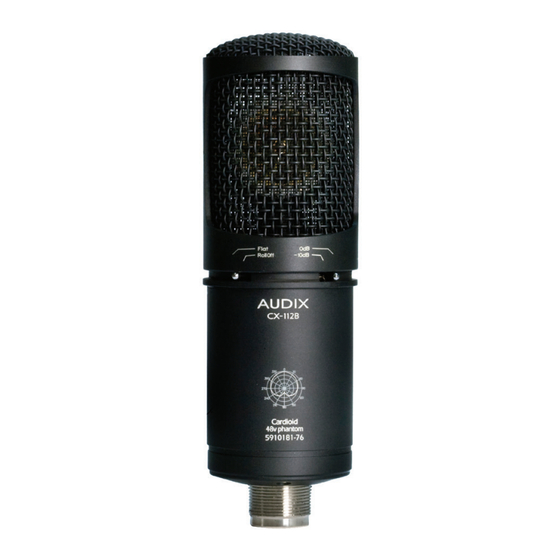

The CX112B is a large diaphragm condenser microphone with a contemporary design
and excellent performance characteristics. It is an exceptional tool for professional
audio production, project studios and live stage performances. Delivering a smooth,
uniform frequency response from 20 Hz - 20 kHz, the CX112B offers a rich, full bodied
sound delivered by its 35 mm capsule.
The CX112B is equipped with a bass roll-off filter to help eliminate rumble in the
lower frequencies and a -10 dB pad for use in higher SPL up to 145 dB. Applications
would include a wide variety of acoustic instruments, vocals, string sections, guitar,
ensembles, guitar cabinets and ambient room miking.
Designed with low noise preamp circuitry, the CX112B operates on phantom power.
For optimum results, the CX112B should be used with a high quality mic preamplifier
and microphone cable.
MODEL VARIATIONS
CX112BMP - Matched stereo pair
SUPPLIED ACCESSORIES
MC112 - Mic stand adapter. Includes thumb screw and threaded adapter that se-
curely holds mic in place.
CASEWOOD - Foam-lined wood case
OPTIONAL ACCESSORIES
WSCX - Optional external foam windscreen for reducing wind, sibilance, and
pop noise.
APS2 - Two-channel 48 V phantom power supply. 110 V switchable to 240 V.
Detachable power cord.
PD133 - Optional two-layer mesh pop diffuser for controlling acoustic plosives.
Cabgrabber - Tension fit microphone holder
SMTCX112 - Heavy-duty aluminum caged shock mount system with nylon cable.
MC112 CASEWOOD
Studio Condenser Microphone
WSCX
FEATURES
. High quality sound, affordable excellence
. Bass roll-off filter and -10db pad
. Low noise preamp circuitry
. Designed, assembled & tested in the USA
. 3 year warranty
APPLICATIONS
. Studio, lead and backing vocals
. Voice over
. Ambient room mic
. Choir
. Orchestra
. Drum overheads, guitar cabinets
. Acoustic instruments
APS2 PD133
CX112B
CABGRABBER SMTCX112
& BoomCG
