DA16200 ThreadX Evaluation Kit
3. MODE? [1/2/Quit] (Default Station): type 2
See
Figure 12.
4. SSID? (Default 16200_9FFFFF): TEST AP. See
a. Choose the SSID you want to use.
5. CHANNEL? [1~11, Auto:0/QUIT]: press [ENTER]
6. AUTHENTICATION? [1/3/4/5/QUIT]: type 4
○
WPA2-PSK is recommended
7. ENCRYPTION? [1/2/3/Quit]: type 2
8. PSK-KEY (ASCII characters 8~63 or hexadecimal characters 64)? [Quit]
: ******** Enter the password you want to use.
9. Do you want to set advanced Wi-Fi configuration? [No/Yes/Quit] (Default No): type N
See Figure 14.
10. WIFI CONFIGURATION CONFIRM? [Yes/No/Quit]: type Y
11. IP ADDRESS? [Quit] (Default 10.0.0.1): press [ENTER]
12. SUBNET? [Quit] (Default 255.255.255.0): press [ENTER]
13. GATEWAY? [Quit] (Default 10.0.0.1): press [ENTER]
14. DNS? [Quit] (Default 8.8.8.8): press [ENTER]
15. IP CONFIGURATION CONFIRM? [Yes/No/Quit]: type Y
16. DHCP SERVER CONFIGURATION? [Yes/No/Quit]: type Y
17. DHCP SERVER LEASE IP Count (MAX 10)? [Quit] (Default 10): press [ENTER]
18. DHCP SERVER LEASE TIME (60 ~ 86400 SEC)? [Quit] (Default 1800): press [ENTER]
19. DHCP SERVER CONFIGURATION CONFIRM? [Yes/No/Quit]: type Y
User Manual
CFR0012

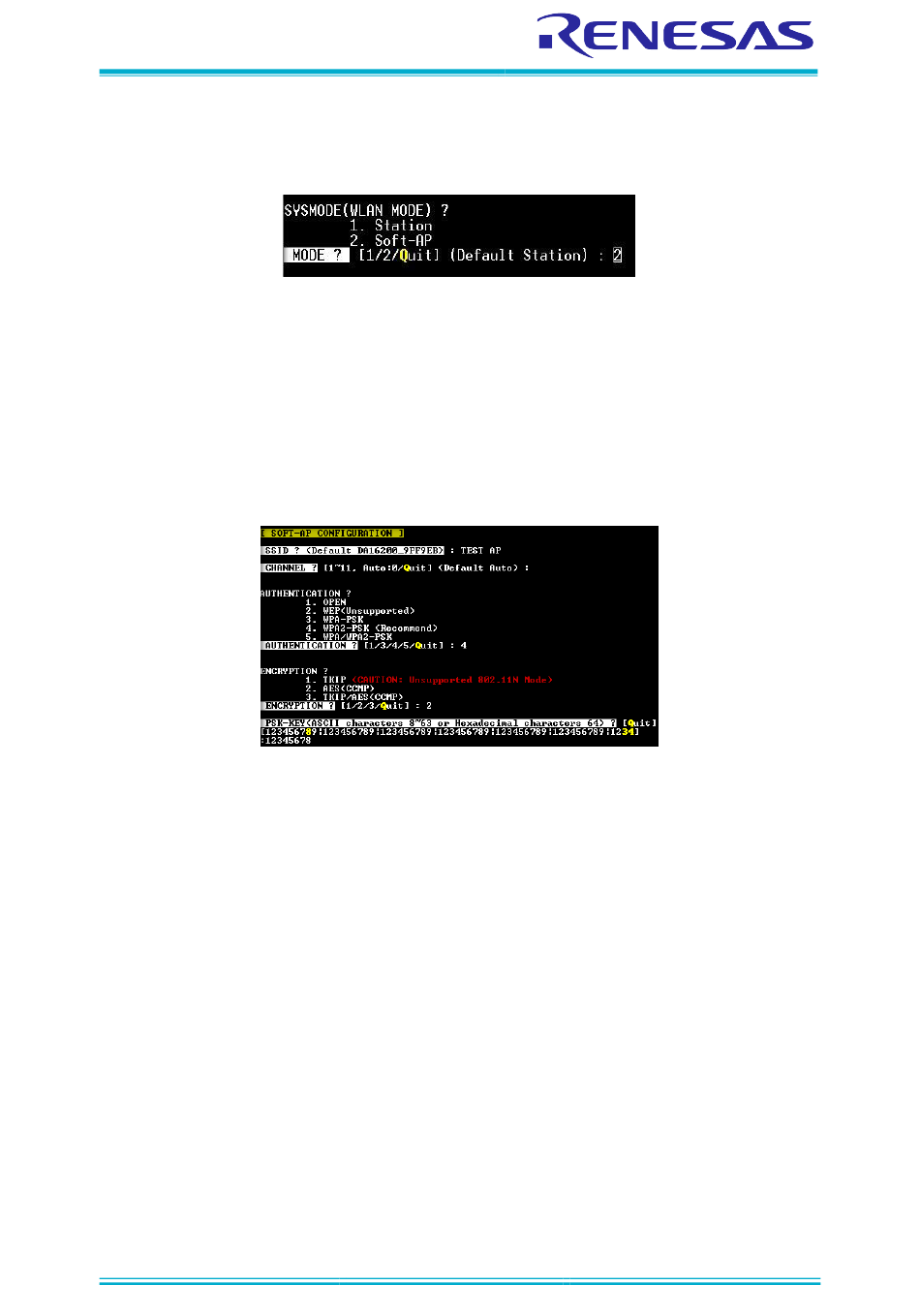

Figure 12: Soft-AP Mode Selection

Figure

Figure 13: Setup AP
