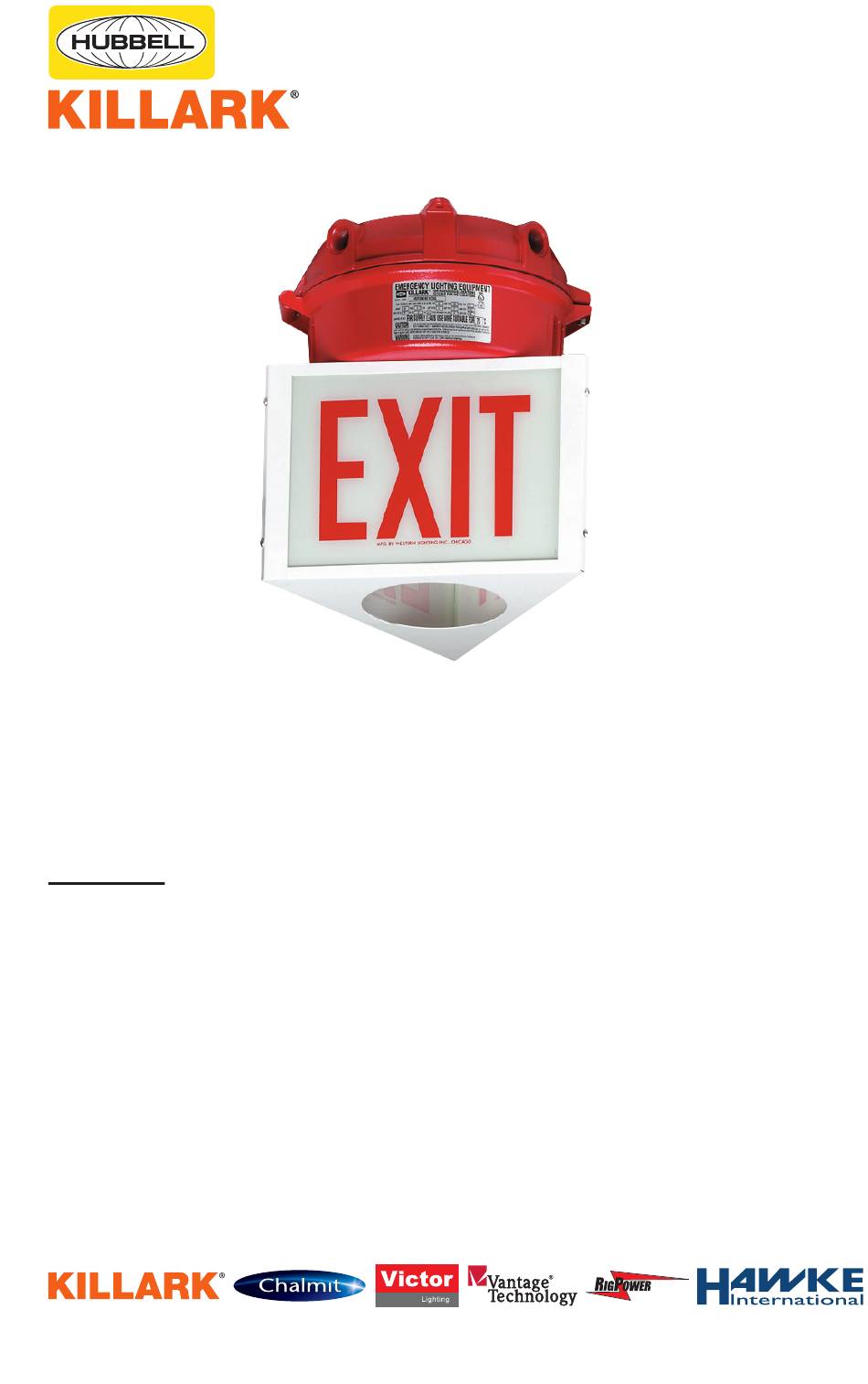

Installation, OPERATION &
Maintenance DATA SHEET
(VEB/DEB/VEQ SERIES FLUORESCENT
EMERGENCY LIGHTING FIXTURES)

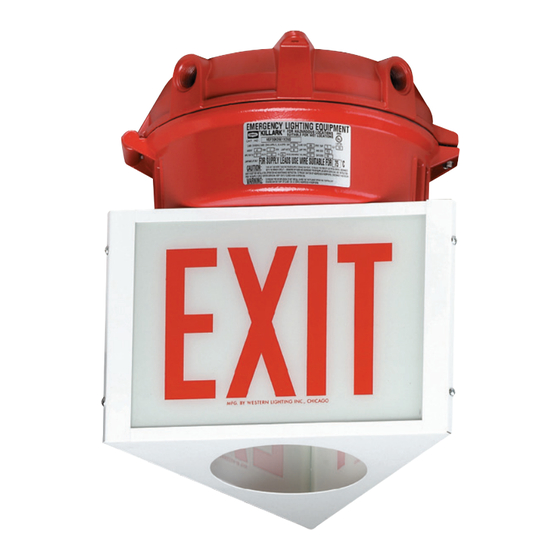

VEB/DEB/VEQ SERIES FLUORESCENT
EMERGENCY LIGHTING FIXTURES
CAUTION:
Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury,
death and property damage. Do not attempt installation until you are familiar with the following procedures. All
installation must comply with the applicable Electrical Code.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause
serious injury and or death.
Technical information, advice and recommendations contained in these documents is based upon information
that Killark believes to be reliable. All the information and advice contained in these documents is intended for
use only by persons having been trained and possessing the requisite skill and know-how and to be used by
such persons only at their own discretion and risk. The nature of these instructions is informative only and does
not cover all of the details, variations or combinations in which this equipment may be used, its storage, delivery,
installation, check out, safe operation and maintenance. Since conditions of use of the product are outside of the
care, custody and control of Killark, the purchaser should determine the suitability of the product for his intended
use, and assumes all risk and liability whatsoever in connection therewith.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N 00912293 FORM NO. K1207 Released 05/01
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Hubbell KILLARK VEB Series
Summary of Contents for Hubbell KILLARK VEB Series
- Page 1 INSTALLATION, OPERATION & MAINTENANCE DATA SHEET (VEB/DEB/VEQ SERIES FLUORESCENT EMERGENCY LIGHTING FIXTURES) VEB/DEB/VEQ SERIES FLUORESCENT EMERGENCY LIGHTING FIXTURES CAUTION: Before installing, make sure you are compliant with area classifications, failure to do so may result in bodily injury, death and property damage. Do not attempt installation until you are familiar with the following procedures. All installation must comply with the applicable Electrical Code.
- Page 2 1. IMPORTANT SAFEGUARDS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS NOTE: Read this sheet carefully before beginning installation. • Do not use this equipment for other than the intend use as specified on equipment nameplate. Turn off the supplying circuit before beginning installation, or performing any maintenance including revamping.
- Page 3 1. Install splice box per Instruction Sheet K0451 supplied with the product. 2. Refer to Fig.1 for general guidance. Hang the fixture on the splice box hinge. 3. Attach the green (ground) lead to the splice box ground screw (provided). 4.
- Page 4 2. OPERATION: When AC power is applied, the charging indicator light is illuminated, indicating that the batter is being charged. When power fails, the emergency ballast automatically provides at least 90 minutes of emergency lighting. 3. MAINTENANCE: As routine maintenance, this emergency fixture should be checked periodically to ensure proper operation, The following schedule is recommended.
