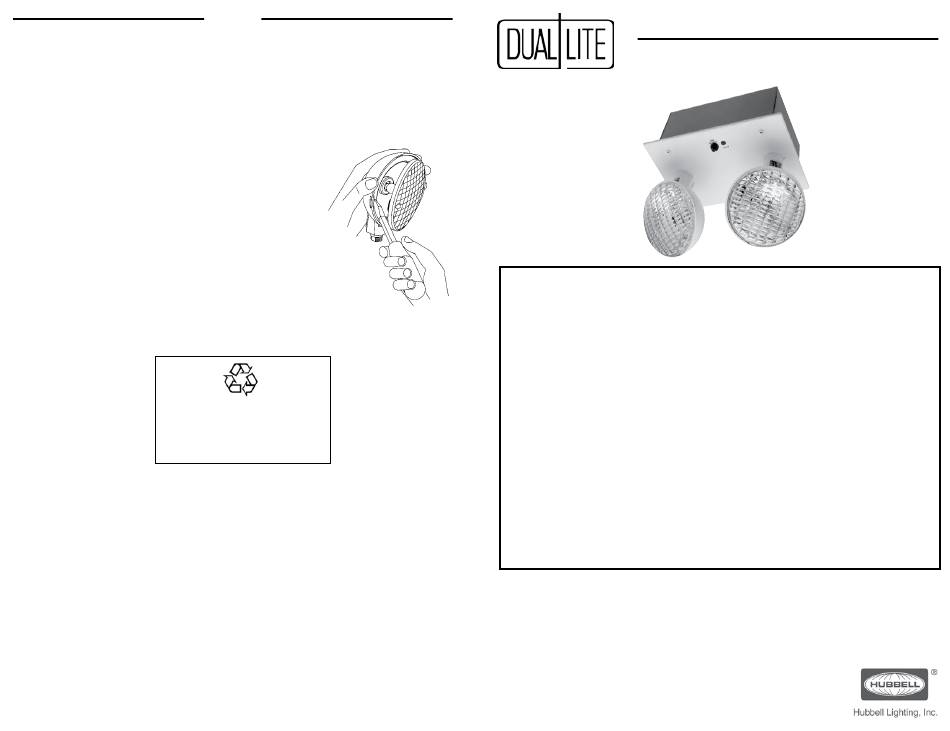

Hubbell Dual Lite EZ-2R Series Installation, Operation And Service Instructions

Taking A Unit Out Of Service

If a unit is to be deliberately taken out of service for an extended period, the positive (+) battery lead should be
disconnected from the charger/transfer module and insulated so that the battery will go into storage in a fully
charged condition.

Replacing A Battery

1. De-energize the AC power.
2. Disconnect battery leads from charger module.
3. Release battery retaining strap (Fig. 1). Remove battery.
4. Replace with a new battery (see unit model label for correct part number).
5. Reassemble the unit.

Replacing An Emergency Lamp

1. Remove diffuser lens from lamp housing by prying lens adjacent to tab slot
2. Remove and replace lamp (refer to product for specific lamp type)..
RECYCLING INFORMATION
All steel, aluminum and thermoplastic parts
are recyclable.
NOTICE: Emergency units contain
rechargeable batteries which must be
recycled or disposed of properly.
1300897
1300906
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
©
SERVICE
1300897
93026357 A 11/09

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should
always be followed including the following.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. Do not use outdoors.
2. Do not let power supply cords touch hot surfaces.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subject
to tampering by unauthorized personnel.
5. The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
6. Do not use this equipment for other than its intended purpose.
7. Servicing of this equipment should be performed by qualified service personnel.
8. Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency lighting units
once a month for a minimum of 30 seconds, and once a year for a minimum of 90 minutes.
INSTALLER:
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
WARNING – This product contains chemicals known to the State of California to cause cancer, birth
defects and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning,
or otherwise touching this product.
EZ-2R Series

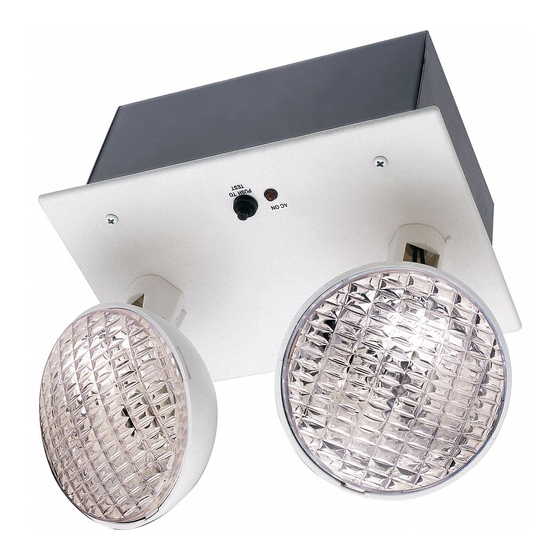

Twin-Head Recessed Emergency Lighting Unit
Standard and Spectron® Equipped Models
Installation, Operation and Service Instructions
