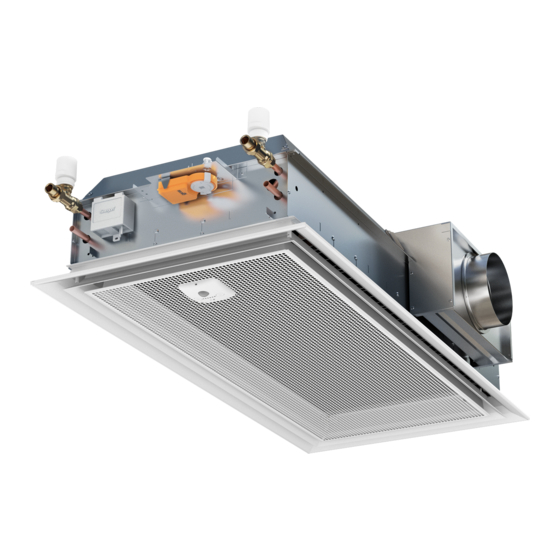

PARASOL Z VAV c
Installation - Commissioning - Maintenance
Content
Symbol explanation ..................................................... 1
Dimensions and weights .................................... 2
Dimensions ................................................................. 2
Weight ....................................................................... 2
Installation .......................................................... 3
Suspension bracket ..................................................... 3
Accessory - Quick bracket ........................................... 4
Accessory - Mounting in concealed T-bars ................... 5
Accessory - Fold-out coil ............................................. 6
Water connection ....................................................... 7
Wiring diagram ........................................................... 8
Air connection ............................................................ 9
Commissioning .................................................. 10
K-factor setting ......................................................... 10
ADC ..........................................................................11
Maintenance ...................................................... 12
Symbol explanation
Symbols on the machine
This product complies with applicable EU directives
Symbols in this user manual
Warning/Caution!
11/05/2021
Art. 942428067-NA
Advertisement
Table of Contents
Related Manuals for Swegon PARASOL Z VAV c
Summary of Contents for Swegon PARASOL Z VAV c
-
Page 1: Table Of Contents
PARASOL Z VAV c Installation – Commissioning – Maintenance 11/05/2021 Art. 942428067-NA Content Symbol explanation Symbols on the machine Symbol explanation ............. 1 Dimensions and weights ........2 This product complies with applicable EU directives Dimensions ..............2 Weight ............... 2 Installation ............ -
Page 2: Dimensions And Weights
* Dimensions refer to products with air connection 5" dia./6" dia. Parasol Zenith VAV 1800 Length Type (in) Dry weight Water volume (gal) Ø (lb) cooling heating 71.18 79.1 71.18 79.1 Weights above are excl.: Control plate with terminal block (0.26 lbs). Swegon reserves the right to alter specifications. 11/05/2021... -
Page 3: Installation
- c (in) X (A1) X (A2) 15.7 +0.4 10.3+0.4 1200 39.3 +0.4 33.9 +0.4 1800 62.9 +0.4 57.6 +0.4 SYST MS (1/4") 0 . 7 9 ” 0 .7 9 ” 11/05/2021 Swegon reserves the right to alter specifications... -
Page 4: Accessory - Quick Bracket
- c c - c measurement Air connection side Short side Long side Unit model c - c (in) c - c (in) < 12.6 1200 < 40.2 35.4-40.1 < 60.2 35.4-60.2 1800 Swegon reserves the right to alter specifications. 11/05/2021... -
Page 5: Accessory - Mounting In Concealed T-Bars
PARASOL Zenith VAVc Accessory - Mounting in concealed T-bars To centre the product when mounting in concealed T-bars. 90° Recommended number of plates per product. Unit model 1200 1800 11/05/2021 Swegon reserves the right to alter specifications... -
Page 6: Accessory - Fold-Out Coil
Accessory - Fold-out coil PARASOL Zenith with fold-out coil (accessory) for easy access and cleaning when stringent demands are made on hygiene. The accessory, fold-out coil, requires flexible connecting hoses on the water side. Swegon reserves the right to alter specifications. 11/05/2021... -
Page 7: Water Connection
Plain pipe end 15 x 1.0 mm Cooling/ Plain pipe end 15 x 1.0 mm/ Plain pipe 15 x 1.0 mm/ 1800 Return Supply Heating Plain pipe end 12 x 1.0 mm Plain pipe 12 x 1.0 mm 11/05/2021 Swegon reserves the right to alter specifications... -
Page 8: Wiring Diagram
PARASOL Zenith VAVc Wiring diagram Wiring diagram for accessories 24 V AC/DC CO2 24 V AC/DC ~24 V AC 942193009 Inputs Outputs Motor Swegon reserves the right to alter specifications. 11/05/2021... -
Page 9: Air Connection
1. Unscrew the screws from the sleeve and cover 2. Change the location of the sleeve and cover 3 - 4. Screw the sleeve and cover in position with screws on the new side 11/05/2021 Swegon reserves the right to alter specifications... -
Page 10: Commissioning
50 100 150 200 250 300 350 400 1200 d160 1200 d125 d125 d160 125 150 Swegon reserves the right to alter specifications. 11/05/2021 degrees 818781-02 The right to design changes is reserved. Current data according to product selection program. -
Page 11: Adc
PARASOL Zenith VAVc Fan-shape X-shape - 4 0 ° 0° + 4 0 ° 0 ° + 4 0 ° 0° Examples of ADC settings -40° 40° 11/05/2021 Swegon reserves the right to alter specifications... -
Page 12: Maintenance
PARASOL Zenith VAVc Maintenance Swegon reserves the right to alter specifications. 11/05/2021...
