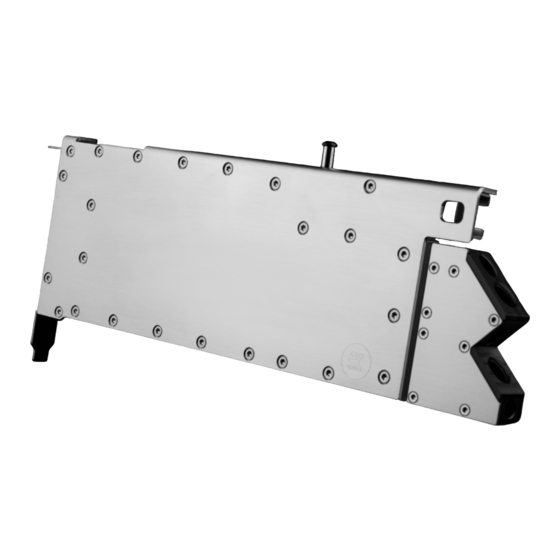

- Page 1 EK-Pro RTX A5500 Rack - Ni+Inox GPU WATER BLOCK USER GUIDE...
- Page 2 If this product is made from aluminum and can be only used Before you start using this product, please follow these basic guidelines: with other aluminum liquid cooling components, such as Al fittings, water blocks and radiators. Mixing aluminum with Please carefully read the manual before beginning with the copper and brass products can cause galvanic corrosion of installation process!
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS WATER BLOCK SPECIFICATIONS AND MAIN PARTS PREPARING THE GRAPHICS CARD CLEANING THE PCB CUTTING AND PLACING THERMAL PADS CUTTING AND PLACING THERMAL PADS UNPACKING AND REASSEMBLYING INSTALLING THE WATER BLOCK MOUNTING PCB ON THE WATER BLOCK ATTACHING THE BACKPLATE TO THE GRAPHICS CARD MOUNTING BACKPLATE ON PCB CHECKING FOR CONTACT... -
Page 4: Box Contents
BOX CONTENTS 068-Mounting RTX A5500 Rack Note: There are additional screws in the mounting kit. M2.5x7 AX1 Screw (5x) M2.5x10 AX1 Screw (4x) Thermal Grease EK-Pro RTX A5500 Rack M2.5x4 AX1 Screw (5x) 3830046998477 (1x) Polyamid Washer M2.5 x 0.7mm Polyamid Washer M2.5 x 0.5 mm selfglued (4x) (5x) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 19.7 mm 299.7 mm 23.5 mm 311.1 mm - 5 -... -
Page 6: Water Block Specifications And Main Parts
WATER BLOCK SPECIFICATIONS AND MAIN PARTS Technical Specification: - Dimensions (LxHxW): 311.1 x 141.2 x 23.5 mm Pos. Description Qty. 106504 RTX A5500 Coldplate - rack 104949 RTX A5000 Backplate - rack 104956 RTX A5000 Top - rack 102696 Standoff M3.5/M2.5 x 2.5 101436 Standoff M3/M2.5 x 12.0 3831109861042 EK-FC Pro Terminal Angled 45 deg... -
Page 7: Preparing The Graphics Card
PREPARING THE GRAPHICS CARD Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all fan connectors. Pay attention to the following steps when installing the EK-RTX A5500 Rack water block onto your graphics card. CLEANING THE PCB Wipe off the remains of the original thermal compound using a nonabrasive cloth or Q-tip, as shown in the sample image, until the... -
Page 8: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS STEP 1 Your GPU water block comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components, such as COILs, MOSFETs, and drivers. Thermal PAD F 1.0 mm (120 x 16 mm) You must remove the protective foil from both sides of the thermal pad before installation. -
Page 9: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this Step, you will need:... -
Page 10: Installing The Water Block
INSTALLING THE WATER BLOCK This procedure is the same for all full-cover water blocks. STEP 1 SCREW AX1 M2.5 x 4 (4x) MOUNTING PCB ON THE WATER BLOCK Firstly, stick three (3) Washer POLYAMID M2.5 0.7 mm selfglued, on the top of 3 the biggest standoffs. -
Page 11: Attaching The Backplate To The Graphics Card
STEP 2 MOUNTING BACKPLATE ON PCB Again, cut thermal pads to needed size. Thermal pads should be placed on the back of PCB, as illustrated below. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step. -
Page 12: Checking For Contact
Inspect all parts of the loop, and in case the coolant leaks, fix the issue again or contact our support service at and repeat the testing process. To prevent possible damage, please https://www.ekwb.com/customer-support/. ensure that all hardware is dry before the system is powered on. INSERTING THE GRAPHICS... -
Page 13: Support And Service
In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “WATER BLOCK SPECIFICATIONS AND MAIN PARTS” where you can find the EAN number of each part you might need.
