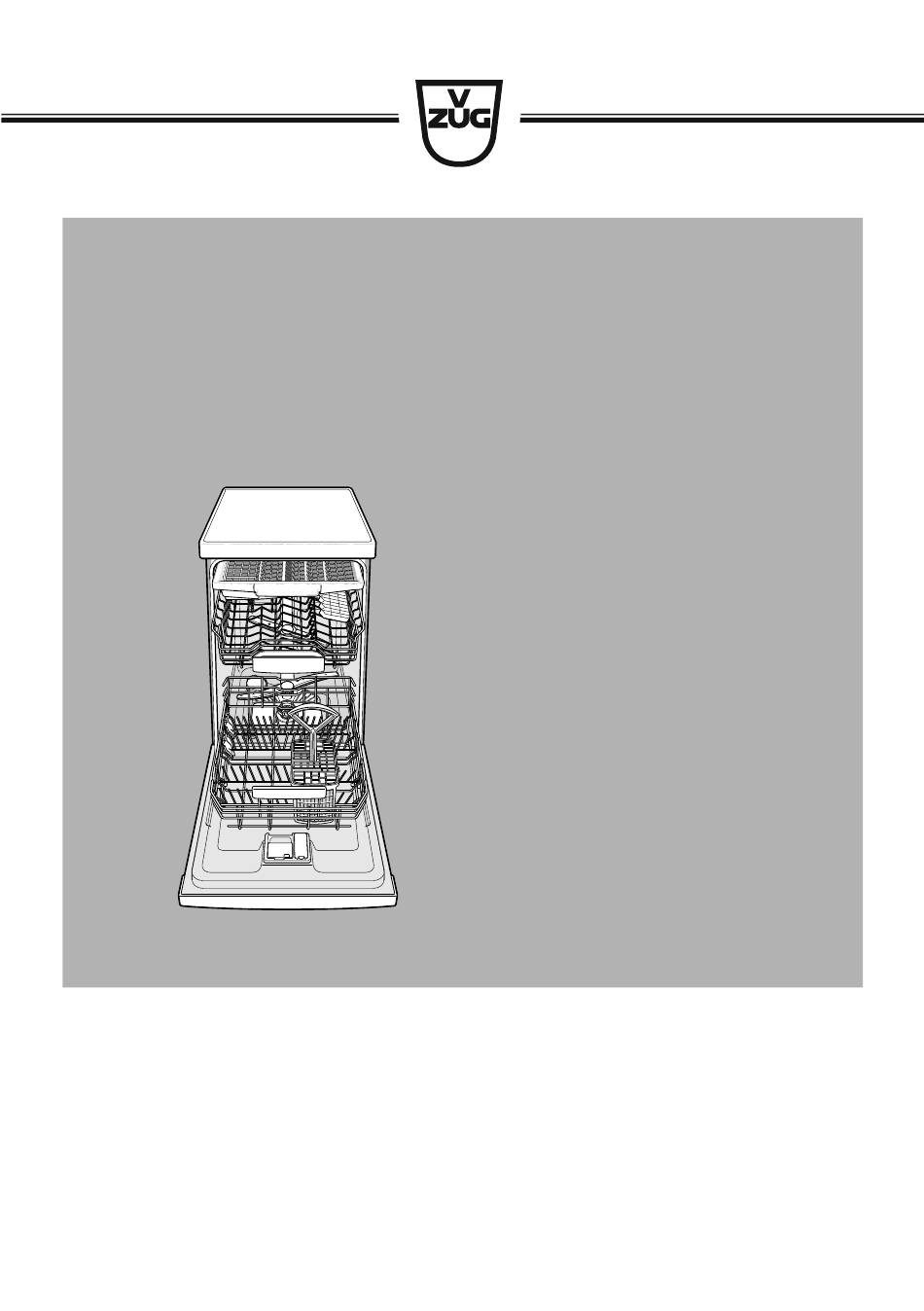

- Page 1 Information for Use Adorina V600 Dishwasher...
-
Page 2: Table Of Contents
Table of contents 1 Safety .......... 4 8.5 Cutlery drawer ...... 22 1.1 General information.... 4 8.6 Basket heights...... 22 1.2 Intended use....... 4 9 Before using for the first time ... 23 1.3 Restriction on user group... 4 9.1 Performing the initial config- 1.4 Safe installation ...... 4 uration ........ 23 1.5 Safe use ........ 6... - Page 3 14.7 Terminate programme.... 33 14.8 Switching off appliance .. 33 15 Basic settings...... 34 15.1 Overview of the basic set- tings........ 34 15.2 Changing basic settings.. 36 16 Cleaning and servicing .... 37 16.1 Cleaning the tub ..... 37 16.2 Cleaning products .... 37 16.3 Tips on appliance care... 37 16.4 Machine Care ..... 37...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶... - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always ▶... - Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then cut ▶ through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 AquaSensor ▶ the appliance, do not use sponges The AquaSensor is an optical meas- with a rough surface or abrasive uring device (light barrier) which cleaning agents. measures the turbidity of the rinsing To prevent corrosion, do not use ▶... -
Page 12: Installation And Connection
en Installation and connection installing it under a continuous work- 4 Installation and con- top that is securely connected to ad- jacent cabinets. nection Follow the safety instructions. To ensure proper operation, connect → Page 4 the appliance to the power and water Follow the instructions for electrical supply correctly. -
Page 13: Drinking Water Connection
Installation and connection en 4.4 Drinking water connec- tion Connect your appliance to a drinking water connection. Installing the drinking water connection Note If you are replacing the appliance, ¡ you must use a new water supply hose. Consult the installation instructions supplied for the steps required here. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 56. The data you need for Customer Service → Page 55. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 27 Bottom basket Bottom basket → Page 21 Filter system Filter system → Page 38 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 23 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 11 10 ON/OFF button and reset Switching on the appliance button → Page 31... - Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 36 Timer programming Setting timer programming → Page 32 Door handle Open the appliance door. Display The display shows information about the remaining running time or the ba- sic settings.
- Page 18 en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Time-optimised: Mixed tableware and cutlery Cleaning 65 °C ¡ ¡ 1 hr Programme Level of soiling: Intermediate rinse ¡ Common household food rem- Final rinse 69 °C ¡ ¡ nants lightly dried on ¡ Tableware: Cold rinsing: All types of dishes Pre-Rinse ¡... -
Page 20: Additional Functions
en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Etagere
Features en Adjusting top basket with side 8.2 Etagere levers Use the cutlery shelf and space un- To wash large items of tableware in derneath for small cups and glasses the baskets, adjust the shelf position or for large items of cutlery, e.g. of the top basket. -
Page 22: Folding Prongs
en Features Push the lever forwards and fold down the prongs . 8.4 Folding prongs To use the prongs again, fold them Use the folding prongs to position back up. tableware securely, e.g. plates. The prongs audibly click into posi- tion. 8.5 Cutlery drawer Arrange cutlery in the cutlery drawer. -
Page 23: Before Using For The First Time
first time en Level Top basket Bottom basket 2 max. ø 18.5 cm 27.5 cm 3 max. ø 21 cm 25 cm Start the Programme with the first time 9 Before using for the highest cleaning temperature without tableware. first time To remove any marks from water first time or other residues, we recommend 9.1 Performing the initial con-... -
Page 24: Setting The Water Softening System
en Water softening system Water hardness Hardness range mmol/l Setting value °E 16 - 20 Medium 2.2 - 2.9 21 - 26 Hard 3.0 - 3.7 27 - 38 Hard 3.8 - 5.4 39 - 62 Hard 5.5 - 8.9 Note: Set the water hardness determ- 10.3 Special salt ined on your appliance. -
Page 25: Switching Off The Water Softening System
Water softening system en Note: Only use special salt for The water hardness is 0 - 8 °E. ¡ dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 26: Rinse Aid System
en Rinse aid system Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 27: Switching The Rinse Aid System Off
Detergent en To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 11.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g. -
Page 28: Unsuitable Detergents
en Detergent With powder and liquid detergent the 12.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- Detergents marked as "organic"... - Page 29 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is The lid clicks into position. enough. Insert the tablets in a hori- The detergent dispenser will open zontal position.
-
Page 30: Tableware
en Tableware 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 31: Removing Tableware
operation en For better washing and drying res- ¡ ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 32: Setting A Programme
en operation If you do not perform any actions Tip: To deactivate timer program- on the appliance for 10 minutes, ming, press repeatedly until "h:00" the appliance will automatically appears in the display. switch off. 14.5 Starting the programme 14.2 Setting a programme Press ▶... -
Page 33: Terminate Programme
operation en 14.7 Terminate programme To end a programme early or to switch from a programme that has already started, you will need to can- cel it first. Open the appliance door. Press for approx. 4 seconds. Close the appliance door. The programme is cancelled and ends after approx. -
Page 34: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. - Page 35 Basic settings en Basic setting Display text Selection Description InfoLight I00 - I01 Switch InfoLight on or off. While the programme is run- ning, a spot of light is pro- jected onto the floor below the appliance door. This light will not be visible if the appli- ance is installed at eye level with the cabinet front fitted flush.
-
Page 36: Changing Basic Settings
en Basic settings Basic setting Display text Selection Description Automatic door o00 - o02 Activate or deactivate auto- opening matic opening of the appli- ance door during the drying phase. If the function has been ac- tivated, the running time may increase. -
Page 37: Cleaning And Servicing
Cleaning and servicing en 16.2 Cleaning products 16 Cleaning and servi- Only use suitable cleaning products cing to clean your appliance. → "Safe use", Page 10 To keep your appliance working effi- ciently for a long time, it is important 16.3 Tips on appliance care to clean and maintain it carefully. Follow the tips on appliance care to 16.1 Cleaning the tub make sure your appliance functions... -
Page 38: Filter System
en Cleaning and servicing To ensure optimum cleaning perform- Pour the machine cleaner into the ance, the programme doses the de- detergent dispenser until it is filled tergents independently of each an- completely. other during the relevant cleaning Do not place any additional ma- phase. -
Page 39: Cleaning Spray Arms
Cleaning and servicing en Turn the coarse filter anticlockwise Carefully clean the rim of dirt and remove the filter system . between the coarse and the fine fil- ter. Check that no foreign objects ‒ Re-assemble the filter system. fall into the sump. Make sure that the locking catches on the coarse filter click into posi- tion. - Page 40 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
-
Page 41: Troubleshooting
Troubleshooting en 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 42 en Troubleshooting Fault Cause and troubleshooting Appliance door opens Use size 4X30 bolts to adjust the door gap. ▶ too wide at the end of The bolts are included in the scope of supply. the programme. If you use bolts that are too long, this can deactiv- ate the function of automatic door opening.
- Page 43 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Clean the filter. alternately or indicator Re-insert the filter in the supply hose. for water supply lights Screw the water connection back on. Check the water connection for leaks. Restore the power supply. Switch the appliance on.
- Page 44 en Troubleshooting Fault Cause and troubleshooting A different error code A technical fault is present. appears in the display Press window. Unplug the appliance or switch off the fuse. Wait at least 2 minutes. E:01-00 to E:90-10 Insert the mains plug of the appliance in a socket or switch on the fuse.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Tableware is not dry. Activate Extra Dry. ▶ Tableware removed too early or drying process not yet ended. Wait until the programme ends. Only remove tableware 30 minutes after the pro- gramme has ended. Rinse aid used has a limited drying performance. Use a name-brand rinse aid.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Clean the filters. ▶ tableware. → "Cleaning filters", Page 38 Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 38 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Detergent residue in Washing effect and dissolving performance are re- the appliance duced after a prolonged storage time or detergent is very lumpy. Change your detergent. ▶ Water marks on Due to laws of physics droplet formation on plastic plastic parts.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Stubborn white coat- Increase the amount of detergent used or change ▶ ings are present on Detergent → Page 27. tableware, inside the Washing programme selected too weak. appliance or the door. Select a more intensive washing programme. ▶...
- Page 49 Troubleshooting en Fault Cause and troubleshooting Coloured deposits The formation of films is due to ingredients of food (yellow, orange, remnants and tap water (limescale) "soaplike". brown) that are easy Check the setting of the water softening system. to remove are present → "Setting the water softening system", Page 24 inside the appliance Add special salt.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Removable streaks Only remove large remnants of food and do not ▶ are present on prerinse tableware. glasses, glassware with a metallic appear- ance and cutlery. Irreversible clouding Glasses are not dishwasher-proof, only suitable for of glassware.
- Page 51 Troubleshooting en Fault Cause and troubleshooting Excessive formation of Detergent or appliance care product used causes ex- foam occurs. cessive foaming. Change the brand of detergent. ▶ Special salt refill indic- Insufficient special salt. ator lights up. Add Special salt → Page 24. ▶...
- Page 52 en Troubleshooting Fault Cause and troubleshooting Appliance does not Check whether the mains cable is properly inserted start. in the socket and on the rear of the appliance. Appliance door is not closed properly. Close the appliance door. ▶ Programme starts You did not wait until programme ended.
- Page 53 Troubleshooting en Fault Cause and troubleshooting Appliance door can- When closed, the appliance door, its decor or at- not be closed. tached parts should not knock against adjacent cabinets or the worktop. Lid on the detergent Detergent dispenser or lid are blocked by sticky deter- dispenser cannot be gent residue.
-
Page 54: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 17.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 55: Protect Appliance From Frost
Customer Service en 18.2 Protect appliance from 18.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 56: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. -
Page 57: Technical Specifications
This licence information can be documents on the product page for downloaded via our home page your appliance. www.vzug.com. Alternatively, you can request relevant information from info@vzug.com or V-ZUG AG, Indus- triestr. 66, CH-6301 Zug. Only applies to countries in the European Economic Area... - Page 58 en Declaration of Conformity 2.4 GHz band (2400–2483.5 MHz): 5 GHz band (5150–5350 MHz + Max. 100 mW 5470–5725 MHz): Max. 100 mW UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only.
- Page 60 Troubleshooting *1123440-01* 1123440-01 V-ZUG AG, Industriestrasse 66, CH-6302 Zug *9001812168* Tel. +41 58 767 67 67, Fax +41 58 767 61 61 9001812168 info@vzug.com, www.vzug.com (021122) 442 V5 Service-Center: Tel. 0800 850 850...
