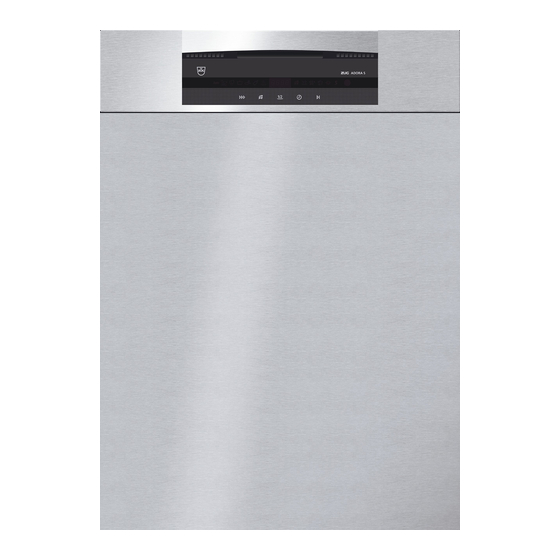

V-ZUG Adora S Operating Instructions Manual

Integrated, design-integrated, fully integrated
Hide thumbs Also See for Adora S:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
Operating instructions
Adora S integrated, design-integrated, fully
integrated
Dishwasher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adora S and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG Adora S

Summary of Contents for V-ZUG Adora S

  • Page 1 Operating instructions Adora S integrated, design-integrated, fully integrated Dishwasher...
  • Page 2 III for full isolation, an horizontally in the basket. isolating device must be in- corporated into the perman- ▪ CAUTION: Do not drop or ently installed electrical in- insert knives, forks or other © V-ZUG Ltd, CH-6301 Zug, 2017...
  • Page 3 1 Safety precautions sharp items in the opening Correct use of the door lock. ▪ Any repairs, modifications or manipula- tions to the appliance, especially any ▪ No detergent must enter the electrically live parts, may only be car- opening of the door lock. ried out by the manufacturer, its Cus- This can cause the door tomer Services or a similarly qualified...
  • Page 4 1 Safety precautions Transport and Using for the first time installation The appliance must be in- stalled and connected to the Front electricity supply by a quali- fied fitter/electrician in ac- cordance with the separate installation instructions. Before operating the newly installed appli- ance for the first time, the following steps Do not tilt more than 90°...
  • Page 5 1 Safety precautions Notes on using the operating instructions Graphical operating instructions can be downloaded on the internet from www.vzug.ch. Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appli- ance or fittings! Validity The product family (model number) corres-...

  • Page 6: Table Of Contents

    Contents Error messages.......... 30 Safety precautions  2 Other possible problems...... 32 Appliance description  7 Unsatisfactory washing results.... 33 Construction............. 7 In the event of a power failure.... 34 Operating and display elements.... 8 Accessories and spare parts  34 Programme overview  9 Technical data  36 Programme ............ 9 Product fiche.......... 37 Additional functions ........ 9 Consumption data ........ 38...

  • Page 7: Appliance Description

    Appliance description Construction Baskets Spray arms Cutlery basket Rinse agent reservoir Operating and display elements * Quick operating instructions Detergent dispenser Salt reservoir Filter system «Small» cutlery basket * Integrated appliances (operating elements are located on the outside of the appliance door): Door handle Operating and display elements Fully integrated and design integrated appliances...

  • Page 8: Operating And Display Elements

    2 Appliance description Operating and display elements Integrated appliances: Fully integrated and design integrated appliances: Buttons Programme symbols Additional function sym- bols/Indicator symbols Programme selec- Automatic Energy saving tion Eco programme Quick wash Partial load Partial load Glass care Rinse agent refill indicator Delayed start Intensive...

  • Page 9: Programme Overview Programme

    3 Programme overview Programme overview Programme Programme time, water consumption and energy consumption can be reduced by selecting additional functions. Eco programme: The most efficient programme in terms of water and energy consumption for normally dirty dishes (declaration programme). Automatic: Optimum cleaning with minimal water and energy consumption. Not for burnt-on or dried leftovers.

  • Page 10: Operation

    4 Operation Operation Preparing the appliance ▸ Remove any coarse or hard pieces of food or foreign objects (such as toothpicks) left on the dishes. ▸ Load the baskets. After loading, check that the spray arms can turn freely. Dish washing tips General notes ▪...

  • Page 11: Loading Tips For The Upper Basket

    4 Operation Loading tips for the upper basket ▸ Arrange smaller items such as saucers, glasses, cups and dishes. ▸ If using the fold-down racks 1, stagger the items. ▸ Rest glasses on the fold-down glass holder Glass holder Particularly suitable for tall glasses. ▸...
  • Page 12 4 Operation Easy prongs For placing drinking glasses, baby bottles, vases and carafes anywhere in the basket. ▸ Put easy prong 1 over basket prongs. ▸ Use 2 easy prongs for wider vessels. Racks The racks 1 can also be used as glass hold- ers.

  • Page 13: Loading Tips For The Lower Basket

    4 Operation Adjusting the upper basket The height of the upper basket can be adjusted by around 2–4 cm (depending on model). It can be inclined in various ways. ▸ To raise: Hold the upper basket at the sides by the grips 1 and raise it into the position required.
  • Page 14 4 Operation Fold-down tines For a larger area for loading e.g. large plates, pans, dishes or a number of cups and glasses. Cooking trays can be placed between the prongs. Use easy prongs for greater stability. ▸ Pull up the locking grip 1 at the side. ▸...
  • Page 15 4 Operation Cleaning baking and steaming trays The upper basket has to be removed for lar- ger trays. ▸ Slide the upper basket out as far as pos- sible. ▸ Remove the basket safety lock 2 by push- ing it upwards. ▸...
  • Page 16 4 Operation Cutlery basket To avoid injury, place knives and cutlery with sharp edges or points into the cutlery basket in such a way that they do not stick out (points facing downwards). Do not drop or insert knives, forks or other sharp items in the opening of the door lock.

  • Page 17: Detergent

    4 Operation Detergent Choice of detergent Never use washing-up liquid. Heavy foaming can cause malfunctions. Strictly observe the dosage instructions printed on the packaging and contact the detergent manufacturer if you have any questions. Using too high or low a dosage can cause damage to the appliance. ▸...
  • Page 18 4 Operation Adding the detergent No detergent must enter the opening of the door lock. This can cause the door lock to malfunction. Powder ▸ Open the detergent dispenser by pushing the release catch in the direction of the ar- row.

  • Page 19: Selecting A Programme

    4 Operation Selecting a programme ▸ Press the button repeatedly until the required pro- gramme symbol flashes. ▸ Select any additional function(s), if required. ▸ Close the appliance door. Integrated appliances: The programme starts in 15 seconds. Fully integrated and design integrated appliances: The programme starts im- mediately.

  • Page 20: Delayed Start

    4 Operation Delayed start The delayed start allows you to wash during off-peak hours (e.g. at off-peak electricity rates). It can be set within 15 seconds of selecting a programme. A delayed start of between 1 and 24 hours can be set. Setting ▸...

  • Page 21: Interrupting A Programme

    4 Operation Interrupting a programme The dishes and water may be hot. Scalding hazard! ▸ Integrated appliances: First press the button. The programme is interrupted for 5 seconds. ▸ Carefully open the appliance door. The programme symbol flashes. At higher water temperatures, noise from the pump switching on and off up to 5 times with short pauses in between may be heard after the appliance door is closed.

  • Page 22: Operation With The Childproof Lock Activated

    4 Operation 4.10 Operation with the childproof lock activated The childproof lock must be overridden each time before selecting the programme. ▸ Integrated appliances: Close the appliance door. ▸ Fully integrated and design integrated appliances: Open the appliance door. In the display appears: ▸...

  • Page 23: User Settings Overview Of User Settings

    5 User settings User settings Overview of user settings Hold the button depressed for 5 seconds Off Acoustic signal * Low ** High Off ** All in 1 26–30 °fH ** 15–16 °dH ** Water hardness 0–5 °fH 0–3 °dH 6–10 °fH 4–6 °dH 46–65 °dH...

  • Page 24: Acoustic Signal

    5 User settings If no button is pressed within the next 15 seconds, the user settings are saved and the dis- play goes out. Acoustic signal Only present on fully and design-integrated appliances. There are three settings for the acoustic Factory setting: signal.

  • Page 25: Rinse Agent Dosage

    5 User settings Rinse agent dosage Factory setting: The rinse agent dosage is automatically adjusted to the load and the water hard- Possible settings: ness. If the drying result is unsatisfact- ▪ Automatic ory, the dosage can be set manually to ▪...

  • Page 26: Automatic Door Opener

    5 User settings 5.12 Automatic door opener The appliance door is automatically Factory setting: opened slightly during drying and final Possible settings: drying to save energy. ▪ If the automatic door opener is switched ▪ off, the programme is 10 minutes longer. 5.13 Temperature unit The unit of temperature can be set to de-...

  • Page 27: Care And Maintenance Cleaning The Interior And Exterior

    6 Care and maintenance Care and maintenance Cleaning the interior and exterior Cleaning the interior Using the correct dosage of detergent will automatically clean the interior of the appliance. The appliance should be additionally cleaned twice a year with dishwasher cleaner. ▸...

  • Page 28: Cleaning The Filter System

    6 Care and maintenance Cleaning the filter system Only use soft materials for cleaning beneath the filter system. Never use metal objects. An incorrectly assembled filter system can cause the appliance to mal- function. ▸ Open the appliance door and pull out the lower basket. ▸...

  • Page 29: Filling With Rinse Agent

    6 Care and maintenance Filling with rinse agent Never put detergent in the rinse agent reservoir. Wipe off any spilt rinse agent. Foaming may occur. Follow the manufacturer’s safety instructions and warnings. Rinse agent prevents water spotting after final rinsing (rinsing with rinse agent). When the supply of rinse agent is exhausted, the refill indicator flashes.

  • Page 30: Trouble-Shooting

    7 Trouble-shooting Trouble-shooting You may be able to eliminate the following problems yourself. If not, write down the complete error message and the serial number (FN) on the identification plate of your appliance and call Customer Services. Error messages ▪ In the event of a malfunction, an acoustic signal is emitted for 1 minute (depending on the model).
  • Page 31 7 Trouble-shooting Display Possible cause Solution ▪ Various situations can ▸ Cancel the error message by pressing lead to an «F» message. ternate button. If the error message persists: ▸ Switch the power supply off for about 1 minute. ▸ Switch the power supply back on again.

  • Page 32: Other Possible Problems

    7 Trouble-shooting Other possible problems Problem Possible cause Solution The appliance will ▪ There could be several reasons ▸ Close the appliance door. not start. for this. ▸ Insert plug into mains socket. ▸ Check the fuse or circuit breaker. ▸...

  • Page 33: Unsatisfactory Washing Results

    7 Trouble-shooting Unsatisfactory washing results Problem Solution The dishes are not ▸ Select a more powerful programme. clean. ▸ Load the baskets differently, avoiding blind spots. ▸ Clean the filter system and re-insert correctly. ▸ Check to see whether the spray arms are clogged or dirty. ▸...

  • Page 34: In The Event Of A Power Failure

    8 Accessories and spare parts In the event of a power failure ▪ Any programme that is running will be interrupted. After the cause of the power supply fail- ure has been resolved, the programme is resumed. ▪ The fault indication system is interrupted. Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts.
  • Page 35 8 Accessories and spare parts Vario cutlery basket insert Lower basket for glasses Racks Set of 4 easy prongs Spare parts Filter system...

  • Page 36: Technical Data

    9 Technical data Technical data Dimensions SMS 55 SMS 55 EURO 60 EURO 60 Extra height Extra height Appliance height 762 mm 827 mm 762 mm 827 mm (incl. slide plate 3 mm) Appliance height – 848–893 mm 783–828 mm 848–893 mm (incl. adjustable plinth) Appliance width 546 mm 546 mm 596 mm 596 mm...

  • Page 37: Product Fiche

    9 Technical data Product fiche In accordance with regulation (EU) No. 1059/2010 Brand V-ZUG Ltd Model identifier (the first 5 alphanumerics of the serial 41049 41050 number (FN)) 41065 41062 41071 41066 41072 41079 41073 41080 41074 41081 Rated capacity in standard place settings for the stand-...

  • Page 38: Consumption Data

    9 Technical data Consumption data Pre-rinsing Drying Cleaning Duration Intermediate rinsing Water Rinsing with rinse agent Energy The stated programme times and consumption values serve as a guide. The values can also vary according to the selection of additional functions, the load, the degree of soiling of the load, the type and amount of cleaner, the water inlet temperature, the electrical connection and specific programme sequences (e.g.
  • Page 39 10 Disposal Disposal 10.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 10.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 40 2-year warranty period. You will require the agreement serial number (FN) and appliance designa- V-ZUG will be happy to help you with any tion to register your appliance or to contact general administrative or technical queries, V-ZUG about a fault. You will find them on to accept your orders for accessories and the identification plate of your appliance.
