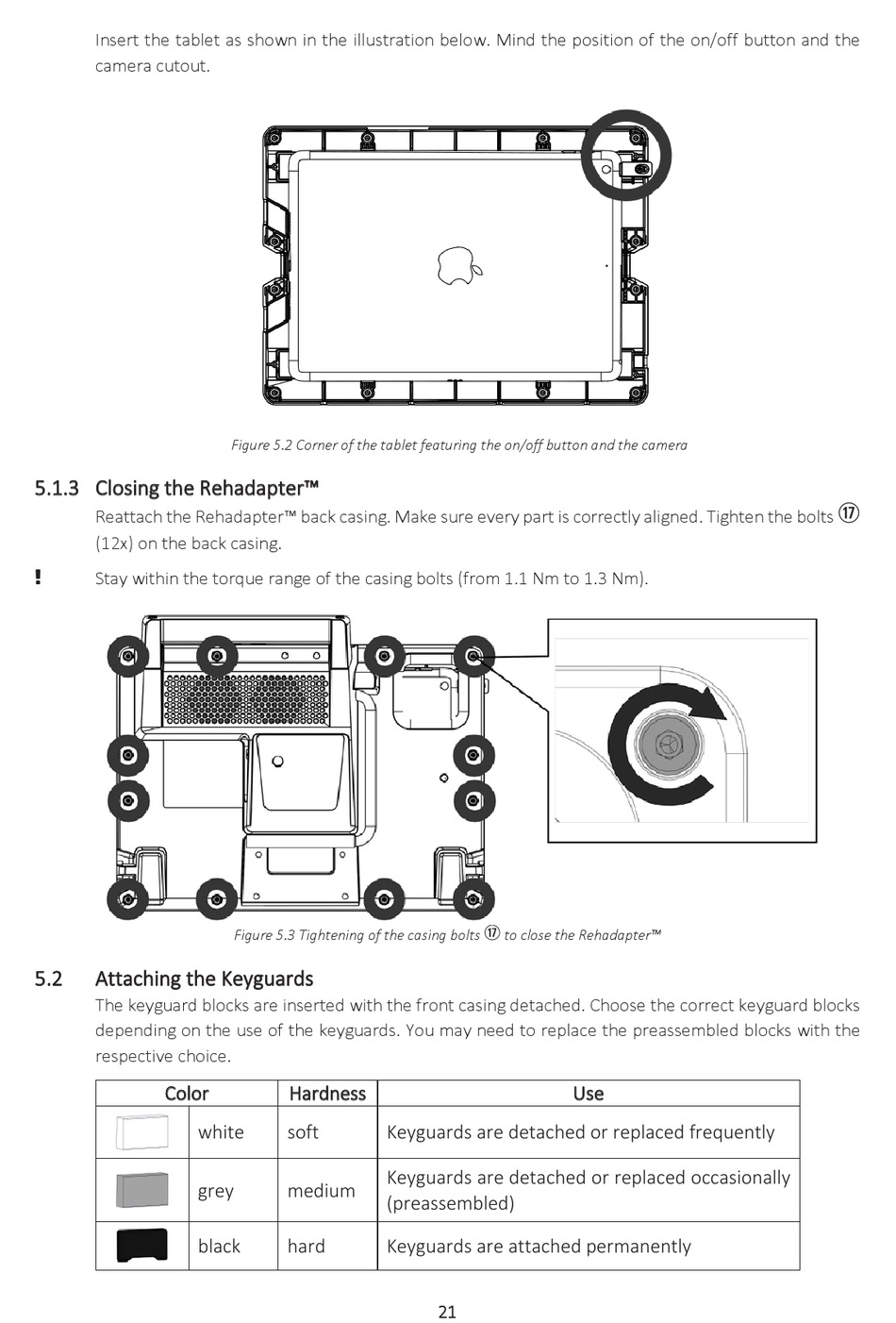

Insert the tablet as shown in the illustration below. Mind the position of the on/off button and the
camera cutout.
5 5 . . 1 1 . . 3 3 C C l l o o s s i i n n g g t t h h e e R R e e h h a a d d a a p p t t e e r r ™ ™
Reattach the Rehadapter™ back casing. Make sure every part is correctly aligned. Tighten the bolts
(12x) on the back casing.
Stay within the torque range of the casing bolts (from 1.1 Nm to 1.3 Nm).

5 5 . . 2 2 A A t t t t a a c c h h i i n n g g t t h h e e K K e e y y g g u u a a r r d d s s
The keyguard blocks are inserted with the front casing detached. Choose the correct keyguard blocks
depending on the use of the keyguards. You may need to replace the preassembled blocks with the
respective choice.
C C o o l l o o r r
white
grey
black
Figure 5.2 Corner of the tablet featuring the on/off button and the camera
Figure 5.3 Tightening of the casing bolts
H H a a r r d d n n e e s s s s
soft Keyguards are detached or replaced frequently
Keyguards are detached or replaced occasionally
medium
(preassembled)
hard Keyguards are attached permanently
 to close the Rehadapter™
U U s s e e
2 2 1 1

