3 3 O O v v e e r r v v i i e e w w o o f f t t h h e e R R e e h h a a d d a a p p t t e e r r ™ ™
3 3 . . 1 1 R R e e h h a a d d a a p p t t e e r r ™ ™ O O v v e e r r v v i i e e w w
1
12
16
21
22

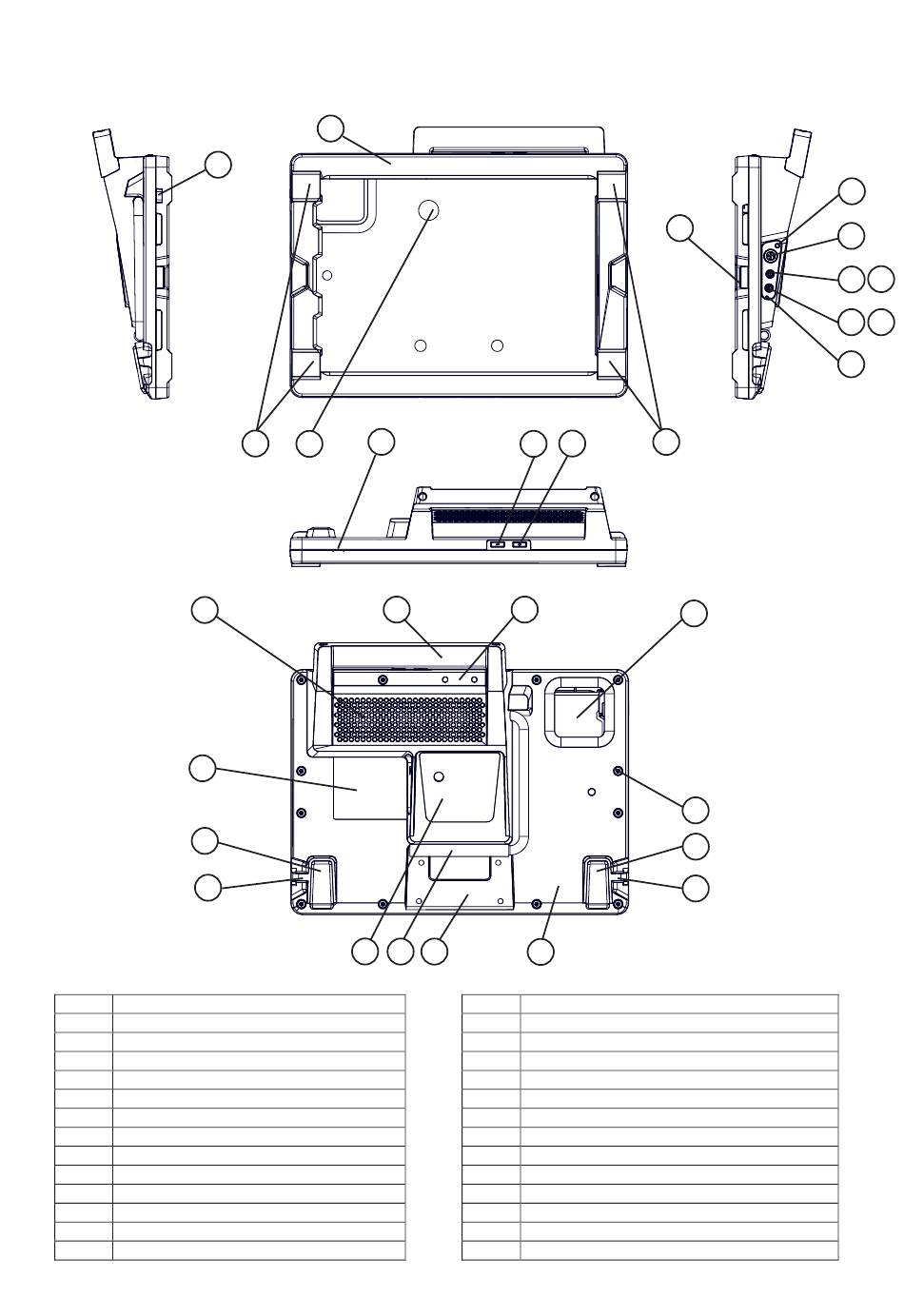

Figure 3.1 Rehadapter™ overview
P P o o s s . . D D e e s s c c r r i i p p t t i i o o n n
1 Tablet On/Off button
2 Cutout for charging port tablet
3 Front casing
4 Status indicator LED
5 Magnetic charging port
6A 3.5 mm switch connector – Space
6B 3.5 mm switch connector – Enter
7 Reset
8 Keyguard click system
9 Kickstand fixation bolt
10 Volume Down (-)
11 Volume Up (+)
12 Speaker
3
24
8
9
13
18 19
11
10
14
20
23
P P o o s s . . D D e e s s c c r r i i p p t t i i o o n n
13 Handle
14 TOP accessory anchor point
15 Cutout for the camera of the tablet
16 Device identification label
17 Casing bolts (12x)
18 Adapter plate for Rehadapt UDS
19 Kickstand
20 BOTTOM accessory anchor point
21 Rubber feet
22 Eyelets for shoulder strap
23 Back casing
24 Optional cutouts for volume buttons of the tablet
1 1 3 3
2
8
15
17
21
22
4
5
A
6
6 B
7
