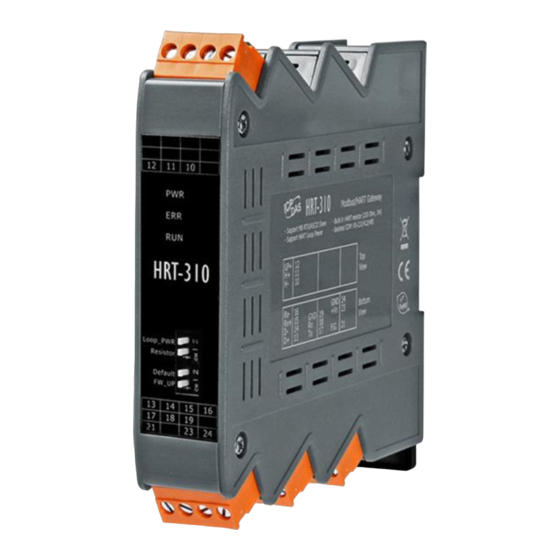

Modbus RTU to HART Gateway
Product Website:
https://www.icpdas-usa.com/hrt_310
Introduction
The HRT-310 is designed to be used as a master device of HART protocol, allowing the
Modbus to connect HART devices and converting the HART protocol to Modbus RTU / ASCII
protocol. In addition, the gateway is equipped with a more powerful built-in resistor, allowing
connecting up to 15 HART devices without having to connect an additional external resistor.
The HRT-310 is designed for users to integrate their HART devices into Modbus network easily
and quickly.
What's In the Box
In addition to this guide, the package includes the following items:
HRT-310
HRT-310 Modbus RTU to HART Gateway
ICP DAS USA, Inc. |
www.icpdas-usa.com
HRT-310
Quick Start Guide
Figure1 : HRT-310 Application Structure
CA-0910
- QuickStart (Aug/2017)
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
Software CD
Screw Driver
(1C016)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA HRT-310
Summary of Contents for ICP DAS USA HRT-310
- Page 1 Introduction The HRT-310 is designed to be used as a master device of HART protocol, allowing the Modbus to connect HART devices and converting the HART protocol to Modbus RTU / ASCII protocol. In addition, the gateway is equipped with a more powerful built-in resistor, allowing connecting up to 15 HART devices without having to connect an additional external resistor.
- Page 2 Transmit Data+ of RS-422 Transmit Data- of RS-422 Data+ of RS-485 Data- of RS-485 HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 3 Module received the burst frame from HART device. Module in normal operation. Firmware has not been loaded yet. HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 4 RS-232 Wiring HART network wiring HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 5 (2) Execute the “setup.exe” file to install the “HG_Tool” utility. (3) After finishing the installation of the HG_Tool, users can run the utility. (refer to the path in the below figure) HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 6 5: Execute the HG_Tool utility. Step 6: Set the communication settings between PC and HRT-310. When the DIP switch of the “Default” to be “ON” position, the HRT-310 will adopt the below comport communication settings. [1] Protocol: MB RTU [2] Net ID: 1...
- Page 7 Note The detailed setting steps, please refer to the Q01 ~ Q03 of FAQ in the manual. HRT-310 Modbus RTU to HART Gateway - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
