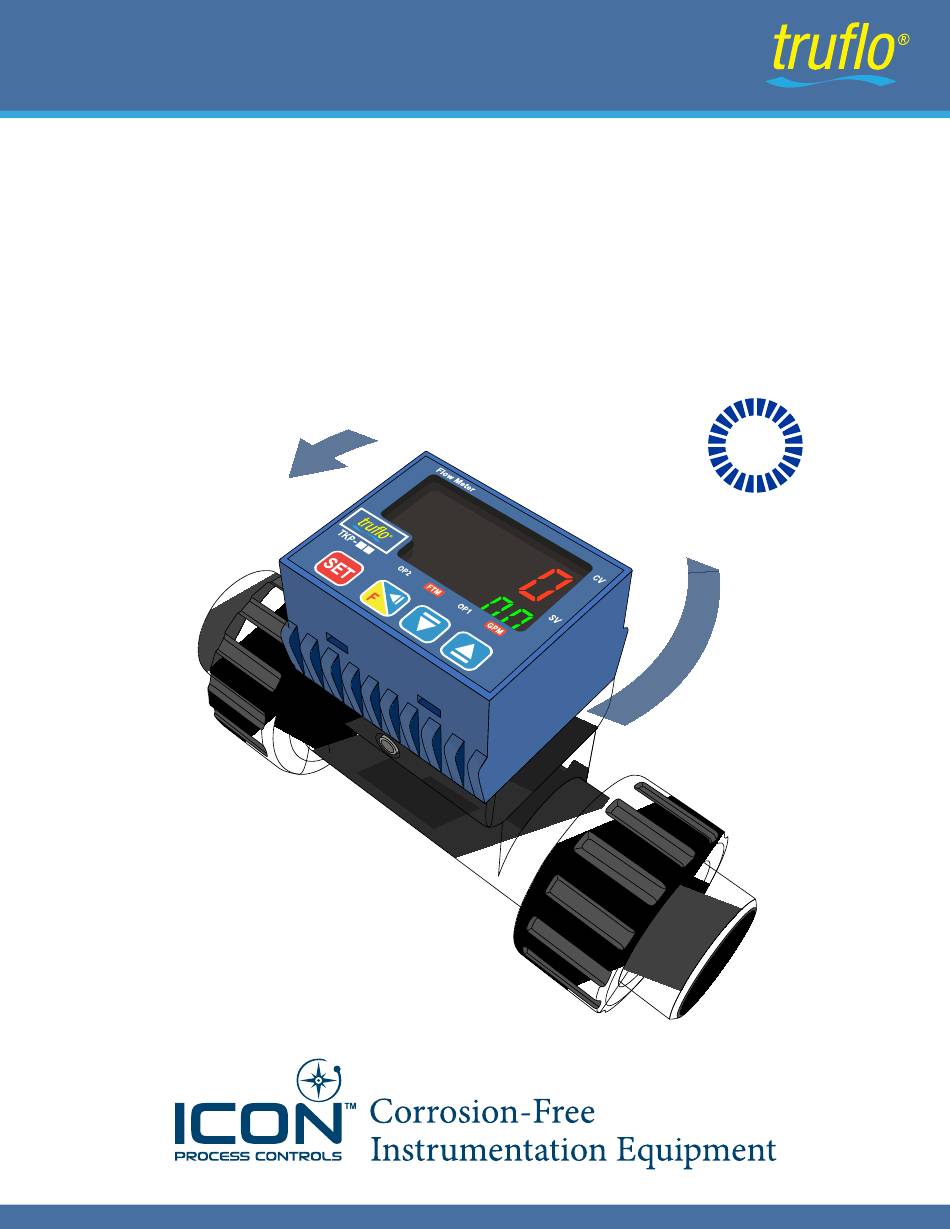

- Page 1 TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter TKP | TKM SERIES Paddle Wheel Flow Meter Quick Start Operating Manual 360° www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
-
Page 2: Table Of Contents
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Table of Contents Safety Information Technical Specifications Exploded View Wiring Diagram Getting Started NPN Pulse Output Pulse Control Function Programming Terms Relay Settings K-Factors for TK Flow Rates Pressure vs. Temperature Psi H O | Non-Shock Procedure to Rotate Display Dimensions... -
Page 3: Safety Information
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Safety Information 1. De-pressurize and Vent System Prior to Installation or Removal. 2. Confirm Chemical Compatibility Before Use. 3. DO NOT exceed Maximum Temperature or Pressure Specifications. 4. ALWAYS Wear Safety Goggles or Face-shield During Installation and/or Service. 5. -
Page 4: Technical Specifications
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Technical Specifications General Operating Range 0.3 to 33 ft/s 0.1 to 10 m/s Pipe Size Range ½ to 4" DN15 to DN100 Linearity ±0.5% of F.S @ 25°C | 77°F Repeatability ±0.5% of F.S @ 25°C | 77°F Fluid Liquid - Viscosity Range <.5-20 centistokes... -
Page 5: Exploded View
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Exploded View 1. Polycarbonate Cover 2. Flow Controller 3. Hall Pickup Sensor 4. Redesigned Rotor Assembly 5. Body | PVC | PP | PVDF * 6. Re-inforced Inserts 7. Shearpro Contoured Rotor 8. -
Page 6: Getting Started
(Quick Start) In-Line Paddle Wheel Flow Meter Getting Started STEPS DISPLAY OPERATION 24V DC POWER ONLY Step-1 Icon Process Controls Power On Flow Meter with DC Power Home Screen Display will Show Press Key 3 sec 0 Totalizer (Top RED) (HOLD) -
Page 7: Pulse Control Function
Pulse Control Function OP1 } Flow Rate Pulse Output OP2 } Flow Totalizer Pulse Output STEPS DISPLAY OPERATION Step-1 Icon Process Controls Power On Flow Meter With 10-30 V DC Home Screen 0 Flow Totalizer Press Key 3 sec (HOLD) 0.0 Flow Rate... -
Page 8: Relay Settings
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Relay Settings ALT NO. DESCRIPTION ALt = 0 CV > SV Relay ON : CV < SV - d Relay OFF ALt = 1 CV < SV Relay ON : CV > SV + d Relay OFF SV + d >... -
Page 9: Procedure To Rotate Display
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Procedure to Rotate Display Flow Meter & Transmitter Flow Meter & Transmitter Using an allen key loosen the 2 screws located on either side of the display Pull the screws | Do Not Remove Lift the Display Tighten the Allen screws | Snug Tight Rotate Display - 90 Degrees... -
Page 10: Installation Positions
TKM SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Installation Positions CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT Please Ensure Full Pipe TK Series can be installed in a horizontal or vertical direction. Please ensure enough length of straight pipe to avoid turbulence that can effect readings. Note: Min 10x Pipe Diameters Upstream 3x Pipe Diameters Downstream. -
Page 11: Warranty, Returns And Limitations
Icon Process Controls Ltd for a period of one years from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is...
